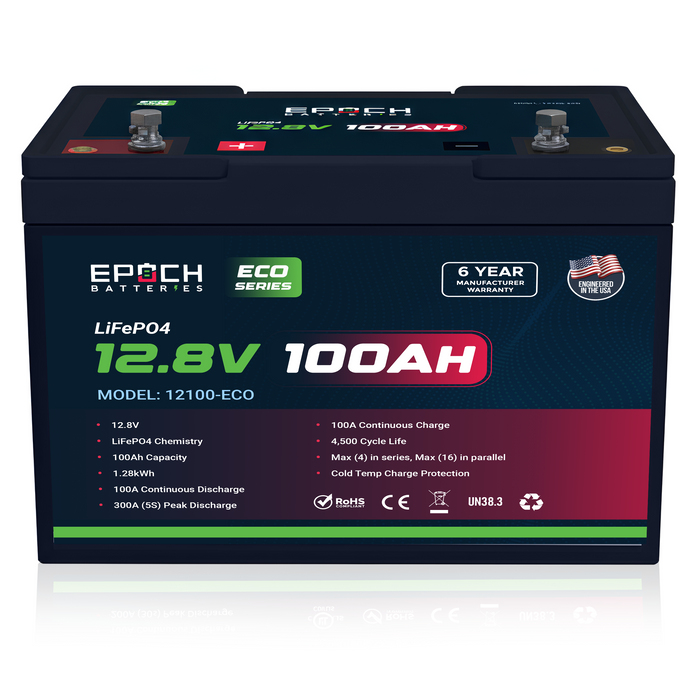

Epoch Batteries 12V 100Ah Eco Series 12100-ECO | LiFePO4 Battery (1.28kWh) | Group 24

Specifications

Model / SKU: 12100-ECO

Series: Eco Series

Battery type: Deep-cycle LiFePO4 battery

Battery group size: BCI Group 24

Chemistry: LiFePO4 / lithium iron phosphate

Cell type: Prismatic LiFePO4

Cell configuration: 4S1P

Bluetooth: No — use an external battery monitor

Self-heating: No

Low-temperature charge protection: Yes — charging blocked below 0°C / 32°F

Cycle life: 4,500+ cycles

Warranty: 6-year manufacturer warranty; register within 90 days of purchase for full coverage

Nominal voltage: 12.8V

Nominal capacity: 100Ah @ 0.2C

Stored energy: 1.28kWh / 1,280Wh (nominal)

Runtime planning energy: About 1,024Wh (80% of nominal)

Estimated runtime: About 20.5 h at 50W, 10.2 h at 100W, 4.1 h at 250W, 2.0 h at 500W, 1.6 h at 50A (640W) (DC loads at 25°C, new fully charged battery)

Operating voltage range: 10.0V – 14.6V

Maximum charge voltage: 14.6V

Max continuous discharge: 100A

Peak discharge: 300A for up to 5 seconds

Max continuous charge current: 100A, all charging sources combined

Recommended charge current: Up to 50A (0.5C, 50% of capacity)

Inverter sizing: Inverter DC input current within 100A (about 1,280W at 12.8V); usable AC output is lower

Deep-cycle load warning: Do not design continuous loads above the 100A per-battery continuous limit; 300A is a 5-second peak only

Series connections: Max 4 batteries in series (24V, 36V, or 48V system classes)

Parallel connections: Max 16 batteries in parallel

Maximum 12V parallel bank: 1,600Ah / 20.48kWh with 16 batteries in parallel

Maximum configuration: 4S16P (64 matched batteries): 51.2V nominal, 1,600Ah, 81.92kWh

Bank batteries: Matched 12100-ECO batteries of the same age, condition, and state of charge; fully charge each before connecting it into a bank

Charge temperature range: 0°C to 55°C / 32°F to 131°F

Discharge temperature range: -20°C to 60°C / -4°F to 140°F

Recommended storage temperature: 0°C to 35°C / 32°F to 95°F

Long-term storage: About 50% state of charge or higher, loads disconnected; check and recharge at least every 3 months

Low-temperature charge protection: Charging blocked below 0°C / 32°F

High-temperature reconnect: 50°C / 122°F

Length: 10¼ in (260 mm)

Width: 6¾ in (171 mm)

Height: 9 in (229 mm)

Overall dimensions: 10¼ in L × 6¾ in W × 9 in H (260 × 171 × 229 mm)

Footprint: BCI Group 24

Weight: 21 lb / 9.5 kg

Terminals: M8 female

Terminal torque: 8–12 Nm (71–106 in-lb)

Case material: ABS and PC blend, UL94-V0 flame rating

IP rating: IP54 per IEC 60529 — dust-protected and splash-resistant; not submersible

Mounting orientation: Upright, unless Epoch documentation for this model allows otherwise

Charger type: 12V LiFePO4-compatible charger, converter, inverter charger, solar controller, or DC-to-DC charger

Compatible charger: Epoch 12V 15A Lithium Battery Charger

Maximum continuous charge: 100A, all charging sources combined

Recommended charge current: Up to 50A for one battery; up to 50% of bank capacity for multi-battery banks

Bulk / absorption voltage: 14.2V – 14.4V

Absorption end condition: When charge current falls to C/20 (5A) or after 15 minutes, whichever comes first

Float voltage: Disabled preferred, or 13.3V – 13.6V

Re-bulk voltage: 13.2V

Equalization: Disabled

Temperature compensation: 0mV/°C (disabled)

BMS high-voltage cutoff: 14.6V

SoC recalibration voltage: 14.6V

Charge temperature: 0°C to 55°C / 32°F to 131°F

Alternator charging: DC-to-DC charger programmed for LiFePO4

Smart BMS: Built in with 20+ safety features

Protection functions: Overcharge, over-discharge, over-current, short-circuit, and high / low temperature disconnects

Overcurrent protection: Install a DC-rated fuse or circuit breaker as close as practical to the battery positive terminal; the BMS is not a substitute

Monitoring: No Bluetooth; use a shunt-based battery monitor for accurate state of charge

Cell certification: UL 1642 (cells)

Thermal runaway testing: UL 9540A (cells)

Battery certification: IEC 62619:2022

Compliance marks: CE, RoHS

Shipping classification: UN 38.3, Class 9 lithium battery shipping classification

In the Box

• 1 x Epoch 12V 100Ah Eco Series LiFePO4 battery (12100-ECO)

12100-ECO Spec Sheet
12100-ECO User Manual
12100-ECO Technical Data Sheet
Epoch LiFePO4 Safety Data Sheet

Epoch Batteries Limited Warranty

Warranty Period
6-year manufacturer warranty; register within 90 days of purchase for full coverage

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
