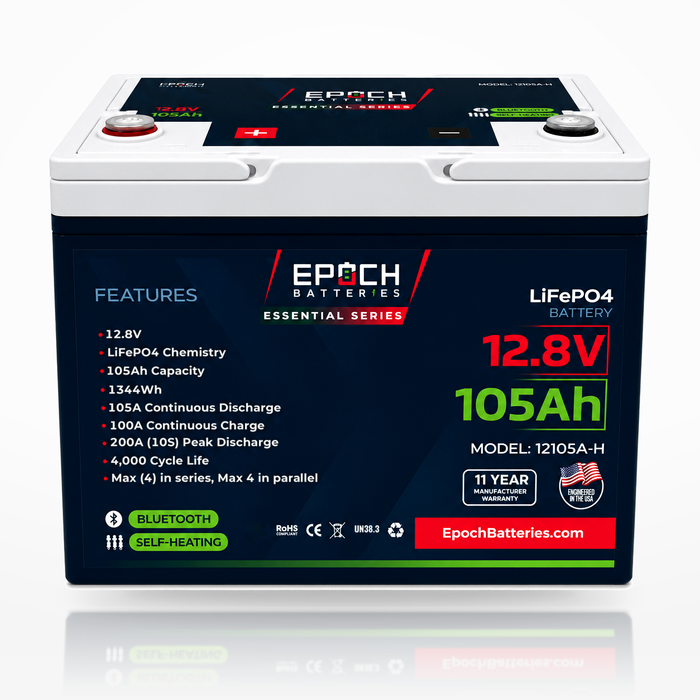

Epoch Batteries 12V 105Ah Essential Series 12105A-H | LiFePO4 Battery (1.34kWh) | Heated, Bluetooth, Group 24

Specifications

Model / SKU: 12105A-H

Series: Essential Series / Epoch Essentials

Battery type: Heated Bluetooth deep-cycle LiFePO4 battery

Group size: BCI Group 24

Chemistry: LiFePO4 / Lithium iron phosphate

Cell type: Prismatic LiFePO4

Cell configuration: 4S1P

Bluetooth: Yes — Epoch Li-Ion app (iOS and Android)

Bluetooth security PIN: Printed on the battery's lid; can be changed in the app (Advanced Settings)

Current sensing: BMS-integrated shunt; 0.2A accuracy on discharge

Internal heating: Yes — for cold-weather charging

Cycle life: 4,000 cycles with ≥80% capacity remaining

Warranty: 11-year limited manufacturer warranty

Nominal voltage: 12.8V

Nominal capacity: 105Ah @ 0.2C

Stored energy (nominal): 1.34kWh (1,344Wh)

Operating voltage range: 10.0V – 14.6V

Maximum charge voltage: 14.6V

Internal resistance: ≤30mΩ

Low-voltage disconnect: 10.0V; reconnect at 12.0V

Max continuous discharge: 105A

Recommended discharge current: 52.5A (0.5C)

Max discharge peak current: 200A for up to 10 seconds

Max continuous charge current: 100A

Recommended charge current: 50A

Short-circuit protection: 600A @ 500µs

Series connections: Max 4 batteries in series, up to 48V

Parallel connections: Max 4 batteries in parallel, up to 420Ah

Maximum configuration: 4S4P

Charge temperature range: −20°C to 55°C / −4°F to 131°F, with heating

Discharge temperature range: −20°C to 60°C / −4°F to 140°F

Recommended storage temperature: 0°C to 35°C / 32°F to 95°F

Low-temperature charge protection: Charging disabled at 0°C / 32°F; resumes automatically at 5°C / 41°F

Heater activation: Charger connected and supplying at least 0.5A; powered by incoming charge current only, never stored battery energy

Heating system: Tested to −20°C / −4°F; rated for external ambient down to −40°C / −40°F

Self-discharge: ≤3% per month

Long-term storage: Charge to about 50% state of charge; check at least every 3 months

Operating altitude: <3,000m / ≈9,840ft

Length: 10.25 in / approx. 26.04 cm

Width: 6.75 in / approx. 17.15 cm

Height: 9.00 in / approx. 22.86 cm

Weight: 22.1 lb / approx. 10.02 kg

Case material: ABS and PC blend, UL94-V0 flame rating

Enclosure protection: IP54 — dust protected, splash resistant; not submersible

Terminal type: M8 female (M8 bolt)

Terminal torque: 8–12 N·m (71–106 in-lb)

Bulk / absorption voltage: 14.2V – 14.4V

Absorption end condition: Charge current ≤ C/20 (5.25A) or 15 minutes, whichever comes first

Float voltage: Disabled (preferred), or 13.3V – 13.6V

Re-bulk voltage: 13.2V

Maximum continuous charge current: 100A (50A recommended)

Temperature compensation: 0mV/°C (off)

Equalization: Disabled

Charger temperature limit setting: 0°C to 55°C / 32°F to 131°F, unless the charger has approved cold-charge logic

BMS high-voltage cutoff: 14.6V

SoC recalibration voltage: 14.6V

Cell-level certifications: UL 1642; IEC 62619:2022

Product: CE; RoHS

Transport: UN 38.3; Class 9 lithium battery shipping classification

Enclosure: IP54 per IEC 60529

In the Box

• 1 x Epoch 12V 105Ah Essential Series LiFePO4 battery (12105A-H)

12105A-H User Manual
12105A-H Technical Data Sheet
12105A-H Spec Sheet
Epoch LiFePO4 Safety Data Sheet

Epoch Batteries Limited Warranty

Warranty Period
11-year limited manufacturer warranty

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
