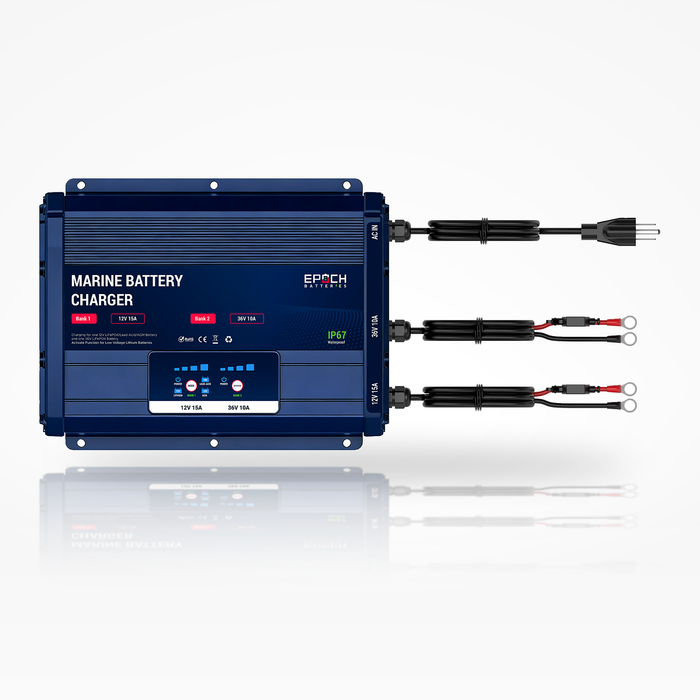

Epoch Batteries 12V & 36V Onboard Marine Lithium Battery Charger CHG-2BAY-12V36V | 2-Bank, 12V 15A + 36V 10A, IP67

Specifications

Brand: Epoch Batteries

Product: 12V & 36V Onboard Marine Lithium Battery Charger

Model / SKU: CHG-2BAY-12V36V

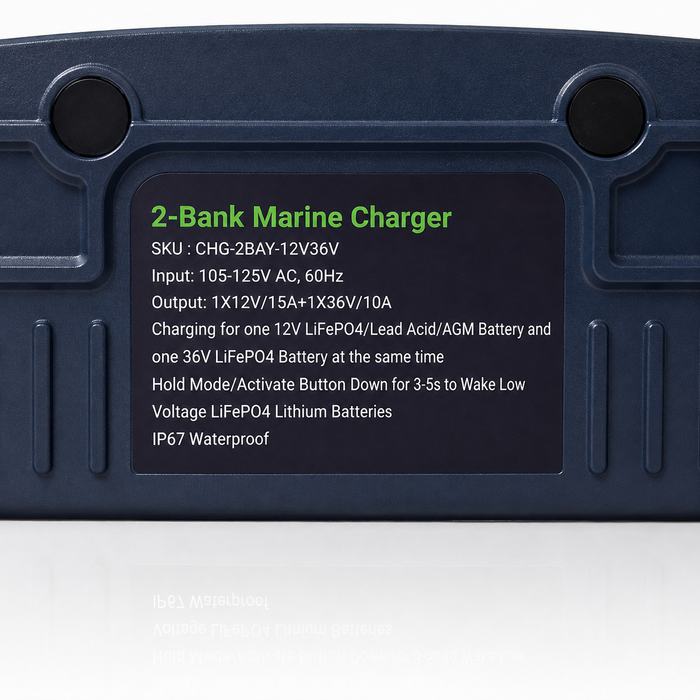

Product type: Two-bank mixed-voltage onboard marine battery charger

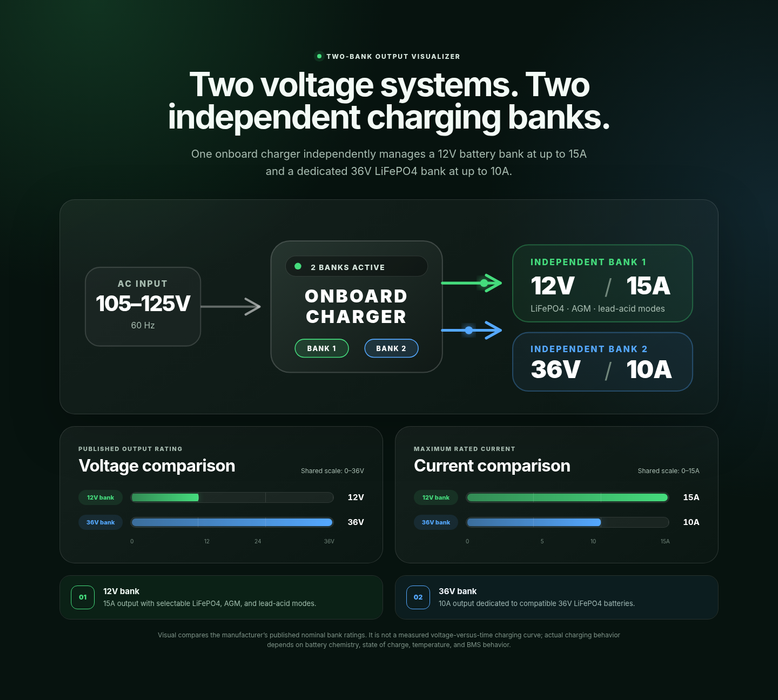

Charging banks: 2 independently operating banks

Input voltage: 105–125VAC

Input frequency: 60Hz

AC connection: Integrated grounded AC cord and plug

Outlet requirement: Correctly grounded 120V-class outlet within the published voltage range

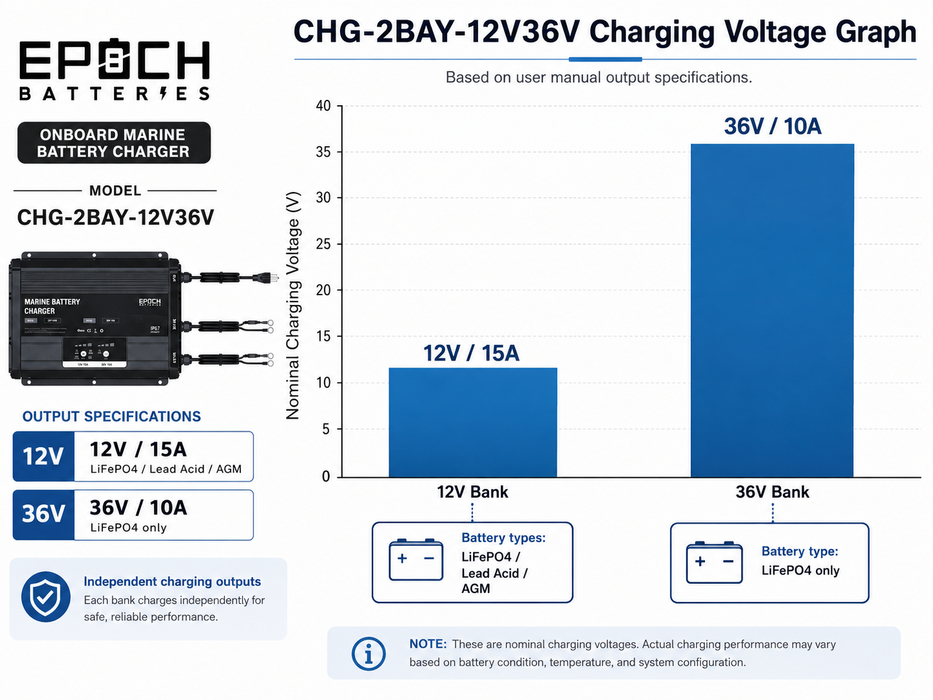

Output: 12V / 15A

Selectable battery modes: LiFePO4, lead-acid, or AGM

Mode selection: Front-panel MODE button

Lithium BMS activation: Hold MODE for approximately 3–5 seconds

Replacement fuse: 20A

Output: 36V / 10A

Battery compatibility: Compatible 36V LiFePO4 battery only

Battery chemistry selection: Dedicated lithium output; no chemistry selection required

Lithium BMS activation: Hold ACTIVATE for approximately 3–5 seconds

Replacement fuse: 15A

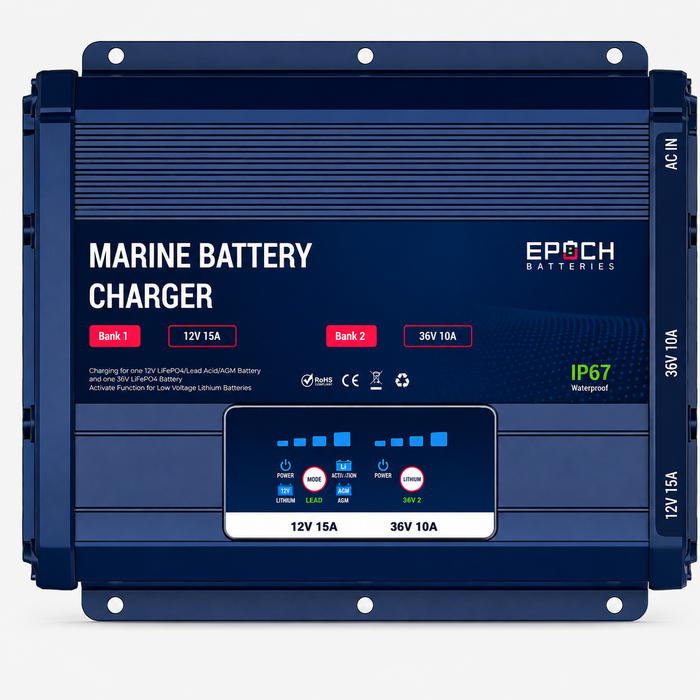

LED information: AC power, 12V battery type, and charge-status indicators

Charging indication: Red

Fully charged indication: Green

Full-charge behavior: Automatically stops charging after the battery reaches full charge

No-load behavior: No normal DC charge output when a battery is not connected

Battery output connections: M8 ring terminals

Polarity identification: Red positive; black negative/chassis

Ingress protection: IP67

Sealing method: Epoxy-filled enclosure

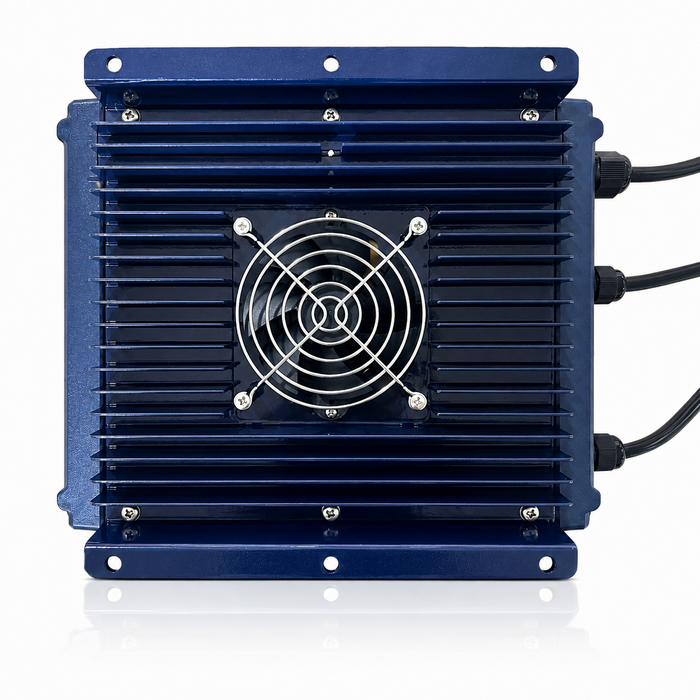

Housing: Aluminum housing with bottom aluminum cooling plate

Cooling: Temperature-controlled waterproof cooling fan

Short-circuit protection: Yes

Reverse-connection protection: Yes

Overcharge protection: Yes

Overtemperature protection: Yes

No-load protection: Yes

Wrong-voltage warning: Protection features do not permit connecting a bank to the wrong battery voltage

Working temperature: -20°C to 40°C / -4°F to 104°F

Nominal working temperature: 25°C / 77°F

Product dimensions: 274 × 245 × 99mm / approximately 10.79 × 9.65 × 3.90 in

Mounting-hole diameter: 6.5mm

Recommended mounting hardware: M6 screws appropriate for the mounting surface

Required clearance: More than 30mm around the charger; do not obstruct cooling surfaces or fan

Mounting orientation: Follow the supplied manual and keep leads, glands, indicators, and fan accessible

12V bank: Use the correct selectable mode for a compatible 12V LiFePO4, lead-acid, or AGM battery

36V bank: Use only with a compatible 36V LiFePO4 battery

Below-freezing charging: Do not charge LiFePO4 below 0°C / 32°F unless the battery has approved heating or manufacturer permission

Series-built 36V banks: Verify manufacturer-approved charging and balancing; this charger is published for a compatible 36V LiFePO4 battery

Other chemistries / voltages: Not supported unless explicitly approved by Epoch and the battery manufacturer

CHG-2BAY-12V36V / CHG-4BAY-12V10A User Manual

Epoch Batteries Limited Warranty

Warranty Period
2-year limited warranty on Epoch-branded chargers (Epoch general warranty terms)

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
