Epoch Batteries 12V to 36V Marine DC-to-DC Charger CHG-DC-36V | Charge on the Run, 36V 10A Output

Specifications

Brand: Epoch Batteries

Product: 12V to 36V Marine DC-to-DC Charger | Charge on the Run

Model / SKU: CHG-DC-36V

Product type: Single-bank, non-isolated marine DC-to-DC battery charger

Charging banks: 1

Supported source systems: Compatible 12V or 24V starter-battery systems

Published DC input range: 13–30VDC

Unsupported source: 36V battery input is not supported

12V start threshold: Above 13.8V

12V stop threshold: Below 13.0V

24V start threshold: Above 26.8V

24V stop threshold: Below 25.2V

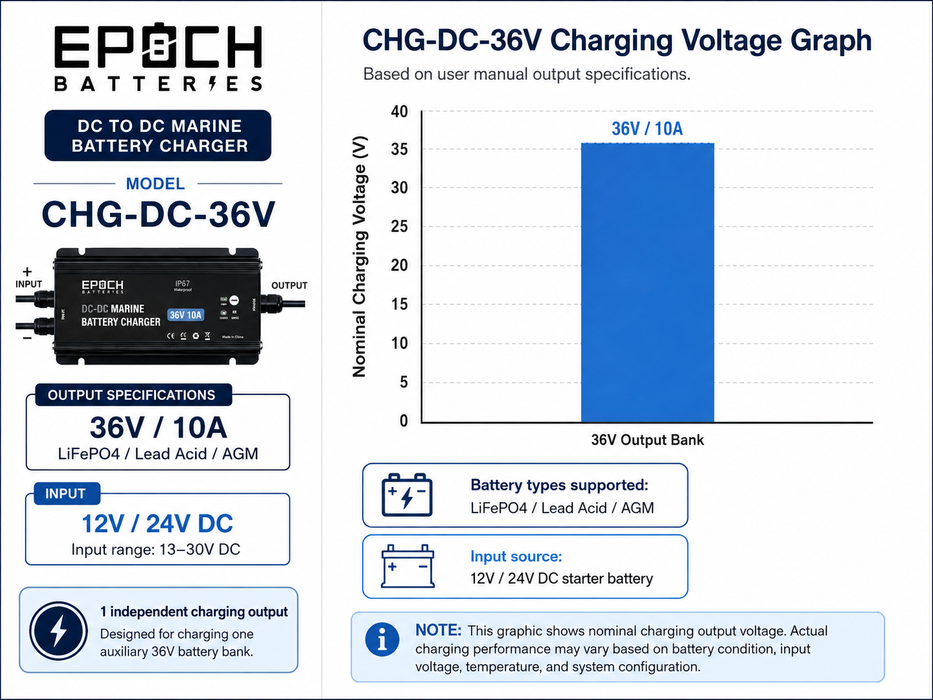

DC output: 36V / 10A

Nominal output power: Approximately 360W based on 36V × 10A; actual conversion performance varies

Output battery: One compatible 36V auxiliary battery

Selectable battery types: 36V LiFePO4, 36V lead-acid, or 36V AGM

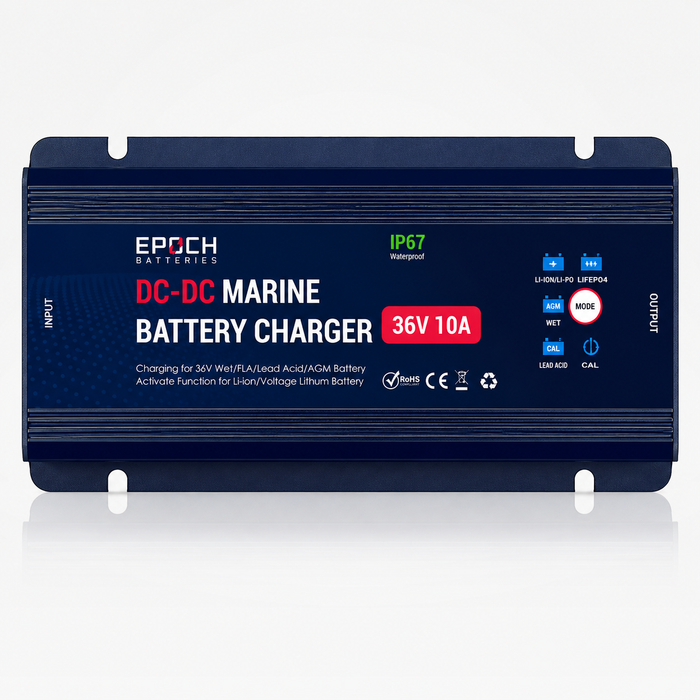

Battery-type control: Front-panel MODE button

Mode-change rule: Complete selection before charging; disconnect output ring terminals before changing battery type

Native series-string guidance: Follow the battery manufacturer's approved charging and balancing method

Automatic source detection: Starts and stops according to the detected 12V or 24V input thresholds

Idle / hibernation: Enters hibernation after approximately 20 minutes at idle while continuing to monitor input voltage

Manual power control: Hold MODE for 6 seconds to turn off; short-press MODE to wake

Lithium activation: Select LiFePO4, then hold MODE for approximately 3 seconds

Normal charge indication: POWER solid green; CHARGING solid red

Full-charge indication: POWER and CHARGING LEDs solid green

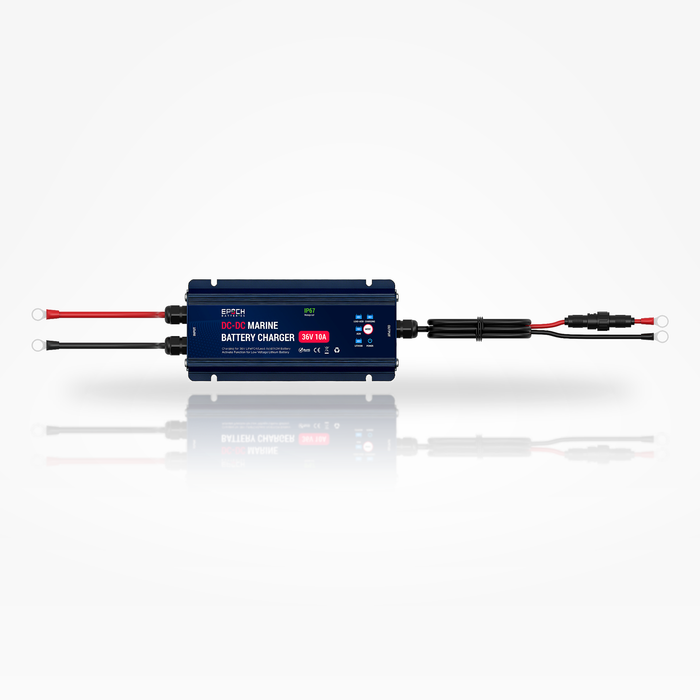

Input connections: Pre-wired ring-terminal leads; red positive and black negative

Output connections: Pre-wired ring-terminal leads; red positive and black negative

Isolation: Non-isolated

Wiring boundary: Red and black leads within the same cable jacket must connect to the same battery

Network requirement: No published NMEA 2000 or communications-network requirement

Replacement fuse: 15A

Short-circuit protection: Yes

Reverse-connection protection: Yes

Overcharge protection: Yes

Overtemperature protection: Yes

Housing: Aluminum housing with bottom aluminum cooling plate

Cooling: Waterproof cooling fan; not fanless

Ingress protection: IP67; enclosure filled with pure epoxy resin

Working temperature: -20°C to 40°C / -4°F to 104°F

Nominal working temperature: 25°C / 77°F

Product dimensions: 250 × 95 × 68mm / approximately 9.84 × 3.74 × 2.68 in

Mounting holes: 6.5mm

Recommended fasteners: M6 screws appropriate for the mounting surface

Required clearance: More than 30mm around the unit; do not block the fan or cooling surfaces

Alternator compatibility: Verify rated alternator output and available current after all existing boat loads

12V-source current: Can be substantial because 36V / 10A equals about 360W before conversion losses

Cold-weather lithium charging: Do not charge below 0°C / 32°F unless the battery has approved heating or manufacturer permission

Ingress caution: Do not expose the plug or ring terminals to rain or snow; do not intentionally submerge

System protection: Use appropriate fusing, conductor sizing, disconnects, grounding, and marine installation practices

CHG-DC-36V / CHG-DC-12V36V User Manual

Epoch Batteries Limited Warranty

Warranty Period
2-year limited warranty on Epoch-branded chargers (Epoch general warranty terms)

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
