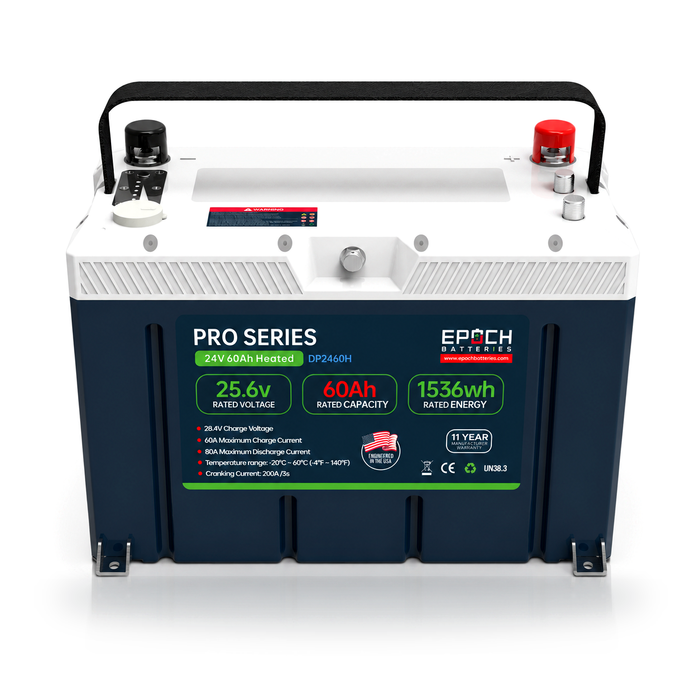

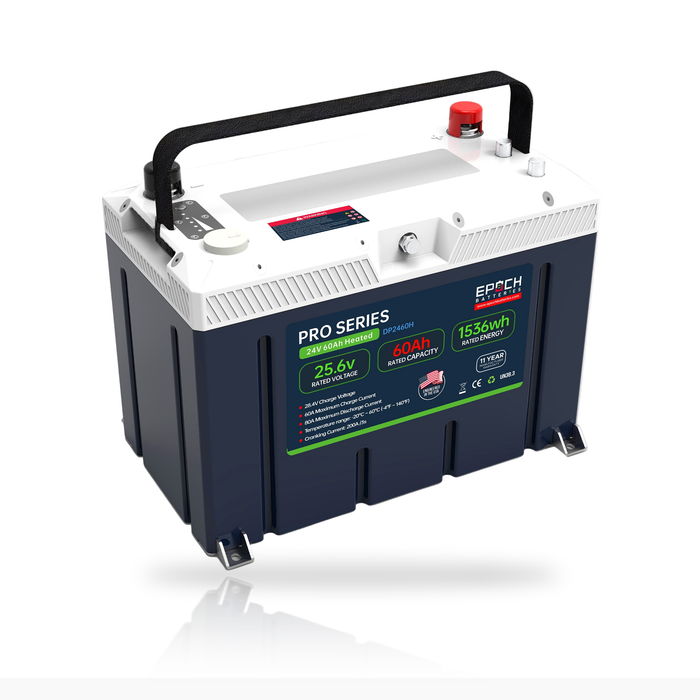

Epoch Batteries 24V 60Ah Pro Series DP2460H | LiFePO4 Battery (1.54kWh)

Specifications

Dimensions (L x W x H): 12.25 x 6.75 x 9 in

Weight: 30 lb

Cell Configuration: 8S2P

Chemistry: LiFePO4

Voltage: 25.6V

Max Charge Voltage: 29.2V

Operating Voltage Range: 20.0 - 29.2V

Ah Capacity: 60Ah

Max Continuous Discharge Amps: 80A (30A recommended for daily use)

Max Charge Current Amps: 60A (30A recommended)

Max Discharge Peak Current Amps: 200A (up to 3 Seconds)

Series | Parallel: Parallel only: Max (16) in Parallel (960Ah); series not approved

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (recommended; max 12 Months)

BMS Protection: Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

Model / SKU: DP2460H

BCI Group Size: Group 27

Nominal Energy: 1,536Wh / 1.536kWh

Planning Energy (80%): ≈ 1,229Wh, used for runtime estimates

End of Discharge: 22V – 23.2V

Internal Resistance: ≤30mΩ @ 1kHz AC

Short-Circuit Protection: Cutoff at 800A within 500µs

Cycle Life: 6,000+ cycles

Enclosure Protection: IP67: dust-tight, temporary immersion (1 m, 30 minutes); not submersible

Terminal Type: M8 bolt

Terminal Torque: 8–10 N·m (71–89 in-lb)

Bluetooth: Yes — Epoch Pro app for iOS and Android

Communications: CAN/RS485 Link in / Link out; Victron-compatible communication

Operational Altitude: <3000m

Self-Discharge Rate: ≤3% per month (sleep or off)

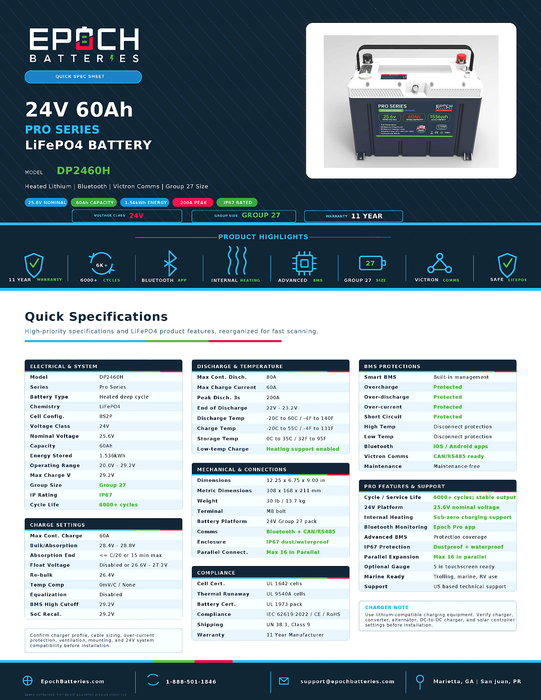

DP2460H Spec Sheet
DP2460H User Manual
DP2460H Technical Data Sheet

Epoch Batteries Limited Warranty

Warranty Period
11-year manufacturer warranty; register within 90 days of purchase for full coverage

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
