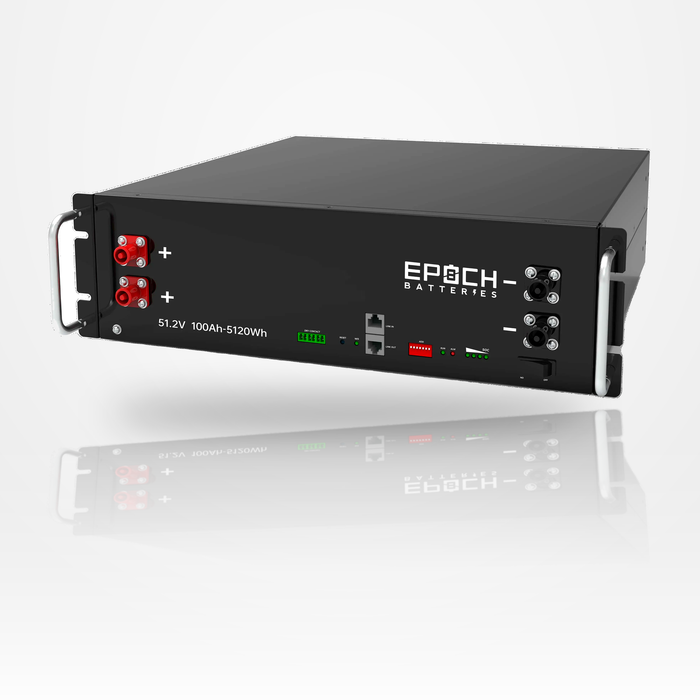

Epoch Batteries 48V 100Ah Self-Heating Server Rack Battery SR48100H | LiFePO4 (5.12kWh) | 3U Rack Mount

Specifications

Dimensions (L x W x H): 17.4 x 18.1 x 5.2 in

Weight: 101 lb

Cell Configuration: 16S1P

Chemistry: LiFePO4

Voltage: 51.2V

Max Charge Voltage: 56.0V

Operating Voltage Range: 48.0V - 56.0V

Ah Capacity: 100Ah

Max Continuous Discharge Amps: 100A (50A or less recommended)

Max Charge Current Amps: 70A (50A or less recommended)

Max Discharge Peak Current Amps: 119A (up to 5 Minutes); 200A (up to 15 Seconds)

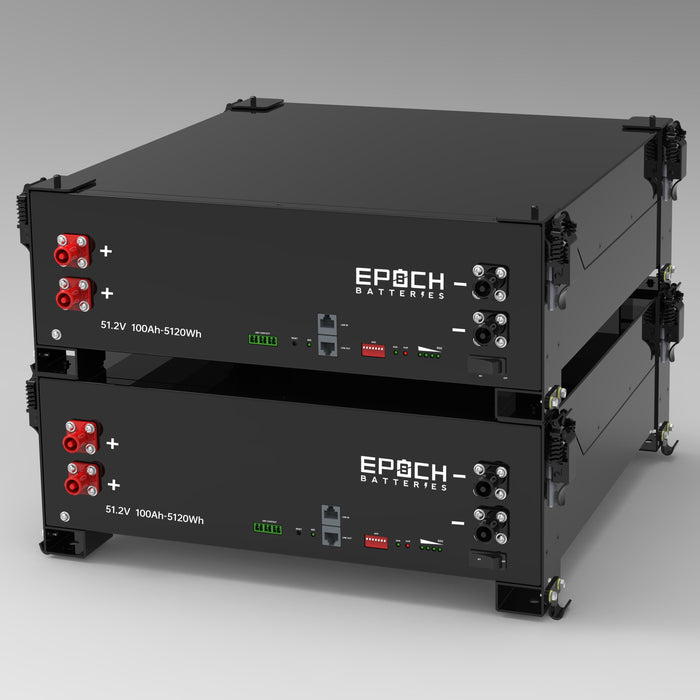

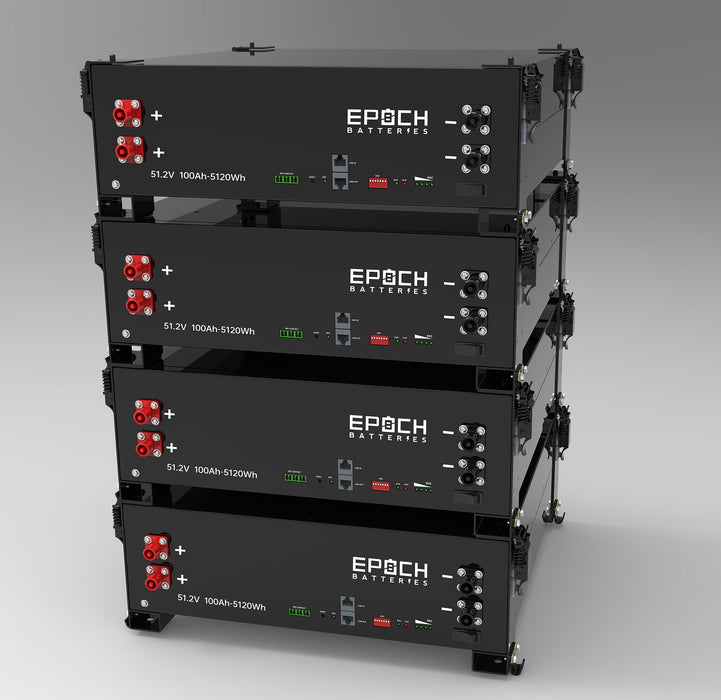

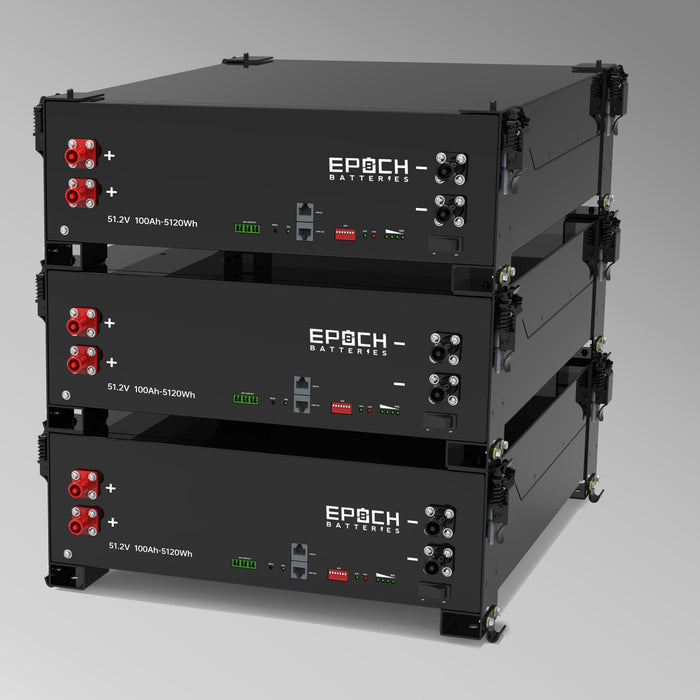

Series | Parallel: Parallel only: Max (32) in Parallel (3,200Ah), Plug & Play; do not connect in series

Charge Temp Range: -25°C (-13°F) / 50°C (122°F) (with heating; cells charge from -10°C (14°F))

Discharge Temp Range: -20°C (-4°F) / 50°C (122°F) (with communication)

Storage Temp: 15°C (59°F) / 35°C (95°F) (recommended); up to 6 Months 0°C (32°F) / 30°C (86°F); up to 3 Months -10°C (14°F) / 45°C (113°F)

BMS Protection: Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

Model / SKU: SR48100H

Rack Format: 3U, standard 19-inch rack or cabinet

Nominal Energy: 5.12kWh (5,120Wh at 0.2C)

Usable Energy: 4.92kWh at 0.2C (96% DoD)

Float Voltage: 54.6V

Re-charge / Generator Start Voltage: 50.0V

End Discharge / Inverter Cutoff: 48.0V (restart 52.0V)

Internal Resistance: ≤30mΩ (1kHz AC, 50% SOC)

Power Cables and Terminals: 125A maximum, 100A continuous suggested per cable and terminal

Communication Ports: CAN / RS485 (RJ45 Link IN / Link OUT); no Bluetooth

Dry Contact: Charge and discharge enable outputs; rapid-shutdown input (optional, U.S. market)

Heating Start Condition: Battery temperature -25°C to 5°C and incoming current ≥0.08C (8A)

Heating Completion Condition: Battery temperature ≥12°C (54°F)

Operating Environment: Optimum 15°C to 35°C (59°F to 95°F); 5%–90% RH, non-condensing; below 3,000 m

Self-Discharge Rate: ≤3% per month / ≤15% per year (sleep or power-off mode)

Size with Ears and Handles: 482.6 mm (19.0 in) wide across the rack ears; 510 mm (20.1 in) deep including the front handles

Case: Metal 3U chassis with front handles and rack ears

Terminals: Plug-in power connectors: 2 positive, 2 negative; grounding point on the front panel

IP Rating: IP20 per IEC 60529 — indoor use only

Cycle Life: 6,000+ cycles (0.2C, 90% DoD, 25°C, to 60% of initial capacity)

Certification: UL 1973 (ANSI/CAN/UL 1973:2018), ETL, pack level; UL 9540 pending

Transport: UN 38.3; Class 9

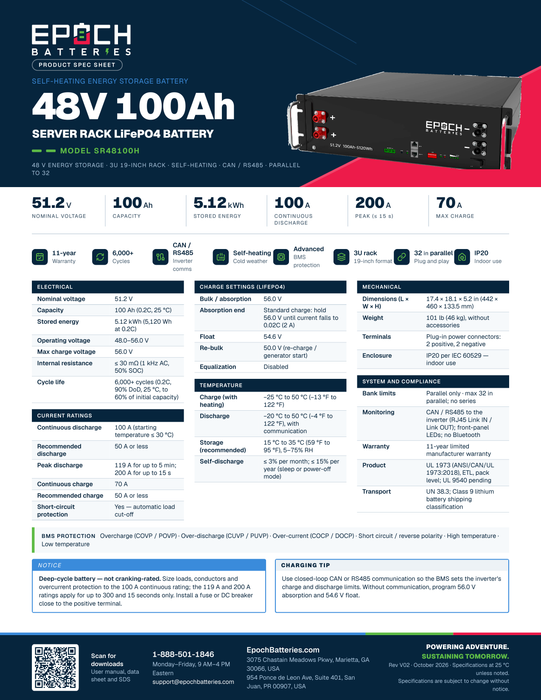

SR48100H Spec Sheet
SR48100H User Manual
SR48100H Technical Data Sheet
SR48100H ETL Certificate (UL 1973)

Epoch Batteries Limited Warranty

Warranty Period
11-year limited manufacturer warranty; register within 90 days of purchase for full coverage
Series or parallel connections beyond this model's limits are excluded from the warranty

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
