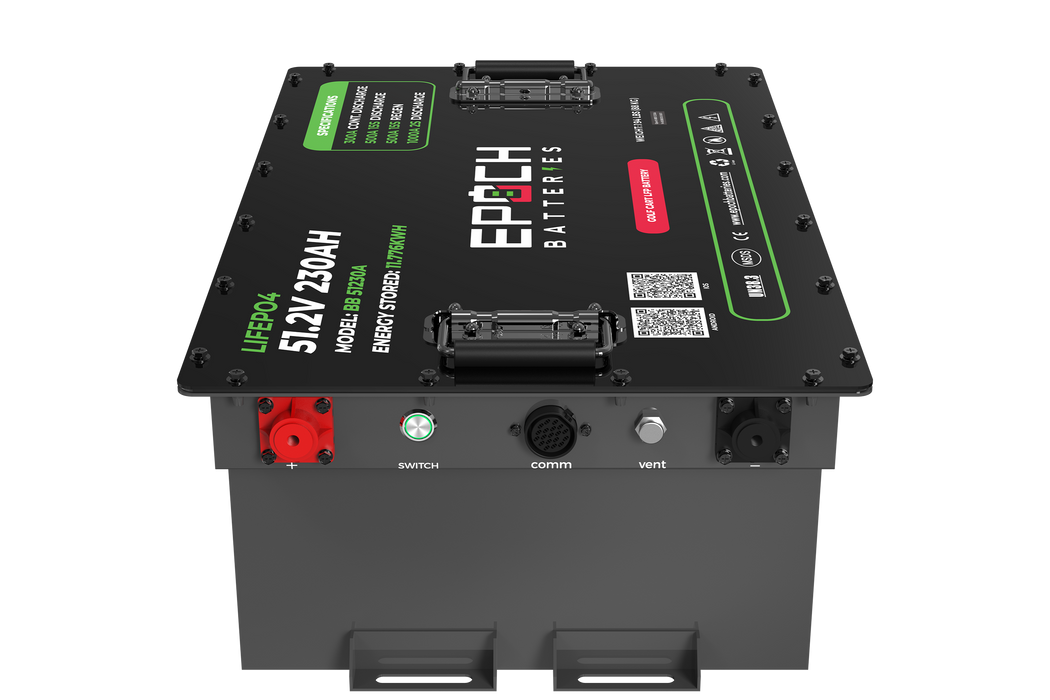

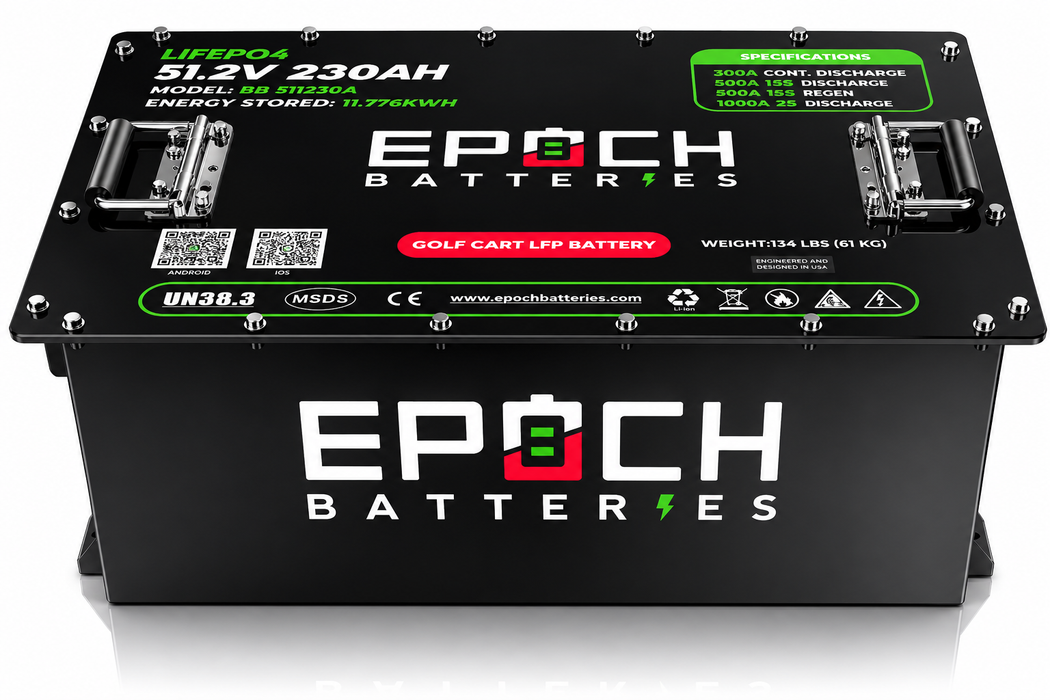

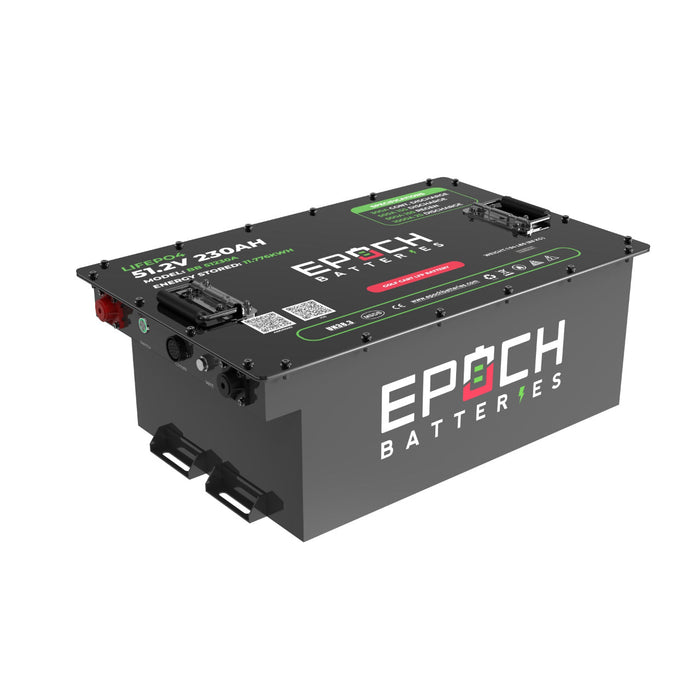

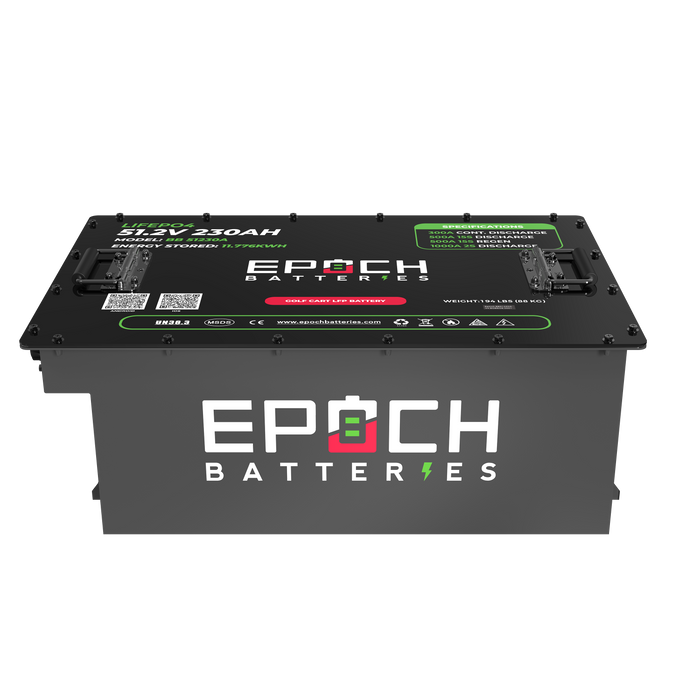

Epoch Batteries 48V 230Ah Golf Cart Battery Complete Kit | Lithium (LiFePO4)

Specifications

Cell Configuration: 16S1P

Chemistry: LiFePO4

Ah Capacity: 230Ah

Energy: 11.78kWh (11,776Wh)

Max Continuous Discharge Amps: 300A

Max Charge Current Amps: 230A Continuous, 500A (up to 15 Seconds, regenerative braking)

Max Discharge Peak Current Amps: 500A (up to 15 Seconds), 1,000A (up to 2 Seconds)

Series | Parallel: Parallel only, max 2 (460Ah); series not supported

Voltage: 51.2V

Max Charge Voltage: 58.4V

Operating Voltage Range: 40 - 58.4V

Charge Temp Range: 0°C (32°F) / 55°C (131°F)

Discharge Temp Range: -10°C (14°F) / 55°C (131°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight: 196 lbs

Length: 23.5 in

Width: 14.4 in

Height: 9.9 in

IP Rating: IP67

Cycle Life: 4,000+ cycles

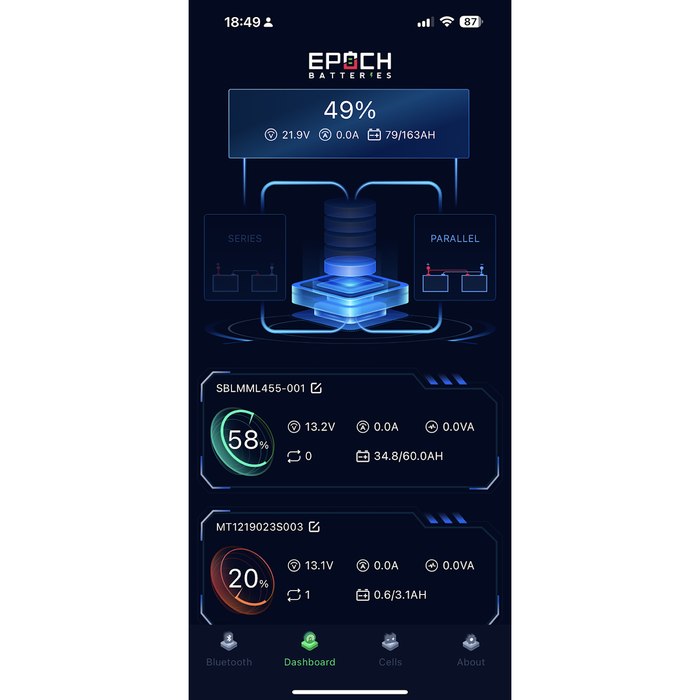

Bluetooth: Yes

Internal Heating: No

BMS Protection: Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

In the Box

• 1 x 48V 230Ah LiFePO4 golf cart battery
• 1 x 48V 22A onboard lithium charger
• 1 x 10 ft heavy-duty extension cord

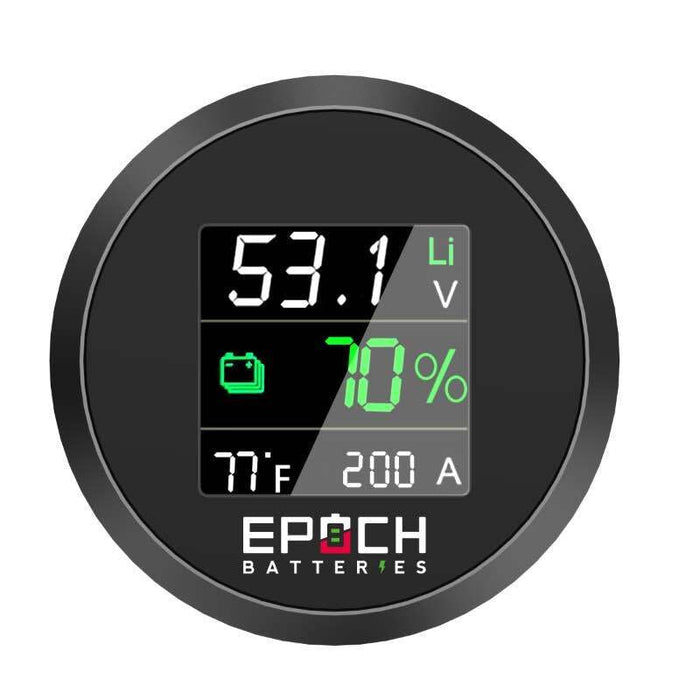

• 1 x Digital Bluetooth battery gauge
• 1 x 6 ft remote on/off power switch with wiring harness
• 1 x 48V to 12V step-down converter (25A)
• 1 x Cart-specific charge port plug

BB51230A-Kit-1 Spec Sheet
BB51230A-Kit-1 User Manual
BB51230A-Kit-1 Technical Data Sheet
BMS-CAN Protocol
Safety Data Sheet (SDS)

Epoch Batteries Limited Warranty

Warranty Period
11-year limited manufacturer warranty covering qualifying defects in materials and workmanship under normal use, subject to Epoch Batteries' warranty terms
Register within 90 days of purchase for full coverage

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
