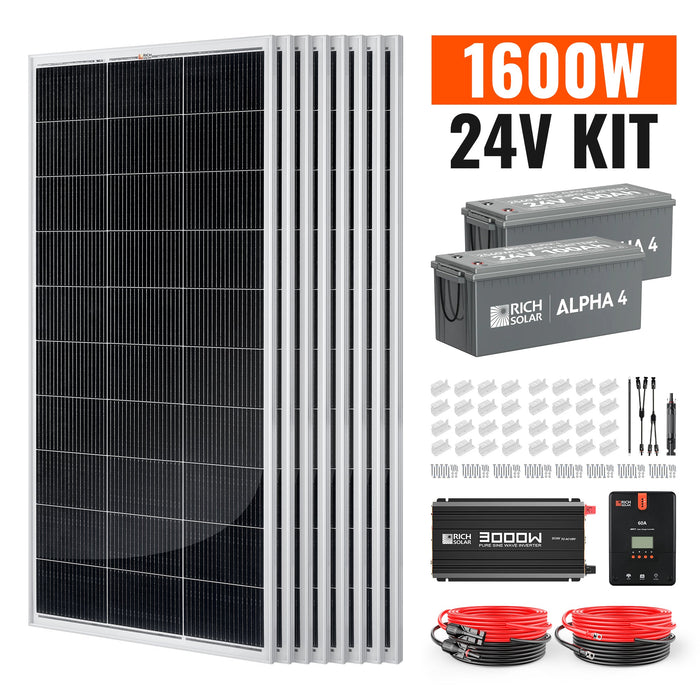

Rich Solar 1600 Watt 24V Complete Solar Kit RS-CK1600

Specifications

Solar Array: 1600W (8 x MEGA 200 200W panels)

Estimated Daily Production: Approximately 5.8kWh per day under 4 peak sun hours

System Voltage: 24V DC

Battery Storage: 5.12kWh (2 x ALPHA 4 24V 100Ah / 2560Wh LiFePO4)

Inverter: 3,000W continuous / 6,000W surge pure sine wave (NOVA PURE MAX 3K, 24V)

Charge Controller: 60A MPPT (RS-MPPT60)

No. of Panels: 8 x MEGA 200 Watt Solar Panels

Wattage Per Panel: 200W

Total Wattage of Panels: 1600W

MEGA 200 – Maximum Power(Pmax): 200W

MEGA 200 – Maximum Power Voltage(Vmp): 18.4V

MEGA 200 – Maximum Power Current(Imp): 10.9A

MEGA 200 – Open Circuit Voltage(Voc): 21.8V

MEGA 200 – Short Circuit Current(Isc): 11.6A

MEGA 200 – Temperature Range: -40 ~ +185°F

MEGA 200 – Maximum Series Fuse Rating: 15A

MEGA 200 – Weight: 24.0 lb

MEGA 200 – Dimensions: 58.7 x 26.8 x 1.2 in

ALPHA 4 – Cell Type: LiFePO4 Battery

ALPHA 4 – Nominal Voltage: 25.6V

ALPHA 4 – Nominal Capacity: 100Ah

ALPHA 4 – Nominal Energy: 2560Wh

ALPHA 4 – Cycle Life: 5000 Cycles

ALPHA 4 – BMS: 100A

ALPHA 4 – Maximum Charging Current: 100A

ALPHA 4 – Maximum Continuous Discharge Current: 100A

ALPHA 4 – Maximum Discharge Current 10 Seconds: 110A

ALPHA 4 – Charge Method: CC/CV

ALPHA 4 – Charge Voltage: 14.4V ± 0.2V

ALPHA 4 – Recommend Charge Current: 50A (0.5C)

ALPHA 4 – Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)

ALPHA 4 – Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)

ALPHA 4 – Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)

ALPHA 4 – External Power Draw: 100W

ALPHA 4 – Internal Heating Starts: < 41°F (5°C)

ALPHA 4 – Internal Heating Stops: > 50°F (10°C)

ALPHA 4 – Net Battery Weight: 48.5lb

ALPHA 4 – Size(LxWxH): 20.9x8.1x8.5in

ALPHA 4 – Housing Material: ABS (Flame Retardant Plastic)

ALPHA 4 – Protection Class: IP65

ALPHA 4 – Warranty: 5 Years

NOVA PURE MAX 3K – Model: RS-V3P24

NOVA PURE MAX 3K – Rated Voltage: 24V DC

NOVA PURE MAX 3K – Continuous Power: 3000W

NOVA PURE MAX 3K – Peak Surge: 6000W

NOVA PURE MAX 3K – Waveform: Pure Sine Wave

NOVA PURE MAX 3K – Input Voltage: 24V DC

NOVA PURE MAX 3K – Output Voltage: 120V AC

NOVA PURE MAX 3K – Output Frequency: 60 Hz

NOVA PURE MAX 3K – Output Efficiency: ＞88%

NOVA PURE MAX 3K – AC Output Sockets: 3

NOVA PURE MAX 3K – USB Power Port: 5V / 2.1A

NOVA PURE MAX 3K – Power Output Control: AC On/Off Switch

NOVA PURE MAX 3K – Operating Temperature: 14°F to 122°F

NOVA PURE MAX 3K – Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)

NOVA PURE MAX 3K – Weight: 12.1 (lb) / 5.5 (kg)

60A MPPT Controller (RS-MPPT60) – Rated Battery Current: 60A

60A MPPT Controller (RS-MPPT60) – Rated Load Current: 20A

60A MPPT Controller (RS-MPPT60) – Max Solar Input Voltage: 150V(77℉), 145V(-13℉)

60A MPPT Controller (RS-MPPT60) – Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

60A MPPT Controller (RS-MPPT60) – Charge Circuit Voltage Drop: ≤0.26V

60A MPPT Controller (RS-MPPT60) – Discharge Circuit Voltage Drop: ≤0.15V

60A MPPT Controller (RS-MPPT60) – Operating Temperature: -31°F to 113°F

60A MPPT Controller (RS-MPPT60) – Max Terminal Size: <11mm

60A MPPT Controller (RS-MPPT60) – Overall Dimensions: 11.2 x 8.1 x 3.7 in

60A MPPT Controller (RS-MPPT60) – Net Weight: 7.94 lb

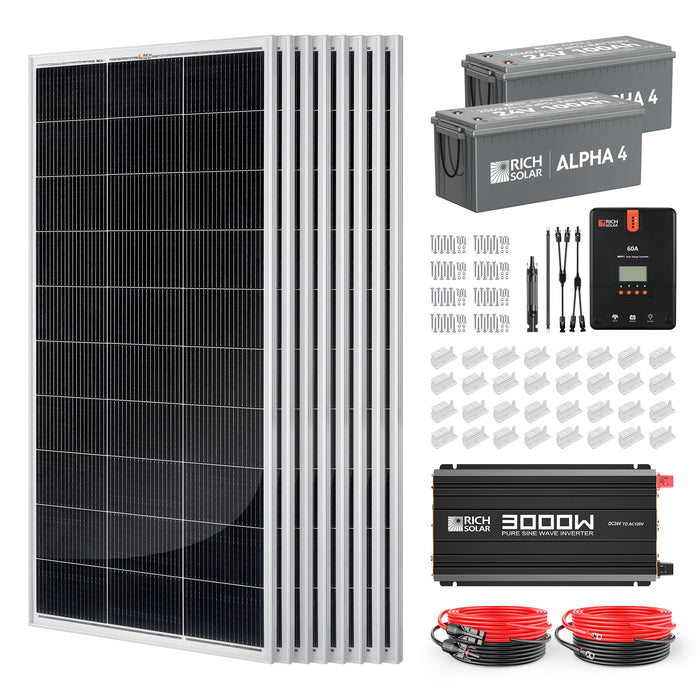

In the Box

• 8 x MEGA 200W 12V Panels (RS-M200)
• 2 x ALPHA 4 Lithium Batteries (RS-B241S)
• 1 x 3000W 24V Inverter (RS-V3P24)
• 1 x 60A MPPT Charge Controller (RS-MPPT60)
• 8 x Z Bracket sets (one set of 4) (RS-ZB4C)
• 1 x 30A Inline Fuse Holder (RS-SC30F)
• 1 x Y Branch Parallel Adapter (RS-Y2)
• 1 x 2 AWG 1 ft Inverter Battery Cable Red (RS-C21R)
• 1 x 2 AWG 1 ft Inverter Battery Cable Black (RS-C21B)
• 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
• 1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
• 1 x 8 ft 4 AWG Battery Cable Set (RS-C48R & RS-C48B)

MEGA 200 Solar Panel Spec Sheet
ALPHA 4 24V 100Ah LiFePO4 Battery Spec Sheet
NOVA PURE MAX 3K 24V 3000W Pure Sine Wave Inverter Spec Sheet
60 Amp MPPT Solar Charge Controller Spec Sheet
ALPHA 4 24V 100Ah LiFePO4 Battery User Manual
NOVA PURE MAX 3K 24V 3000W Pure Sine Wave Inverter User Manual
60 Amp MPPT Solar Charge Controller User Manual

Rich Solar Limited Warranty

Warranty Period
Solar panels: 25-year limited power output warranty and 10-year workmanship warranty (prorated)
ALPHA 4 batteries: 5-year limited warranty (prorated)
NOVA PURE MAX 3K pure sine wave inverter: 2-year limited warranty (prorated)
60A (RS-MPPT60) MPPT charge controller: 2-year limited warranty (prorated)
Cables, brackets, fuses and other accessories: 1-year limited warranty

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

10-Year Prorated Warranty Rates

• Years 1-3: Full replacement (100% coverage)
• Year 4: 85% coverage
• Year 5: 70% coverage
• Year 6: 55% coverage
• Year 7: 40% coverage
• Year 8: 25% coverage
• Year 9: 10% coverage
• Year 10: 5% coverage

5-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 80% coverage
• Year 3: 60% coverage
• Year 4: 40% coverage
• Year 5: 20% coverage

2-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 50% coverage

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged within seven (7) days after purchase and at least once every 6 months thereafter.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.
