Rich Solar 1600 Watt Solar Kit RS-K1660

Specifications

Solar Array: 1600W (8 x MEGA 200 200W panels)

Estimated Daily Production: Approximately 5.8kWh per day under 4 peak sun hours

System Voltage: 24V solar charging system

Charge Controller: 60A MPPT (RS-MPPT60)

No. of Panels: 8 x MEGA 200 Watt Solar Panels

Wattage Per Panel: 200W

Total Wattage of Panels: 1600W

MEGA 200 – Maximum Power(Pmax): 200W

MEGA 200 – Maximum Power Voltage(Vmp): 18.4V

MEGA 200 – Maximum Power Current(Imp): 10.9A

MEGA 200 – Open Circuit Voltage(Voc): 21.8V

MEGA 200 – Short Circuit Current(Isc): 11.6A

MEGA 200 – Temperature Range: -40 ~ +185°F

MEGA 200 – Maximum Series Fuse Rating: 15A

MEGA 200 – Weight: 24.0 lb

MEGA 200 – Dimensions: 58.7 x 26.8 x 1.2 in

60A MPPT Controller (RS-MPPT60) – Rated Battery Current: 60A

60A MPPT Controller (RS-MPPT60) – Rated Load Current: 20A

60A MPPT Controller (RS-MPPT60) – Max Solar Input Voltage: 150V(77℉), 145V(-13℉)

60A MPPT Controller (RS-MPPT60) – Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

60A MPPT Controller (RS-MPPT60) – Charge Circuit Voltage Drop: ≤0.26V

60A MPPT Controller (RS-MPPT60) – Discharge Circuit Voltage Drop: ≤0.15V

60A MPPT Controller (RS-MPPT60) – Operating Temperature: -31°F to 113°F

60A MPPT Controller (RS-MPPT60) – Max Terminal Size: <11mm

60A MPPT Controller (RS-MPPT60) – Overall Dimensions: 11.2 x 8.1 x 3.7 in

60A MPPT Controller (RS-MPPT60) – Net Weight: 7.94 lb

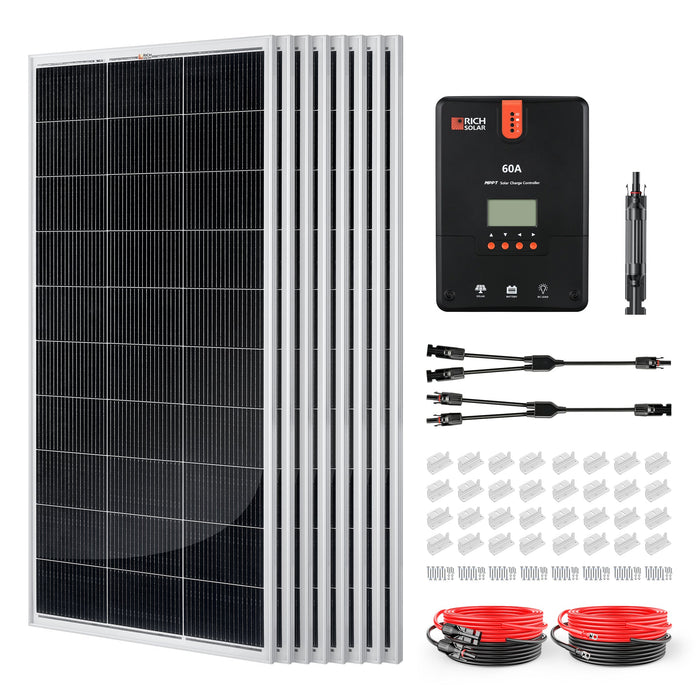

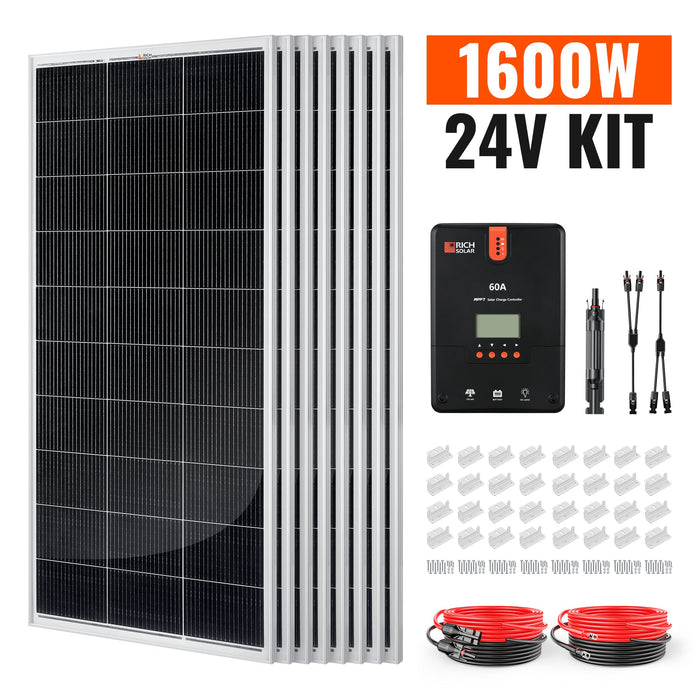

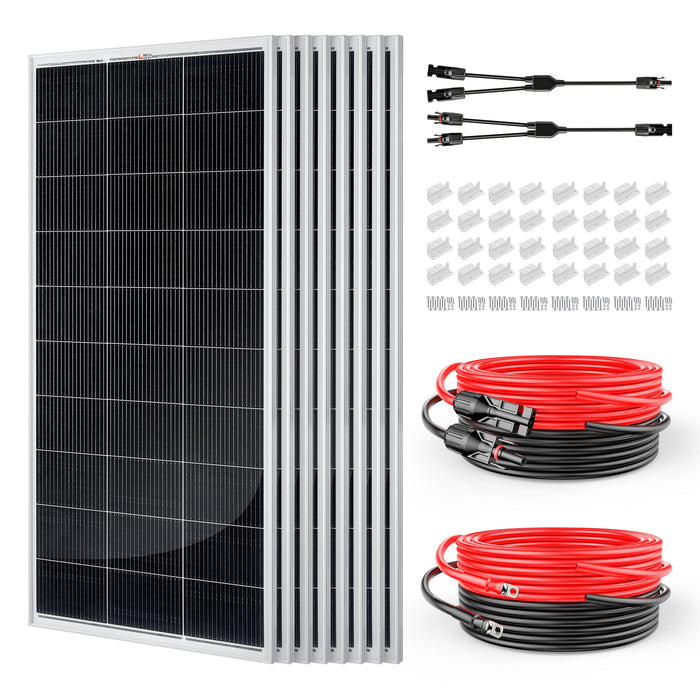

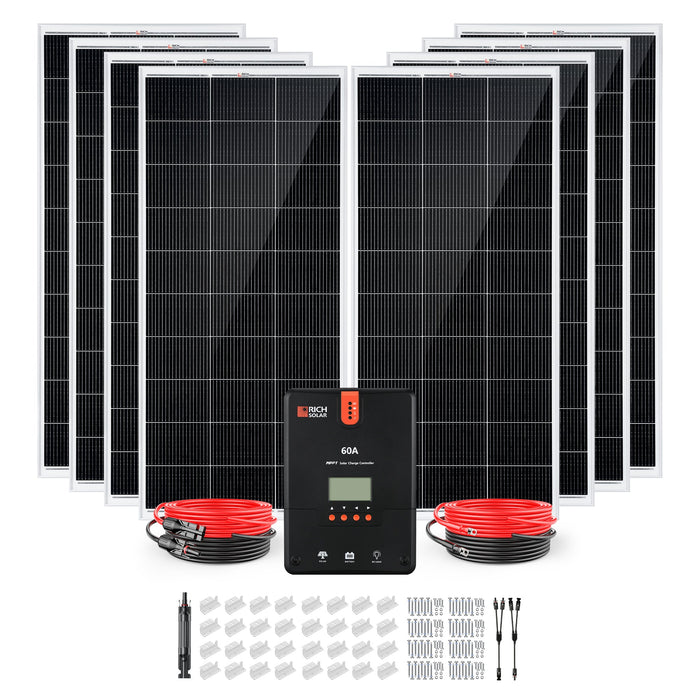

In the Box

• 8 x 200 Watt Monocrystalline Solar Panels (RS-M200)
• 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
• 1 x 20 ft 10 AWG Solar Cable (Red), connects the solar panel to the controller (RS-20101)
• 1 x 20 ft 10 AWG Solar Cable (Black), connects the solar panel to the controller (RS-20101)
• 1 x 10 ft 8 AWG Battery Cable (Red), connects the controller to the battery (RS-810)
• 1 x 10 ft 8 AWG Battery Cable (Black), connects the controller to the battery (RS-810)
• 8 x Mounting Z Bracket sets (one set of 4) (RS-ZB4C)
• 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
• 1 x Y Branch Parallel Adapter (RS-T2)

MEGA 200 Solar Panel Spec Sheet
60 Amp MPPT Solar Charge Controller Spec Sheet
60 Amp MPPT Solar Charge Controller User Manual

Rich Solar Limited Warranty

Warranty Period
Solar panels: 25-year limited power output warranty and 10-year workmanship warranty (prorated)
60A (RS-MPPT60) MPPT charge controller: 2-year limited warranty (prorated)
Cables, brackets, fuses and other accessories: 1-year limited warranty

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

10-Year Prorated Warranty Rates

• Years 1-3: Full replacement (100% coverage)
• Year 4: 85% coverage
• Year 5: 70% coverage
• Year 6: 55% coverage
• Year 7: 40% coverage
• Year 8: 25% coverage
• Year 9: 10% coverage
• Year 10: 5% coverage

2-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 50% coverage

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged within seven (7) days after purchase and at least once every 6 months thereafter.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.
