Rich Solar 2500W 48VDC-240VAC Solar Kit RS-CBK2500240

Specifications

Solar Array: 2500W (10 x MEGA 250 250W panels)

Estimated Daily Production: Approximately 9.0kWh per day under 4 peak sun hours

System Voltage: 48V DC battery / 120/240V split-phase AC output

Battery Storage: 10.24kWh (2 x ALPHA 5 PRO 51.2V 100Ah LiFePO4)

Inverter System: 2 x NOVA 6500S: 13,000W continuous / 26,000W surge combined, dual 120A MPPT

No. of Panels: 10 x MEGA 250Watt Solar Panels

Wattage Per Panel: 250W

Total Wattage of Panels: 2500W

No. of Batteries: 2 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries

No. of Hybrid Solar Inverter: 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverters

MEGA 250 – Model: RS-M250

MEGA 250 – Maximum Power (Pmax): 250W

MEGA 250 – Maximum Power Voltage (Vmp): 18.9V

MEGA 250 – Maximum Power Current (Imp): 13.2A

MEGA 250 – Open Circuit Voltage (Voc): 22.8V

MEGA 250 – Short Circuit Current (Isc): 13.7A

MEGA 250 – Maximum System Voltage (Vmax): 1500VDC

MEGA 250 – Temperature Range: -40 ~ +185℉

MEGA 250 – Weight: 26.9 lb

MEGA 250 – Dimensions: 60.6 x 29.9 x 1.2 in

ALPHA 5 PRO – Nominal Voltage: 51.2V

ALPHA 5 PRO – Nominal Capacity (Electrical Specifications): 100Ah

ALPHA 5 PRO – Minimum Capacity: 99.5Ah

ALPHA 5 PRO – Nominal Energy: 5120Wh

ALPHA 5 PRO – Charging Voltage: 56V

ALPHA 5 PRO – Discharging Cutoff Voltage: 44.8V

ALPHA 5 PRO – Maximum Charging Current (Operating Specifications): 100A

ALPHA 5 PRO – Continuous Charge Current: 100A

ALPHA 5 PRO – Maximum Discharge Current: 100A

ALPHA 5 PRO – Battery Dimensions: 17.7"L x 17.8"W x 5.2"H

ALPHA 5 PRO – Battery Weight: 99.2 lb

ALPHA 5 PRO – Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)

ALPHA 5 PRO – Server Rack Weight: 196.2 lb

ALPHA 5 PRO – Operation Voltage: 43.2~58.4V

ALPHA 5 PRO – Maximum Charging Current (BMS Operation): 100A

ALPHA 5 PRO – Maximum Discharging Current: 100A

ALPHA 5 PRO – Maximum Charge Voltage (CC/CV): 57.6V

ALPHA 5 PRO – Overcharge Protection Voltage (Battery): 58.4V

ALPHA 5 PRO – Overcharge Protection Release Voltage (Battery): 54V

ALPHA 5 PRO – Over Discharge Protection Voltage (Battery): 43.2V

ALPHA 5 PRO – Over Discharge Protection Release Voltage (Battery): 47.2V

ALPHA 5 PRO – Over Discharge Primary Charge Overcurrent Protection Value: 110A

ALPHA 5 PRO – First Stage Charge Over Current Delay: 1s

ALPHA 5 PRO – Primary Discharge Overcurrent Protection Value: 110A

ALPHA 5 PRO – Primary Discharge Overcurrent Protection Delay: 1s

ALPHA 5 PRO – Secondary Discharge Overcurrent Protection Value: 150A

ALPHA 5 PRO – Secondary Discharge Overcurrent Protection Delay: 500ms

ALPHA 5 PRO – Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);

ALPHA 5 PRO – Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)

ALPHA 5 PRO – Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)

ALPHA 5 PRO – Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

ALPHA 5 PRO – Certification: UL1973, UL9540A, FCC

ALPHA 5 PRO – Max. Expansion: 15 pcs in parallel

ALPHA 5 PRO – Communication Ports: RS485/RS232/CAN

ALPHA 5 PRO – Warranty: 10 Years Manufacturer Defect

NOVA 6500S – Model: RS-H6548S

NOVA 6500S – Rated Inverter Power: 6500VA/6500W

NOVA 6500S – PARALLEL CAPABILITY: Yes, 6 units

NOVA 6500S – Voltage: 120 VAC

NOVA 6500S – Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)

NOVA 6500S – Frequency Range: 50 Hz/60 Hz (Auto Sensing)

NOVA 6500S – AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%

NOVA 6500S – Surge Power: 13000VA

NOVA 6500S – Efficiency (Peak): 91%

NOVA 6500S – Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)

NOVA 6500S – Waveform: Pure Sine Wave

NOVA 6500S – No Load Power Consumption: <75W

NOVA 6500S – DC Voltage: 12 VDC ± 5%, 100W

NOVA 6500S – Battery Voltage: 48 VDC

NOVA 6500S – Float Charging Voltage: 54 VDC

NOVA 6500S – Overcharge Protection: 66 VDC

NOVA 6500S – Solar Charger Type: MPPT

NOVA 6500S – Maximum PV Array Power: 8000W (4000W x 2)

NOVA 6500S – MPPT Operating Voltage Range: 90 ~ 230 VDC

NOVA 6500S – Maximum PV Array Open Circuit Voltage: 250 VDC

NOVA 6500S – Maximum Solar Charge Current: 120A

NOVA 6500S – Maximum AC Charge Current: 120A

NOVA 6500S – Maximum Charge Current: 120A

NOVA 6500S – Dimension (D x W x H): 6.2 x 19.8 x 20.9 in

NOVA 6500S – Net Weight: 44 lb

NOVA 6500S – Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

NOVA 6500S – Humidity: 5% to 95% Relative Humidity (Non-condensing)

NOVA 6500S – Operating Temperature: 14°F to 104°F

NOVA 6500S – Storage Temperature: 5°F to 140°F

NOVA 6500S – Compliance Safety: UL

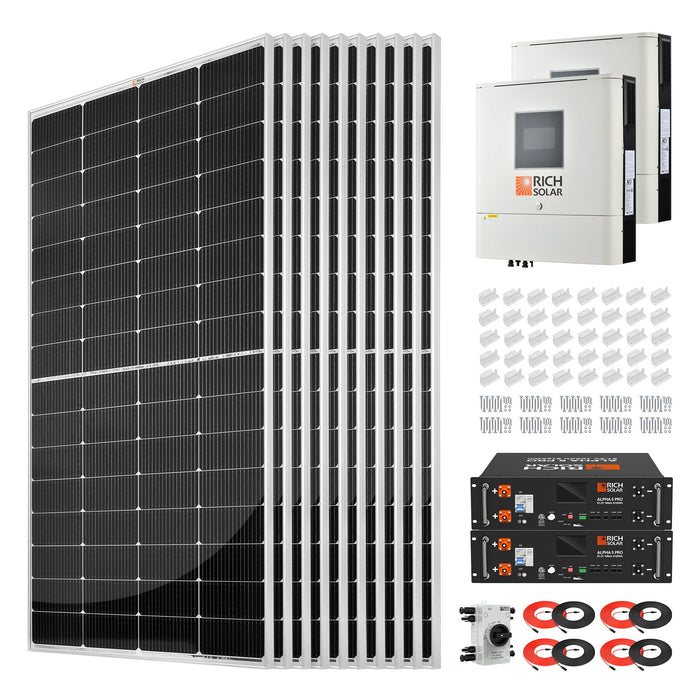

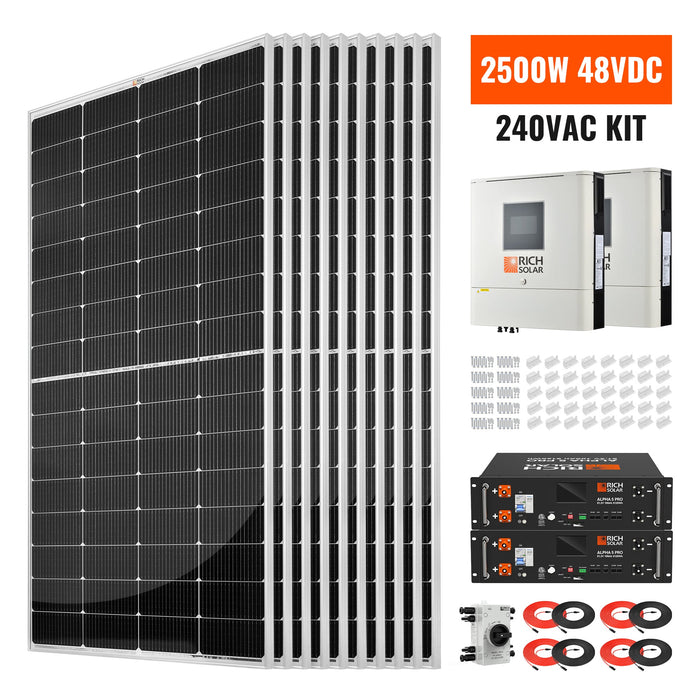

In the Box

• 2 x 6500W 48V Off-grid Solar Inverters (RS-H6548S)
• 10 x MEGA 250 12V 250W Solar Panels (RS-M250)
• 2 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
• 2 x 10 AWG 30 ft Extension Cables (RS-30102)
• 2 x 10 AWG 10 ft Extension Cables (RS-10102)
• 15 x Z Bracket sets (one set of 4) (RS-ZB4C)
• 1 x PV DC Quick Disconnect (RS-i4)

Rich Solar Limited Warranty

Warranty Period
Solar panels: 25-year limited power output warranty and 10-year workmanship warranty (prorated)
ALPHA 5 PRO batteries: 10-year limited warranty (prorated)
NOVA 6500S hybrid inverters: 3-year limited warranty (prorated)
Cables, brackets, fuses and other accessories: 1-year limited warranty

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

10-Year Prorated Warranty Rates

• Years 1-3: Full replacement (100% coverage)
• Year 4: 85% coverage
• Year 5: 70% coverage
• Year 6: 55% coverage
• Year 7: 40% coverage
• Year 8: 25% coverage
• Year 9: 10% coverage
• Year 10: 5% coverage

3-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 65% coverage
• Year 3: 30% coverage

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged within seven (7) days after purchase and at least once every 6 months thereafter.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.
