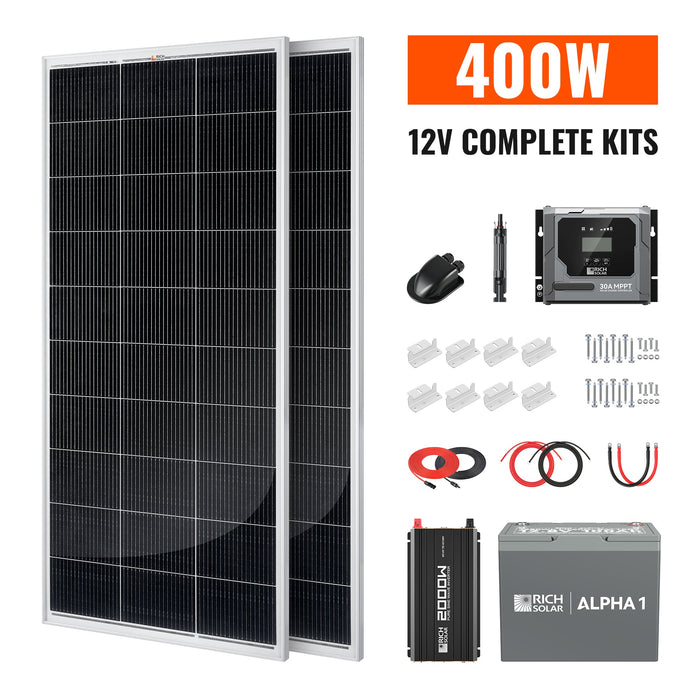

Rich Solar Complete 400W Solar Kit RS-CK400 | with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power | Complete Energy Solution

Specifications

Solar Array: 400W (2 x MEGA 200 200W panels)

Estimated Daily Production: Approximately 1.4kWh per day under 4 peak sun hours

System Voltage: 12V DC

Battery Storage: 1.28kWh (1 x ALPHA 1 12.8V 100Ah LiFePO4)

Inverter: 2,000W continuous / 4,000W surge pure sine wave (NOVA PURE 2K)

Charge Controller: BRAVO 30 30A MPPT

MEGA 200 – Maximum Power(Pmax): 200W

MEGA 200 – Maximum Power Voltage(Vmp): 18.4V

MEGA 200 – Maximum Power Current(Imp): 10.9A

MEGA 200 – Open Circuit Voltage(Voc): 21.8V

MEGA 200 – Short Circuit Current(Isc): 11.6A

MEGA 200 – Temperature Range: -40 ~ +185°F

MEGA 200 – Maximum Series Fuse Rating: 15A

MEGA 200 – Weight: 24 lb

MEGA 200 – Dimensions: 58.7 x 26.8 x 1.2 in

BRAVO 30 – Maximum Solar Input Current: 30A

BRAVO 30 – Maximum Charging Current: 30A

BRAVO 30 – Recommended Solar Power: 500W (12V) / 1000W (24V)

BRAVO 30 – Nominal System Voltage: 12V/24V Auto-Detect

BRAVO 30 – Solar Input Voltage Range: 8V-100V

BRAVO 30 – MPPT Voltage Range: 15V-72V

BRAVO 30 – Maximum Conversion Efficiency: 98%

BRAVO 30 – Maximum MPPT Tracking Efficiency: 99.5%

BRAVO 30 – Battery Compatibility: GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO4, LTO, LCO, Custom

BRAVO 30 – Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)

BRAVO 30 – Protection Rating: IP43 PCBA, IP22 Connection

BRAVO 30 – Net Weight: 1.8 lb

BRAVO 30 – Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in

ALPHA 1 – Cell Type: LiFePO4 Battery

ALPHA 1 – Nominal Voltage: 12.8V

ALPHA 1 – Nominal Capacity: 100Ah

ALPHA 1 – Nominal Energy: 1280Wh

ALPHA 1 – Cycle Life: 5000 cycles

ALPHA 1 – BMS: 100A

ALPHA 1 – Maximum Charging Current: 100A

ALPHA 1 – Maximum Continuous Discharge Current: 100A

ALPHA 1 – Maximum Discharge Current 10 Seconds: 110A

ALPHA 1 – Charge Method: CC/CV

ALPHA 1 – Charge Voltage: 14.4V ± 0.2V

ALPHA 1 – Recommend Charge Current: 50A (0.5C)

ALPHA 1 – Charge Temperature: 32°F to 131°F (0°C to 55°C)

ALPHA 1 – Discharge Temperature: -4°F to 140°F (-20°C to 60°C)

ALPHA 1 – Storage Temperature: 14°F to 113°F (-10°C to 45°C)

ALPHA 1 – External Power Draw: 100W

ALPHA 1 – Internal Heating Starts: < 41°F (5°C)

ALPHA 1 – Internal Heating Stops: > 50°F (10°C)

ALPHA 1 – Net Battery Weight: 24.0lb

ALPHA 1 – Size(LxWxH): 10.2x6.6x8.3in (Group 24 size)

ALPHA 1 – Housing Material: ABS (Flame Retardant Plastic)

ALPHA 1 – Protection Class: IP65

ALPHA 1 – Warranty: 5 Years

NOVA PURE 2K – Model: RS-V2P12

NOVA PURE 2K – Rated Voltage: 12V DC

NOVA PURE 2K – Continuous Power: 2000W

NOVA PURE 2K – Peak Surge: 4000W

NOVA PURE 2K – Waveform: Pure Sine Wave

NOVA PURE 2K – Input Voltage: 12V DC

NOVA PURE 2K – Output Voltage: 120V AC

NOVA PURE 2K – Output Frequency: 60 Hz

NOVA PURE 2K – Output Efficiency: ＞88%

NOVA PURE 2K – AC Output Sockets: 3

NOVA PURE 2K – USB Power Port: 5V / 2.1A

NOVA PURE 2K – Power Output Control: AC On/Off Switch

NOVA PURE 2K – Operating Temperature: 14°F to 122°F

NOVA PURE 2K – Dimensions: 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)

NOVA PURE 2K – Weight: 10.1 (lb) / 4.6 (kg)

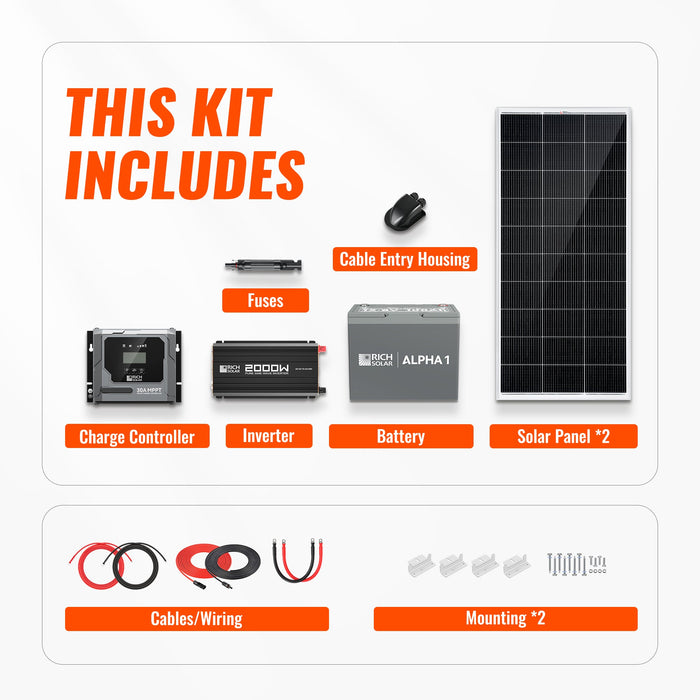

In the Box

• 2 x MEGA 200 12V 200W Solar Panels (RS-M200)
• 1 x Bravo 30 30A MPPT Charge Controller (RS-MPPT30PB)
• 1 x ALPHA 1 12V 100Ah Lithium Battery (RS-B121S)
• 1 x NOVA PURE 2K 12V 2000W Inverter (RS-V2P12)
• 2 x Z Bracket sets (one set of 4) (RS-ZB4C)
• 1 x Cable Entry Housing (RS-C2B)
• 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
• 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
• 1 x 10 ft 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
• 1 x 2/0 AWG 3/8" Battery Cables 4 ft Cable Set (Inverter to Battery) (RS-2/0A4F3)

MEGA 200 Solar Panel Spec Sheet
BRAVO 30 30A MPPT Solar Charge Controller Spec Sheet
ALPHA 1 12V 100Ah LiFePO4 Battery Spec Sheet
NOVA PURE 2K 12V 2000W Pure Sine Wave Inverter Spec Sheet
BRAVO 30 30A MPPT Solar Charge Controller User Manual
ALPHA 1 12V 100Ah LiFePO4 Battery User Manual
NOVA PURE 2K 12V 2000W Pure Sine Wave Inverter User Manual

Rich Solar Limited Warranty

Warranty Period
Solar panels: 25-year limited power output warranty and 10-year workmanship warranty (prorated)
ALPHA 1 battery: 5-year limited warranty (prorated)
NOVA PURE 2K pure sine wave inverter: 2-year limited warranty (prorated)
BRAVO 30 MPPT charge controller: 2-year limited warranty (prorated)
Cables, brackets, fuses and other accessories: 1-year limited warranty

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

10-Year Prorated Warranty Rates

• Years 1-3: Full replacement (100% coverage)
• Year 4: 85% coverage
• Year 5: 70% coverage
• Year 6: 55% coverage
• Year 7: 40% coverage
• Year 8: 25% coverage
• Year 9: 10% coverage
• Year 10: 5% coverage

5-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 80% coverage
• Year 3: 60% coverage
• Year 4: 40% coverage
• Year 5: 20% coverage

2-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 50% coverage

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged within seven (7) days after purchase and at least once every 6 months thereafter.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.
