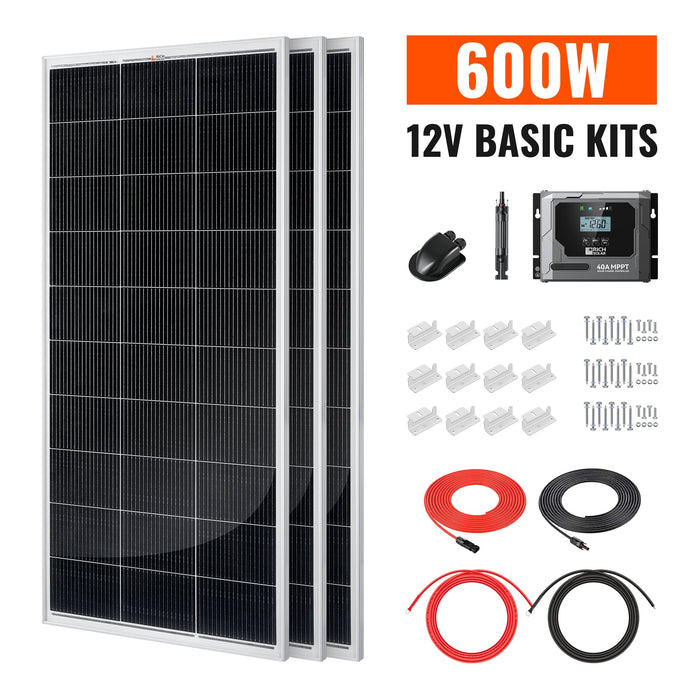

Rich Solar Basic 600 Watt Solar Kit RS-K6004 | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging

Specifications

Solar Array: 600W (3 x MEGA 200 200W panels)

Estimated Daily Production: Approximately 2.2kWh per day under 4 peak sun hours

System Voltage: 12V

Charge Controller: BRAVO 40 40A MPPT

MEGA 200 – Maximum Power(Pmax): 200W

MEGA 200 – Maximum Power Voltage(Vmp): 18.4V

MEGA 200 – Maximum Power Current(Imp): 10.9A

MEGA 200 – Open Circuit Voltage(Voc): 21.8V

MEGA 200 – Short Circuit Current(Isc): 11.6A

MEGA 200 – Temperature Range: -40 ~ +185°F

MEGA 200 – Maximum Series Fuse Rating: 15A

MEGA 200 – Weight: 24 lb

MEGA 200 – Dimensions: 58.7 x 26.8 x 1.2 in

BRAVO 40 – System Nominal Voltage: 12/24V Auto

BRAVO 40 – Max. PV Open Circuit Voltage: 100VDC

BRAVO 40 – Charging Technology: MPPT

BRAVO 40 – Max PV Charging Current: 40A

BRAVO 40 – Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)

BRAVO 40 – Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO

BRAVO 40 – Housing Case Color: Black / Grey

BRAVO 40 – IP Grade: IP43 for Inside PCBA, IP22 for Connection Area

BRAVO 40 – Net Weight: 1.17kg / 2.58lb

BRAVO 40 – Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in

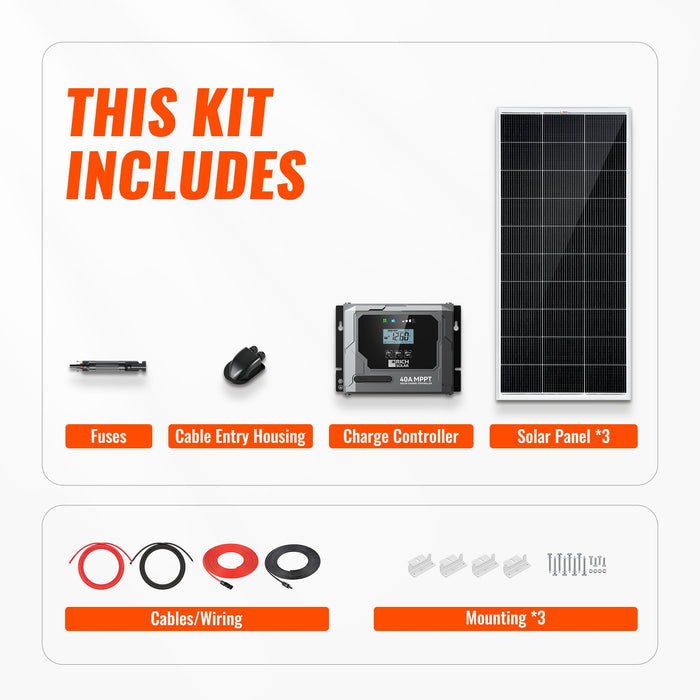

In the Box

• 3 x MEGA 200 12V 200W Solar Panels (RS-M200)
• 1 x Bravo 40 40A MPPT Charge Controller (RS-MPPT40PB)
• 3 x Mounting Z Bracket sets (one set of 4) (RS-ZB4C)
• 1 x Cable Entry Housing (RS-C2B)
• 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
• 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
• 1 x 10 ft 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)

MEGA 200 Solar Panel Spec Sheet
BRAVO 40 40 Amp MPPT Solar Charge Controller Spec Sheet
BRAVO 40 40 Amp MPPT Solar Charge Controller User Manual

Rich Solar Limited Warranty

Warranty Period
Solar panels: 25-year limited power output warranty and 10-year workmanship warranty (prorated)
BRAVO 40 MPPT charge controller: 2-year limited warranty (prorated)
Cables, brackets, fuses and other accessories: 1-year limited warranty

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

10-Year Prorated Warranty Rates

• Years 1-3: Full replacement (100% coverage)
• Year 4: 85% coverage
• Year 5: 70% coverage
• Year 6: 55% coverage
• Year 7: 40% coverage
• Year 8: 25% coverage
• Year 9: 10% coverage
• Year 10: 5% coverage

2-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 50% coverage

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged within seven (7) days after purchase and at least once every 6 months thereafter.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.

Shipping is typically through freight carriers and the actual shipping time is contingent on your location and the specific warehouse dispatching your order. Please allow for a 1-3 business day processing period before shipment, and an estimated delivery time of up to 7 business days. Your confirmation email will include delivery details and we will send you a tracking number as soon as one is available. If you ordered several separate items, you may receive multiple tracking numbers. Once the item has been shipped, the freight service will contact you to coordinate the date and time of delivery. If you require any special accommodations during delivery please let us know as soon as possible and let the delivery company know when arranging the appointment.

Typically, orders will be dropped off either curbside or outside your front door or garage. It is your responsibility to bring the order inside or to its final destination and to remove any existing items.

Depending on the item, parts may be shipped in multiple boxes, and assembly may be required. When your order is delivered, please check that you have all pieces of the item and that nothing is damaged. If your order is damaged during transit and external damage is visible, note the damage immediately, write it on the delivery documents, take photos and/or videos, and refuse shipment. If there is no visible external damage, accept the package but note “subject to concealed damage” on the delivery documents. Any damage upon delivery needs to be reported within 24 hours of delivery or you may not be eligible for a refund. For additional information on submitting claims, as well as incorrect item exchanges, and replacements, please see our Refund Policy.
