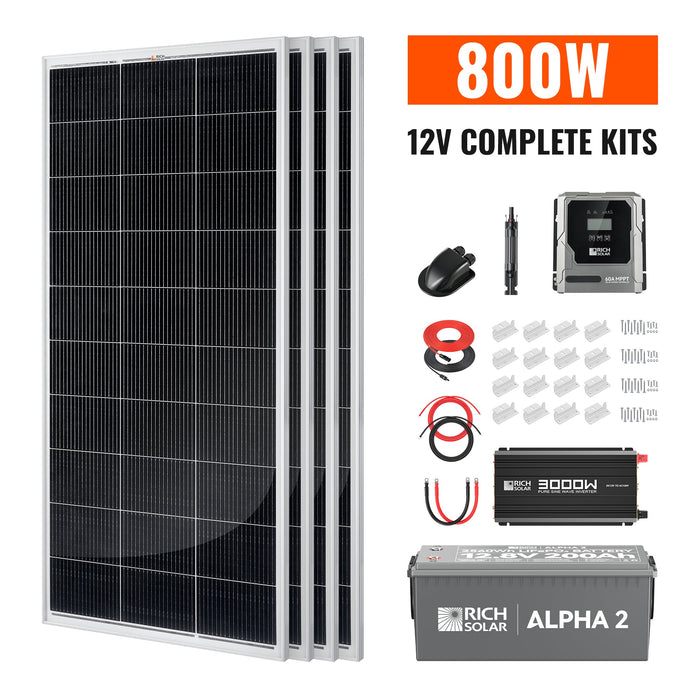

Rich Solar Complete 800W Solar Kit RS-CK800 | with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power | Complete Energy Solution

Specifications

Solar Array: 800W (4 x MEGA 200 200W panels)

Estimated Daily Production: Approximately 2.9kWh per day under 4 peak sun hours

System Voltage: 12V DC

Battery Storage: 2.56kWh (1 x ALPHA 2 12.8V 200Ah LiFePO4)

Inverter: 3,000W continuous / 6,000W surge pure sine wave (NOVA PURE 3K)

Charge Controller: BRAVO 60 60A MPPT

MEGA 200 – Maximum Power(Pmax): 200W

MEGA 200 – Maximum Power Voltage(Vmp): 18.4V

MEGA 200 – Maximum Power Current(Imp): 10.9A

MEGA 200 – Open Circuit Voltage(Voc): 21.8V

MEGA 200 – Short Circuit Current(Isc): 11.6A

MEGA 200 – Temperature Range: -40 ~ +185°F

MEGA 200 – Maximum Series Fuse Rating: 15A

MEGA 200 – Weight: 24 lb

MEGA 200 – Dimensions: 58.7 x 26.8 x 1.2 in

ALPHA 2 – Cell Type: LiFePO4 Battery

ALPHA 2 – Nominal Voltage: 12.8V

ALPHA 2 – Nominal Capacity: 200Ah

ALPHA 2 – Nominal Energy: 2560Wh

ALPHA 2 – Cycle Life: 5000 Cycles

ALPHA 2 – BMS: 100A

ALPHA 2 – Maximum Charging Current: 100A

ALPHA 2 – Maximum Continuous Discharge Current: 100A

ALPHA 2 – Maximum Discharge Current 10 Seconds: 110A

ALPHA 2 – Charge Method: CC/CV

ALPHA 2 – Charge Voltage: 14.4V ± 0.2V

ALPHA 2 – Recommend Charge Current: 50A (0.2C)

ALPHA 2 – Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)

ALPHA 2 – Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)

ALPHA 2 – Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

ALPHA 2 – External Power Draw: 100W

ALPHA 2 – Internal Heating Starts: < 41℉ (5℃)

ALPHA 2 – Internal Heating Stops: > 50℉ (10℃)

ALPHA 2 – Net Battery Weight: 48.5lb

ALPHA 2 – Size(LxWxH): 20.9x8.1x8.5in (Group 31 Size)

ALPHA 2 – Housing Material: ABS (Flame Retardant Plastic)

ALPHA 2 – Protection Class: IP65

NOVA PURE 3K – Model: RS-V3P12

NOVA PURE 3K – Rated Voltage: 12V DC

NOVA PURE 3K – Continuous Power: 3000W

NOVA PURE 3K – Peak Surge: 6000W

NOVA PURE 3K – Waveform: Pure Sine Wave

NOVA PURE 3K – Input Voltage: 12V DC

NOVA PURE 3K – Output Voltage: 120V AC

NOVA PURE 3K – Output Frequency: 60 Hz

NOVA PURE 3K – Output Efficiency: ＞88%

NOVA PURE 3K – AC Output Sockets: 3

NOVA PURE 3K – USB Power Port: 5V / 2.1A

NOVA PURE 3K – Power Output Control: AC On/Off Switch

NOVA PURE 3K – Operating Temperature: 14°F to 122°F

NOVA PURE 3K – Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)

NOVA PURE 3K – Weight: 12.1 (lb) / 5.5 (kg)

NOVA PURE 3K – Certifications: UL 458, CSA C22.2

BRAVO 60 – System Nominal Voltage: 12/24V Auto

BRAVO 60 – Max PV Open Circuit Voltage: 100V DC

BRAVO 60 – Charging Technology: MPPT

BRAVO 60 – Max PV Charging Current: 60A

BRAVO 60 – Max. Recommended PV Input Power: 900 Watt (12V) / 1800 Watt (24V)

BRAVO 60 – Charge Conversion Efficiency: ≤98%

BRAVO 60 – MPPT Tracking Efficiency: >99.5%

BRAVO 60 – Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO

BRAVO 60 – Housing Case Color: Black / Grey

BRAVO 60 – IP Grade: IP43 for Inside PCBA, IP22 for Connection Area

BRAVO 60 – Net Weight: 1.90kg / 4.18lb

BRAVO 60 – Dimensions (L×W×H): 201×195×85mm (7.9×7.7×3.3in)

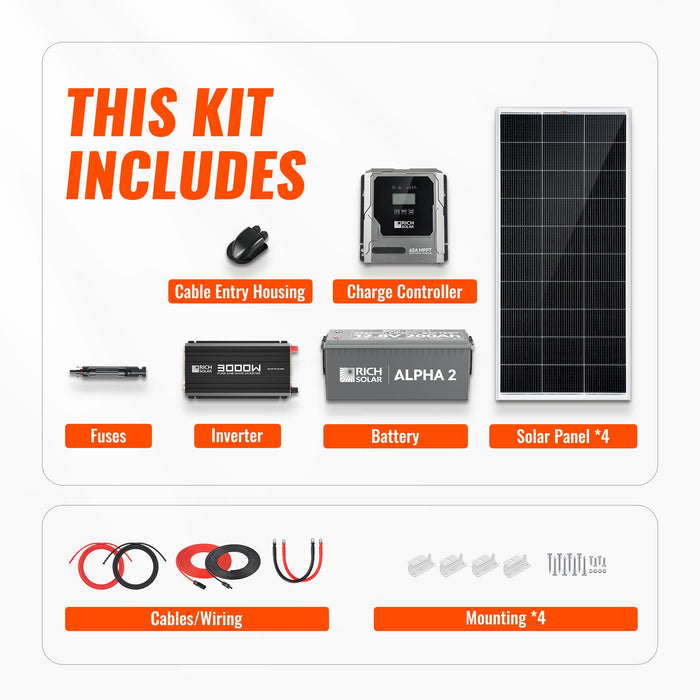

In the Box

• 4 x MEGA 200 12V 200W Solar Panels (RS-M200)
• 1 x Bravo 60A MPPT Charge Controller (RS-MPPT60PB)
• 1 x ALPHA 2 12V 200Ah Lithium Battery (RS-B122S)
• 1 x NOVA PURE 3K 12V 3000W Inverter (RS-V3P12)
• 4 x Z Bracket sets (one set of 4) (RS-ZB4C)
• 1 x Cable Entry Housing (RS-C2B)
• 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
• 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
• 1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
• 1 x 4/0 AWG 3/8" Battery Cables 3 ft Cable Set (Inverter to Battery) (RS-4/0A3F3)

MEGA 200 Solar Panel Spec Sheet
ALPHA 2 12V 200Ah LiFePO4 Battery Spec Sheet
NOVA PURE 3K 12V 3000W Pure Sine Wave Inverter Spec Sheet
BRAVO 60 60A MPPT Solar Charge Controller Spec Sheet
ALPHA 2 12V 200Ah LiFePO4 Battery User Manual
NOVA PURE 3K 12V 3000W Pure Sine Wave Inverter User Manual
BRAVO 60 60A MPPT Solar Charge Controller User Manual

Rich Solar Limited Warranty

Warranty Period
Solar panels: 25-year limited power output warranty and 10-year workmanship warranty (prorated)
ALPHA 2 battery: 5-year limited warranty (prorated)
NOVA PURE 3K pure sine wave inverter: 2-year limited warranty (prorated)
BRAVO 60 MPPT charge controller: 2-year limited warranty (prorated)
Cables, brackets, fuses and other accessories: 1-year limited warranty

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

10-Year Prorated Warranty Rates

• Years 1-3: Full replacement (100% coverage)
• Year 4: 85% coverage
• Year 5: 70% coverage
• Year 6: 55% coverage
• Year 7: 40% coverage
• Year 8: 25% coverage
• Year 9: 10% coverage
• Year 10: 5% coverage

5-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 80% coverage
• Year 3: 60% coverage
• Year 4: 40% coverage
• Year 5: 20% coverage

2-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 50% coverage

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged within seven (7) days after purchase and at least once every 6 months thereafter.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.

Shipping is typically through freight carriers and the actual shipping time is contingent on your location and the specific warehouse dispatching your order. Please allow for a 1-3 business day processing period before shipment, and an estimated delivery time of up to 7 business days. Your confirmation email will include delivery details and we will send you a tracking number as soon as one is available. If you ordered several separate items, you may receive multiple tracking numbers. Once the item has been shipped, the freight service will contact you to coordinate the date and time of delivery. If you require any special accommodations during delivery please let us know as soon as possible and let the delivery company know when arranging the appointment.

Typically, orders will be dropped off either curbside or outside your front door or garage. It is your responsibility to bring the order inside or to its final destination and to remove any existing items.

Depending on the item, parts may be shipped in multiple boxes, and assembly may be required. When your order is delivered, please check that you have all pieces of the item and that nothing is damaged. If your order is damaged during transit and external damage is visible, note the damage immediately, write it on the delivery documents, take photos and/or videos, and refuse shipment. If there is no visible external damage, accept the package but note “subject to concealed damage” on the delivery documents. Any damage upon delivery needs to be reported within 24 hours of delivery or you may not be eligible for a refund. For additional information on submitting claims, as well as incorrect item exchanges, and replacements, please see our Refund Policy.

For more information about shipping, please visit our complete Shipping Policy.
