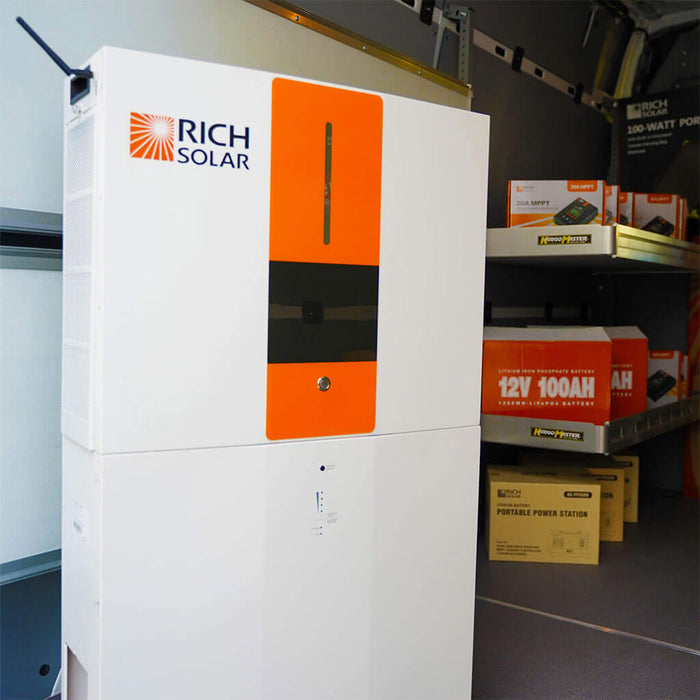

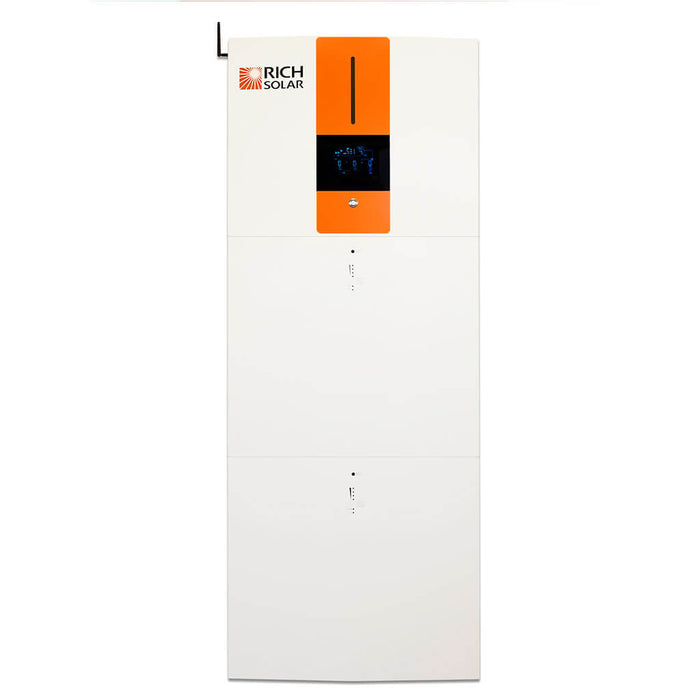

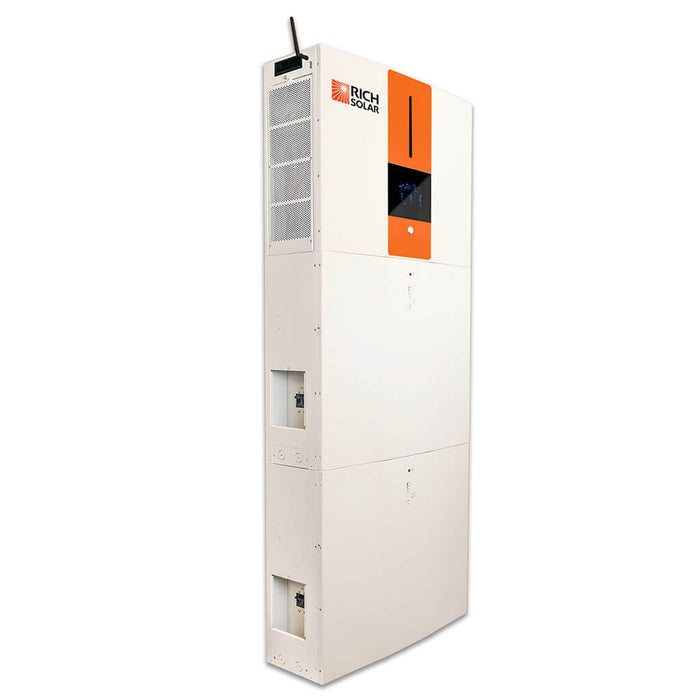

Rich Solar All-in-One Energy Storage System RS-A10 | 6500W 120V Inverter, Dual MPPT, 5.12kWh LiFePO4 Battery

Specifications

Model: RS-A10

Maximum PV Input Power: 8000W

Rated Output Power: 6500W

Maximum Charging Power: 6500W

MPPT Range @ Operating Voltage: 90 ~ 230 VDC

Maximum PV Array Open Circuit Voltage: 250 VDC

Maximum Solar Charge Current: 120A

Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18A

AC Acceptable Input Voltage Range: 90–140 VAC (For Computers); 80–140 VAC (For Home Appliances)

Maximum AC Input Current: 60A

Nominal Output Voltage (Battery Mode): 120 VAC

Maximum Conversion Efficiency (DC/AC): 93%

Nominal DC Voltage: 48 VDC

Maximum Charging Current (Inverter/Charger): 120A

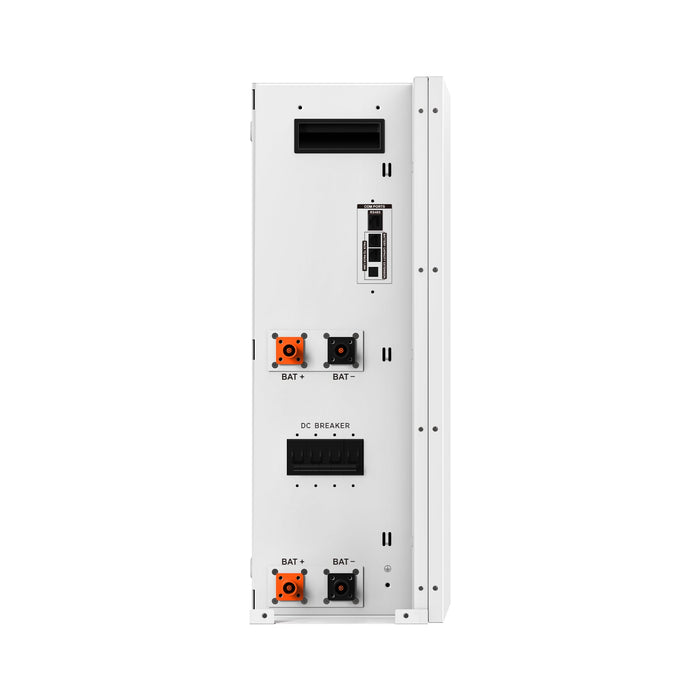

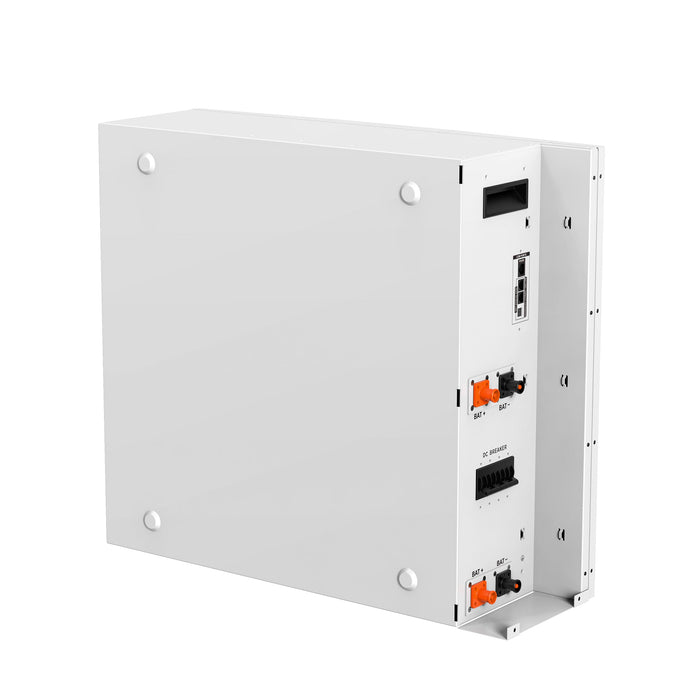

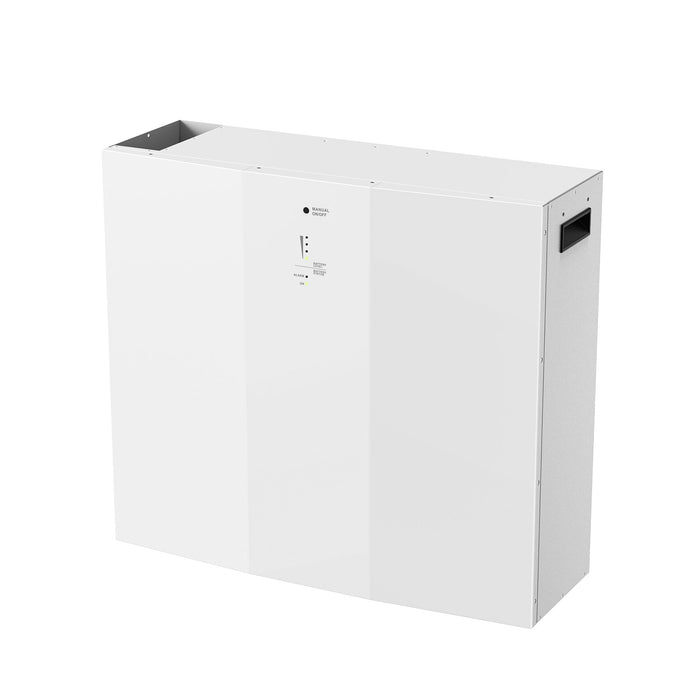

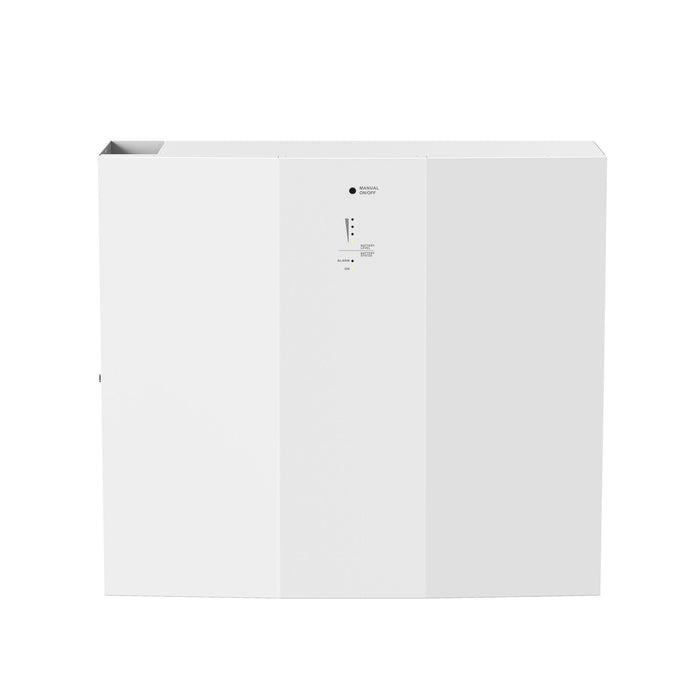

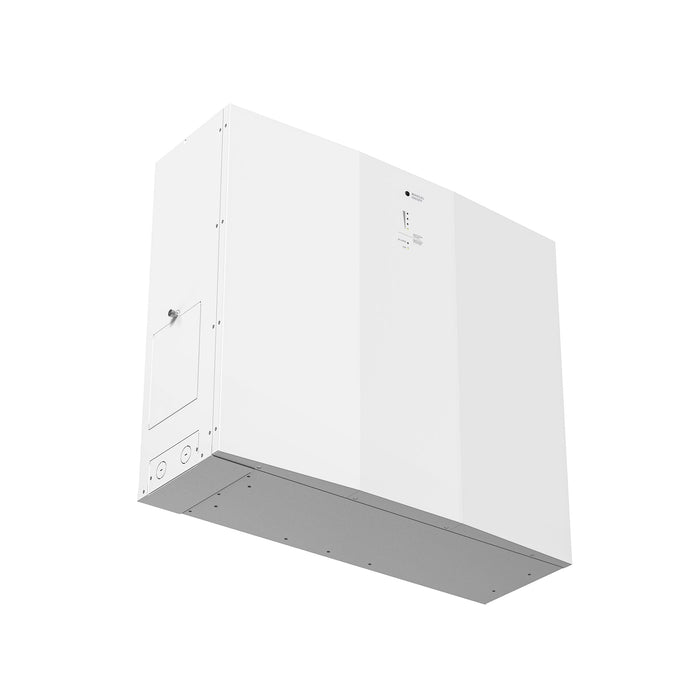

Battery Dimensions (D × W × H): 8.4" × 24.4" × 19.7"

Battery Net Weight: 99 lb

Battery Capacity: 5120Wh

Battery Nominal Voltage: 51.2VDC

Full Charge Voltage (FC): 56V

Full Discharge Voltage (FD): 42V

Typical Capacity: 100Ah

Max Continuous Discharging Current: 120A

Max Discharging Current: 192A at 1 min

Protection: BMS, Breaker

Float Charge Voltage: 52.5V

Battery Standard Charge Current: 20A (0.2C)

Battery Maximum Charge Current: 50A (0.5C)

Standard Charge Method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C

Inner Resistance: ≤20mΩ

System Dimensions (D × W × H): 19.7" × 26" × 49.2"

System Net Weight: 287 lb

Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B

All-in-One ESS Spec Sheet
All-in-One ESS User Manual

Rich Solar Limited Warranty

Warranty Period
1-year limited warranty (product page does not state a warranty; see issues)

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged within seven (7) days after purchase and at least once every 6 months thereafter.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.
