Rich Solar Complete Off-Grid Solar Kit RS-CBK1301A | 30 x Mega 410 | 13,000W 120/240V Output | 48VDC

Specifications

Solar Array: 12.3kW: 30 x MEGA 410 410W panels (RS-M410)

Estimated Daily Production: Approximately 44.3kWh per day under 4 peak sun hours

System Voltage: 48V DC battery / 120/240V AC output

Battery Storage: 20.48kWh (4 x ALPHA 5 PRO 51.2V 100Ah LiFePO4)

Inverter System: 2 x NOVA 6548: 13,000W continuous / 26,000W surge combined, dual 120A MPPT

No. of Panels: 30 x MEGA 410 Watt Solar Panels

Wattage Per Panel: 410W

Total Wattage of Panels: 12.3KW

No. of Batteries: 4 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries

No. of Hybrid Solar Inverters: 2 x NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverters

MEGA 410 – Maximum Power(Pmax): 410W

MEGA 410 – Maximum Power Voltage(Vmp): 31.3V

MEGA 410 – Maximum Power Current(Imp): 13.1A

MEGA 410 – Open Circuit Voltage(Voc): 37.5V

MEGA 410 – Short Circuit Current(Isc): 13.8A

MEGA 410 – Maximum System Voltage(Vmax): 1500VDC

MEGA 410 – Temperature Range: -40°F ~ 185°F

MEGA 410 – Max Series Fuse Rating: 25A

MEGA 410 – Weight: 45.2 lb

MEGA 410 – Dimensions: 67.8 x 44.7 x 1.2 in

ALPHA 5 PRO – Nominal Voltage: 51.2V

ALPHA 5 PRO – Nominal Capacity (Electrical Specifications): 100Ah

ALPHA 5 PRO – Minimum Capacity: 99.5Ah

ALPHA 5 PRO – Nominal Energy: 5120Wh

ALPHA 5 PRO – Charging Voltage: 56V

ALPHA 5 PRO – Discharging Cutoff Voltage: 44.8V

ALPHA 5 PRO – Maximum Charging Current (Operating Specifications): 100A

ALPHA 5 PRO – Continuous Charge Current: 100A

ALPHA 5 PRO – Maximum Discharge Current: 100A

ALPHA 5 PRO – Battery Dimensions: 17.7"L x 17.8"W x 5.2"H

ALPHA 5 PRO – Battery Weight: 99.2 lb

ALPHA 5 PRO – Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)

ALPHA 5 PRO – Server Rack Weight: 196.2 lb

ALPHA 5 PRO – Operation Voltage: 43.2~58.4V

ALPHA 5 PRO – Maximum Charging Current (BMS Operation): 100A

ALPHA 5 PRO – Maximum Discharging Current: 100A

ALPHA 5 PRO – Maximum Charge Voltage (CC/CV): 57.6V

ALPHA 5 PRO – Overcharge Protection Voltage (Battery): 58.4V

ALPHA 5 PRO – Overcharge Protection Release Voltage (Battery): 54V

ALPHA 5 PRO – Over Discharge Protection Voltage (Battery): 43.2V

ALPHA 5 PRO – Over Discharge Protection Release Voltage (Battery): 47.2V

ALPHA 5 PRO – Over Discharge Primary Charge Overcurrent Protection Value: 110A

ALPHA 5 PRO – First Stage Charge Over Current Delay: 1s

ALPHA 5 PRO – Primary Discharge Overcurrent Protection Value: 110A

ALPHA 5 PRO – Primary Discharge Overcurrent Protection Delay: 1s

ALPHA 5 PRO – Secondary Discharge Overcurrent Protection Value: 150A

ALPHA 5 PRO – Secondary Discharge Overcurrent Protection Delay: 500ms

ALPHA 5 PRO – Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);

ALPHA 5 PRO – Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)

ALPHA 5 PRO – Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)

ALPHA 5 PRO – Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

ALPHA 5 PRO – Certification: UL1973, UL9540A, FCC

ALPHA 5 PRO – Max. Expansion: 15 pcs in parallel

ALPHA 5 PRO – Communication Ports: RS485/RS232/CAN

ALPHA 5 PRO – Warranty: 10 Years Manufacturer Defect

NOVA 6548 – Model: RS-H6548

NOVA 6548 – Rated Inverter Power: 6500VA/6500W

NOVA 6548 – PARALLEL CAPABILITY: Yes, 6 units

NOVA 6548 – Voltage: 120 VAC

NOVA 6548 – Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)

NOVA 6548 – Frequency Range: 50 Hz/60 Hz (Auto Sensing)

NOVA 6548 – AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%

NOVA 6548 – Surge Power: 2* rated power for 5 seconds

NOVA 6548 – Efficiency (Peak): 91%

NOVA 6548 – Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)

NOVA 6548 – Waveform: Pure Sine Wave

NOVA 6548 – Optional DC Voltage: 12 VDC ± 7%, 100W

NOVA 6548 – Battery Voltage: 48 VDC

NOVA 6548 – Float Charging Voltage: 54 VDC

NOVA 6548 – Overcharge Protection: 66 VDC

NOVA 6548 – Solar Charger Type: MPPT

NOVA 6548 – Maximum PV Array Power: 8000W (4000W x 2)

NOVA 6548 – MPPT Operating Voltage Range: 90 ~ 450 VDC

NOVA 6548 – Maximum PV Array Open Circuit Voltage: 550 VDC

NOVA 6548 – Maximum Solar Charge Current: 120A

NOVA 6548 – Maximum AC Charge Current: 120A

NOVA 6548 – Maximum Charge Current: 120A

NOVA 6548 – Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in

NOVA 6548 – Net Weight: 40.6 lb

NOVA 6548 – Communication Interface: USB/RS232/RS485/WiFi/Dry-contact

NOVA 6548 – Humidity: 5% to 95% Relative Humidity (Non-condensing)

NOVA 6548 – Operating Temperature: -14°F to 104°F

NOVA 6548 – Storage Temperature: 5°F to 140°F

NOVA 6548 – Compliance Safety: UL 1741 by TUV

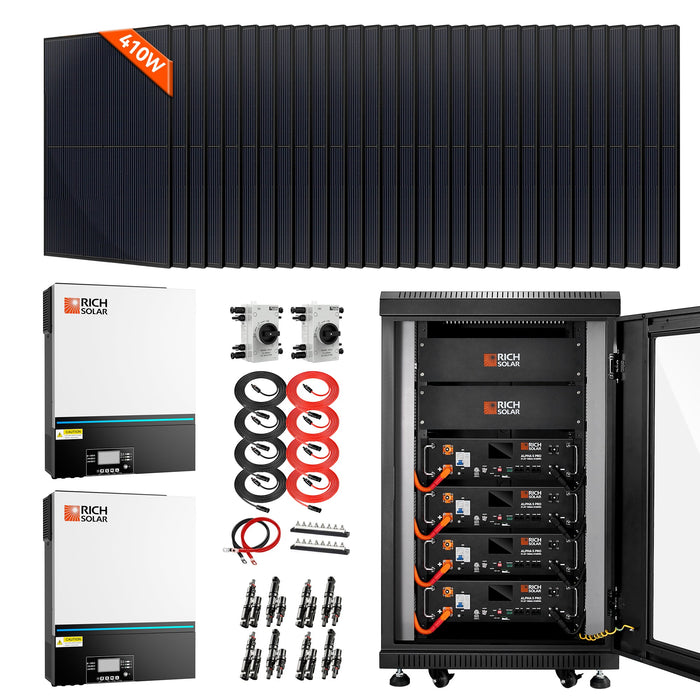

In the Box

• 30 x MEGA 410 24V 410W Solar Panels (RS-M410)
• 2 x 6500W 48V Off-grid Hybrid Solar Inverters (RS-H6548)
• 4 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
• 2 x Solar PV DC Quick Disconnect Switches (RS-i4)
• 2 x 600 AMP Busbars
• 4 x 4 ft 2/0 Gauge AWG Wire Sets 3/8"
• 8 x 10 AWG 50 ft Solar Extension Cables (RS-50102)
• 4 x 10 AWG 30 ft Solar Extension Cables (RS-30102-T2)
• 1 x Battery Rack

MEGA 410 Solar Panel Spec Sheet
NOVA 6548 48V 6500W Inverter Spec Sheet
ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery Spec Sheet
NOVA 6548 48V 6500W Inverter User Manual
ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery User Manual

Rich Solar Limited Warranty

Warranty Period
Solar panels: 25-year limited power output warranty and 10-year workmanship warranty (prorated)
ALPHA 5 PRO batteries: 10-year limited warranty (prorated)
NOVA 6548 hybrid inverters: 3-year limited warranty (prorated)
Cables, brackets, fuses and other accessories: 1-year limited warranty

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

10-Year Prorated Warranty Rates

• Years 1-3: Full replacement (100% coverage)
• Year 4: 85% coverage
• Year 5: 70% coverage
• Year 6: 55% coverage
• Year 7: 40% coverage
• Year 8: 25% coverage
• Year 9: 10% coverage
• Year 10: 5% coverage

3-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 65% coverage
• Year 3: 30% coverage

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged within seven (7) days after purchase and at least once every 6 months thereafter.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.
