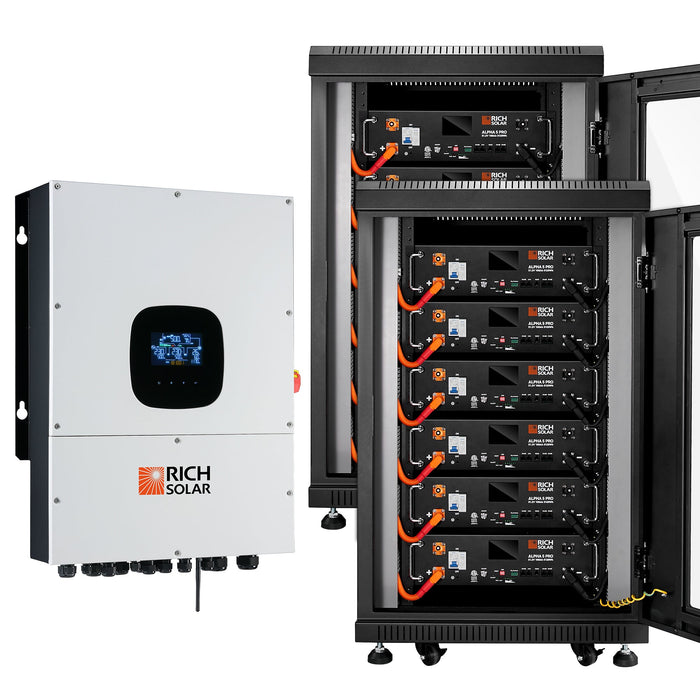

Rich Solar Nova 12K PV Hybrid Inverter Solar Kit SRX12-H12KX1-NO | 61.44kWh Server Lithium Battery [Kit-SR0002]

Specifications

Solar Array: Not included

System Voltage: 48V DC battery / 120/240V split-phase AC output

Battery Storage: 61.44kWh (12 x ALPHA 5 PRO 51.2V 100Ah LiFePO4)

Inverter: NOVA 12K: 12,000W max PV input, 10,000W rated output, 2 MPPT trackers

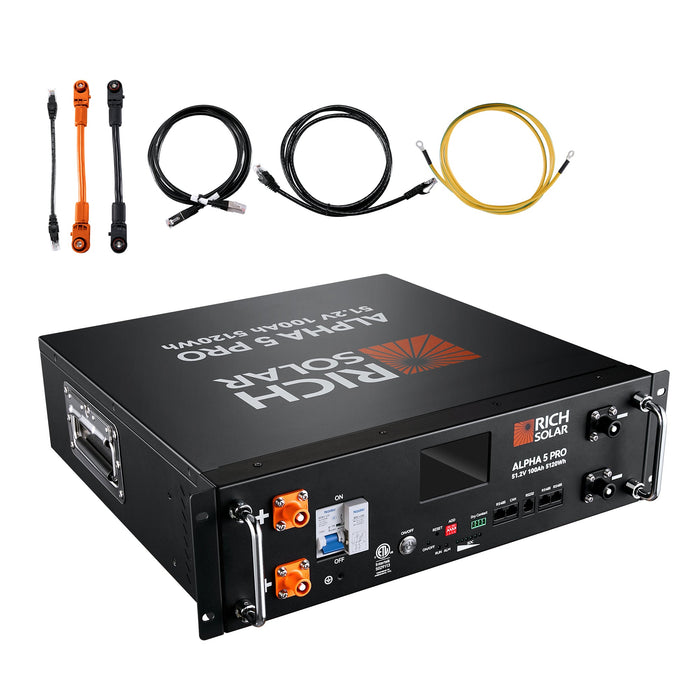

ALPHA 5 PRO – Nominal Voltage: 51.2V

ALPHA 5 PRO – Nominal Capacity (Electrical Specifications): 100Ah

ALPHA 5 PRO – Minimum Capacity: 99.5Ah

ALPHA 5 PRO – Nominal Energy: 5120Wh

ALPHA 5 PRO – Charging Voltage: 56V

ALPHA 5 PRO – Discharging Cutoff Voltage: 44.8V

ALPHA 5 PRO – Maximum Charging Current (Operating Specifications): 100A

ALPHA 5 PRO – Continuous Charge Current: 100A

ALPHA 5 PRO – Maximum Discharge Current: 100A

ALPHA 5 PRO – Battery Dimensions: 17.7"L x 17.8"W x 5.2"H

ALPHA 5 PRO – Battery Weight: 99.2 lb

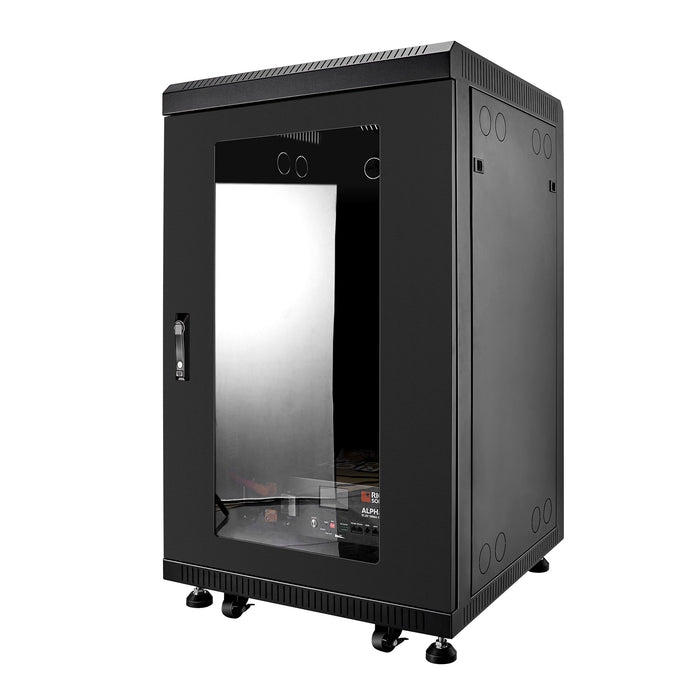

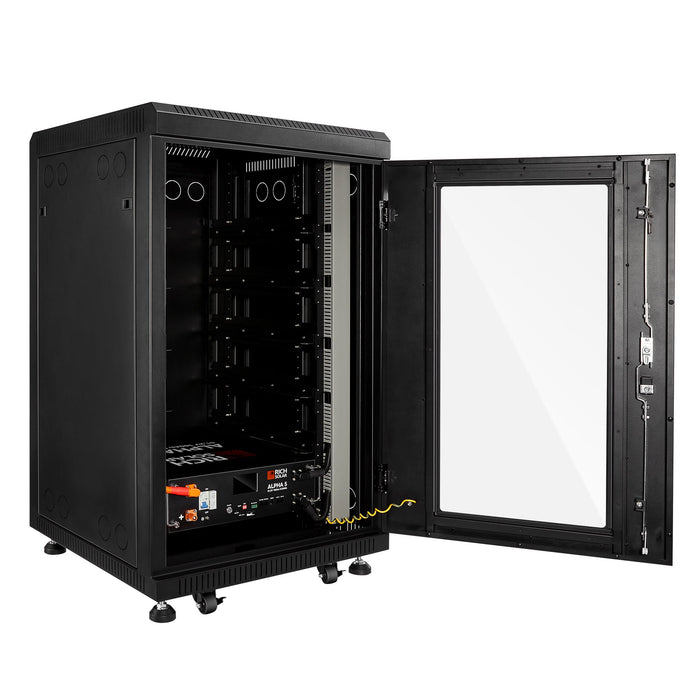

ALPHA 5 PRO – Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)

ALPHA 5 PRO – Server Rack Weight: 196.2 lb

ALPHA 5 PRO – Operation Voltage: 43.2~58.4V

ALPHA 5 PRO – Maximum Charging Current (BMS Operation): 100A

ALPHA 5 PRO – Maximum Discharging Current: 100A

ALPHA 5 PRO – Maximum Charge Voltage (CC/CV): 57.6V

ALPHA 5 PRO – Overcharge Protection Voltage (Battery): 58.4V

ALPHA 5 PRO – Overcharge Protection Release Voltage (Battery): 54V

ALPHA 5 PRO – Over Discharge Protection Voltage (Battery): 43.2V

ALPHA 5 PRO – Over Discharge Protection Release Voltage (Battery): 47.2V

ALPHA 5 PRO – Over Discharge Primary Charge Overcurrent Protection Value: 110A

ALPHA 5 PRO – First Stage Charge Over Current Delay: 1s

ALPHA 5 PRO – Primary Discharge Overcurrent Protection Value: 110A

ALPHA 5 PRO – Primary Discharge Overcurrent Protection Delay: 1s

ALPHA 5 PRO – Secondary Discharge Overcurrent Protection Value: 150A

ALPHA 5 PRO – Secondary Discharge Overcurrent Protection Delay: 500ms

ALPHA 5 PRO – Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);

ALPHA 5 PRO – Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)

ALPHA 5 PRO – Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)

ALPHA 5 PRO – Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

ALPHA 5 PRO – Certification: UL1973, UL9540A, FCC

ALPHA 5 PRO – Max. Expansion: 15 pcs in parallel

ALPHA 5 PRO – Communication Ports: RS485/RS232/CAN

ALPHA 5 PRO – Warranty: 10 Years Manufacturer Defect

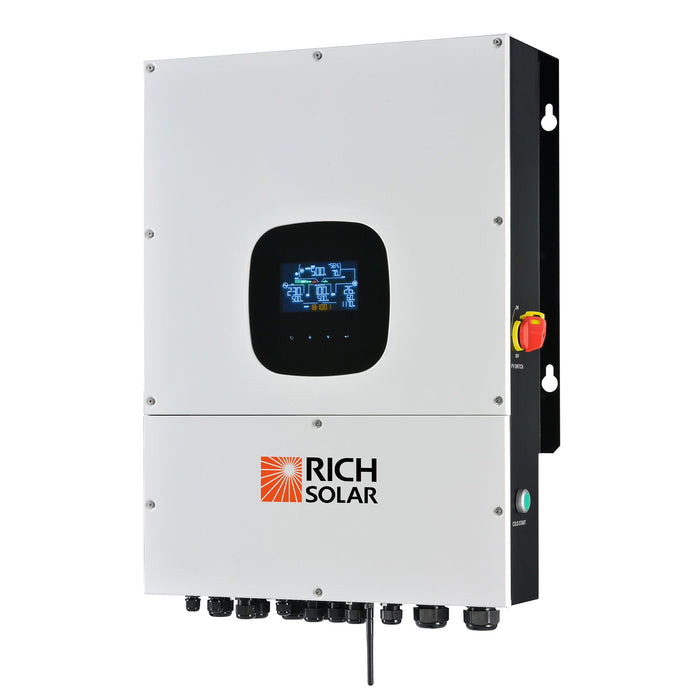

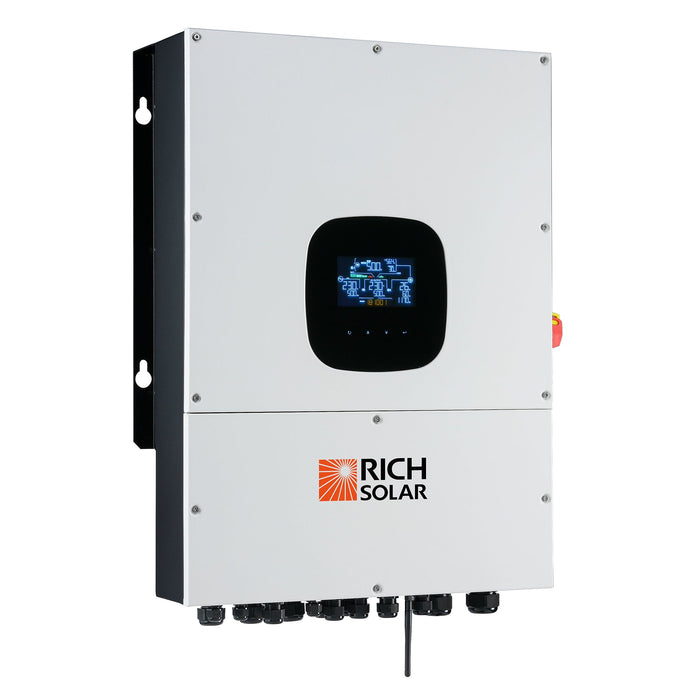

NOVA 12K – Maximum PV Input Power: 12000W

NOVA 12K – Maximum DC Voltage: 600VDC

NOVA 12K – Start-up Voltage/Initial Feeding Voltage: 125VDC/160VDC

NOVA 12K – MPPT Voltage Range: 120VDC-550VDC

NOVA 12K – Number of MPPT Trackers/Maximum Input Current: 2/18A

NOVA 12K – Rated Output Power: 10000VA/10000W

NOVA 12K – Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)

NOVA 12K – Output Voltage Range: 105.5–132VAC per phase

NOVA 12K – Nominal Output Current: 41.5A per phase

NOVA 12K – Battery DC Voltage Range: 40–62VDC/48VDC

NOVA 12K – Maximum Solar Charging Current: 200A

NOVA 12K – Maximum AC Charging Current: 200A

NOVA 12K – Maximum Charging Current: 200A

NOVA 12K – Operating Temperature Range: -13°F to 140°F(>113°F derating)

NOVA 12K – Protection Degree: IP65

NOVA 12K – Communication Port: RS232, RS485, Wi-Fi, USB

NOVA 12K – Dimension (LxWxH): 8.5x20.3x28.1in/215.5x515x715mm

NOVA 12K – Net Weight: 99.2lb/45kg

NOVA 12K – Certificate: UL1741SA, UL1741SB, CSA 22.2.107.1, CEC

In the Box

• 1 x NOVA 12K PV Hybrid Inverter 12000W PV Input | 10000W Output | 48V 120/240V Split Phase (RS-H12K)
• 12 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
• 2 x Battery Racks

NOVA 12K 12000W Inverter Spec Sheet
ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery Spec Sheet
NOVA 12K 12000W Inverter User Manual
ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery User Manual

Rich Solar Limited Warranty

Warranty Period
ALPHA 5 PRO batteries: 10-year limited warranty (prorated)
NOVA 12K hybrid inverter: 3-year limited warranty (prorated)
Cables, brackets, fuses and other accessories: 1-year limited warranty

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

10-Year Prorated Warranty Rates

• Years 1-3: Full replacement (100% coverage)
• Year 4: 85% coverage
• Year 5: 70% coverage
• Year 6: 55% coverage
• Year 7: 40% coverage
• Year 8: 25% coverage
• Year 9: 10% coverage
• Year 10: 5% coverage

3-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 65% coverage
• Year 3: 30% coverage

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged within seven (7) days after purchase and at least once every 6 months thereafter.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.

Shipping is typically through freight carriers and the actual shipping time is contingent on your location and the specific warehouse dispatching your order. Please allow for a 1-3 business day processing period before shipment, and an estimated delivery time of up to 7 business days. Your confirmation email will include delivery details and we will send you a tracking number as soon as one is available. If you ordered several separate items, you may receive multiple tracking numbers. Once the item has been shipped, the freight service will contact you to coordinate the date and time of delivery. If you require any special accommodations during delivery please let us know as soon as possible and let the delivery company know when arranging the appointment.

Typically, orders will be dropped off either curbside or outside your front door or garage. It is your responsibility to bring the order inside or to its final destination and to remove any existing items.

Depending on the item, parts may be shipped in multiple boxes, and assembly may be required. When your order is delivered, please check that you have all pieces of the item and that nothing is damaged. If your order is damaged during transit and external damage is visible, note the damage immediately, write it on the delivery documents, take photos and/or videos, and refuse shipment. If there is no visible external damage, accept the package but note “subject to concealed damage” on the delivery documents. Any damage upon delivery needs to be reported within 24 hours of delivery or you may not be eligible for a refund. For additional information on submitting claims, as well as incorrect item exchanges, and replacements, please see our Refund Policy.

For more information about shipping, please visit our complete Shipping Policy.
