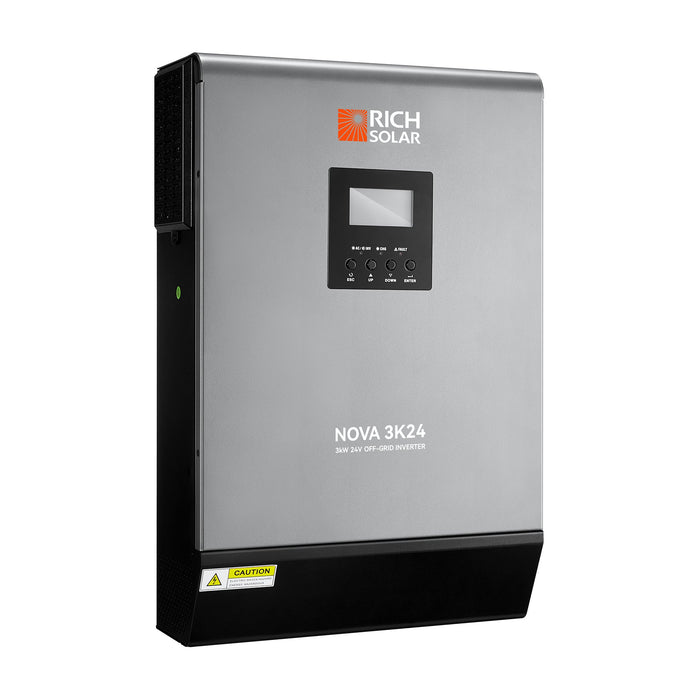

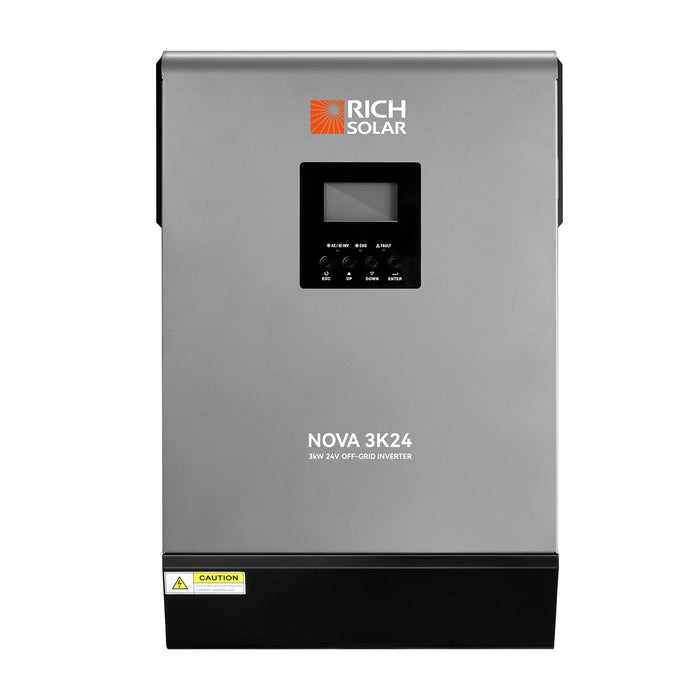

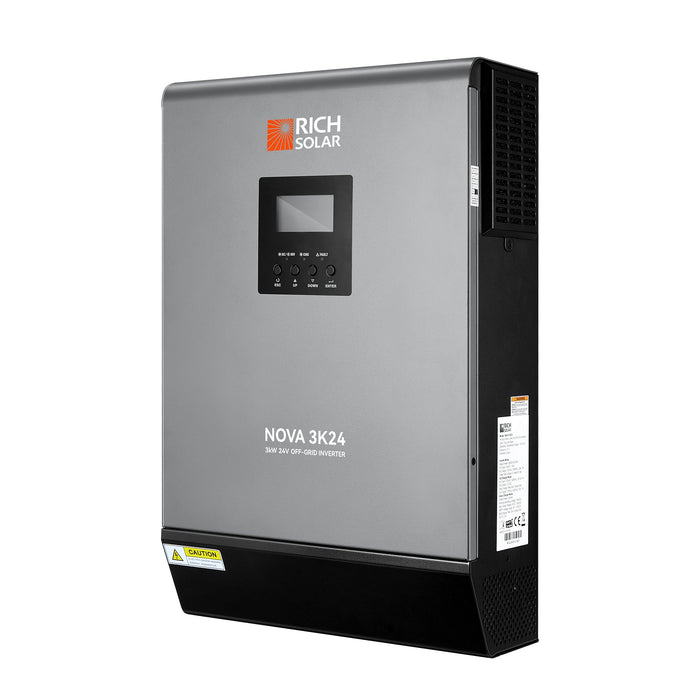

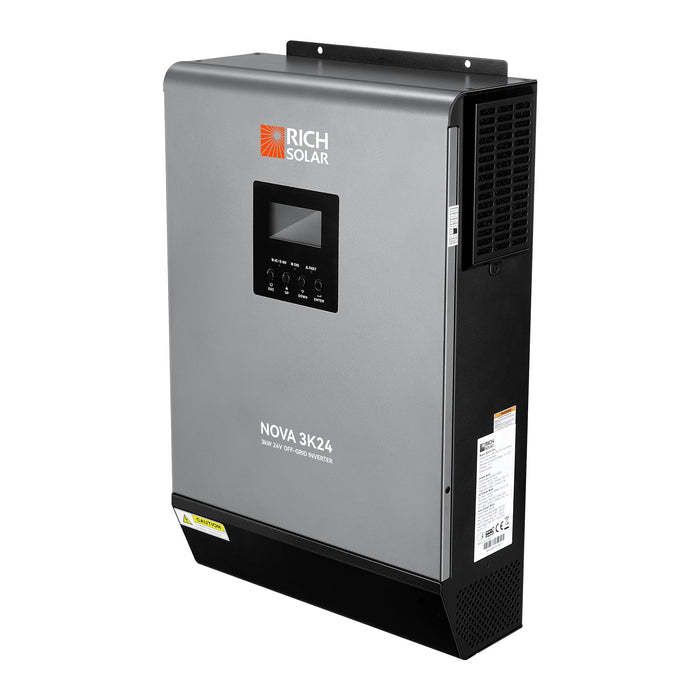

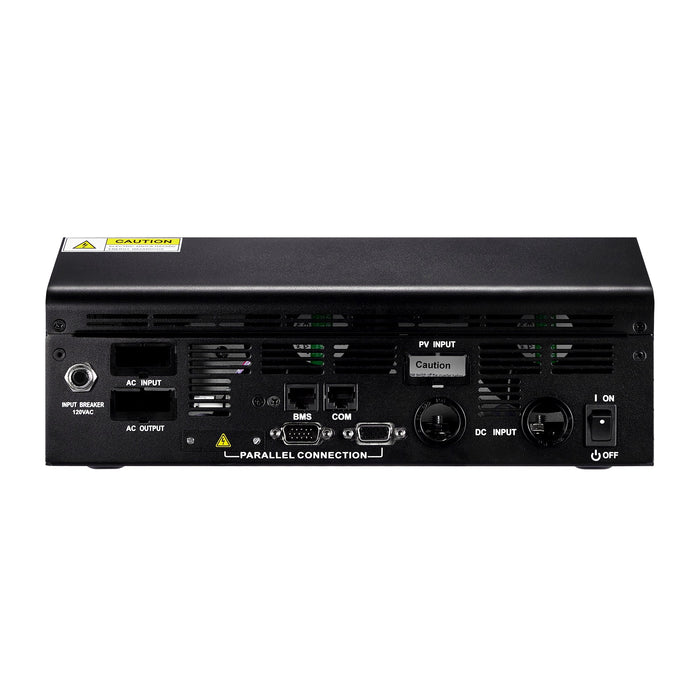

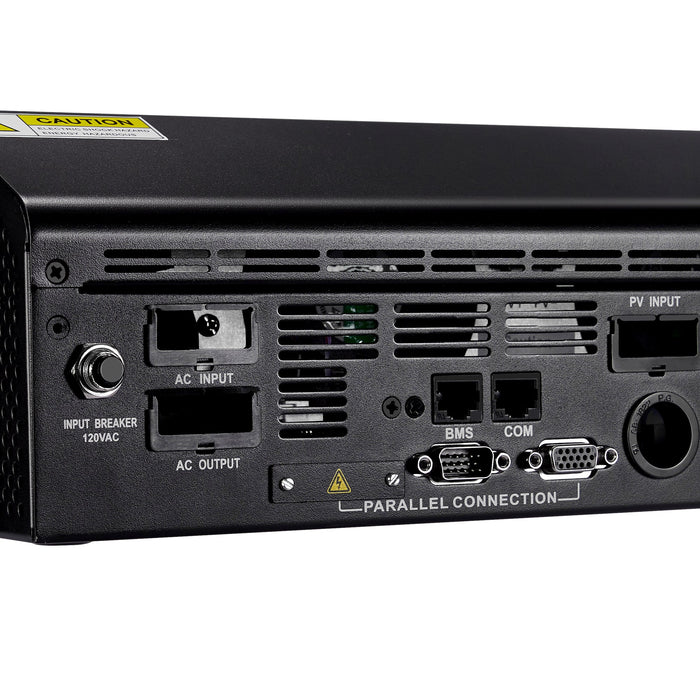

Rich Solar Nova Max 3K RS-H3024 | 3000 Watt (3kW) 24 Volt Off-Grid Hybrid Solar Inverter | Powerful 3000W 24V Hybrid Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid Inverter

Specifications

Rated PV Power: 3000W

Maximum PV Open Circuit Voltage: 250V DC

PV Array MPPT Voltage Range: 90V DC–230V DC

Maximum Input Current: 22A

Start-up Voltage: 80V ± 5V DC

Input Voltage Waveform: Sinusoidal (Utility or Generator)

Nominal Input Voltage: 120V AC

Maximum AC Input Voltage: 150V AC

Nominal Input Frequency: 50Hz / 60Hz (Auto Detection)

Transfer Time: 10ms (UPS) / 20ms (Appliances)

Efficiency (Line Mode): >95%

Rated Power: 3kVA / 3kW

Surge Power: 6000W (5 Seconds)

Output Voltage: 120V AC ±5%

Output Waveform: Pure Sine Wave

Output Frequency: 50Hz / 60Hz

Peak Efficiency: 91%

Nominal DC Input Voltage: 24V DC

MPPT Charge Controller: 80A

Bulk Charging Voltage: 29.2V DC (Flooded) / 28.8V DC (AGM / Gel)

Float Charging Voltage: 27.6V DC

Overcharge Protection: 33V DC

Operating Temperature: 14°F to 104°F

Storage Temperature: 5°F to 140°F

Dimensions: 5.6 × 12.1 × 18.80 in

Net Weight: 26.5 lb

NOVA MAX 3K Spec Sheet
NOVA MAX 3K User Manual

Rich Solar Limited Warranty

Warranty Period
3-year limited warranty (prorated)

This Limited Warranty from Rich Solar warrants to the original consumer purchaser that this Rich Solar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period, including any applicable prorated warranty coverage. A sales receipt or other reasonable proof of purchase is required to establish the start of the warranty period. Registering your product on Rich Solar's Product Registration Form within thirty (30) days of purchase can also establish the start date, though coverage is not conditioned on registration.

3-Year Prorated Warranty Rates

• Year 1: Full replacement (100% coverage)
• Year 2: 65% coverage
• Year 3: 30% coverage

Remedy
Rich Solar will, at its option, repair the product at no charge using new or refurbished parts, or exchange it for a product that is new or manufactured from new or serviceable used parts and is at least functionally equivalent. A replacement product or part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever is longer.

Exclusions
This warranty is limited to the original consumer buyer and is not transferable. It does not apply to damage caused by accident, abuse, misuse, misapplication, or non-Rich Solar products; damage caused by service performed by anyone other than Rich Solar; products or parts modified without Rich Solar's written permission; products with a removed or defaced Rich Solar serial number; or products purchased through an online auction house.

Obtaining Warranty Service
Contact Rich Solar customer service at 1-800-831-9889 or sales@richsolar.com. If the issue is covered, you will receive a Return Material Authorization (RMA) number. Rich Solar ships repaired or replacement products to North American locations at its expense.

Visit Rich Solar's Warranty Page to review the full warranty terms.
