Epoch Batteries 12V 460Ah V2 Elite Series C12460A | LiFePO4 Battery (5.89kWh) | Heated, Bluetooth, IP67, Victron Can

Specifications

Model / SKU: C12460A

Product name: Epoch 12V 460Ah V2 Elite Series LiFePO4 Battery

Series: V2 Elite Series

Battery type: Heated Bluetooth LiFePO4 deep-cycle battery with Victron communication

Replacing a Group 8D battery: Confirm tray fit, hold-down and lid clearance against the dimensions below

Chemistry: LiFePO4 / Lithium iron phosphate

Cell type: Prismatic LiFePO4

Cell configuration: 4S2P (230Ah cells)

Bluetooth: Yes — Bluetooth 4.0 through the included battery gauge; Epoch Li-Ion app (iOS and Android)

Victron communications: Yes — CAN bus at 500 kbit/s to compatible Victron GX devices (BMS-CAN or VE.Can port)

Internal heating: Yes

External power button and battery gauge: Included

Cycle life: 3,500+ cycles to 70% remaining capacity (25°C)

Maintenance: Maintenance-free

Nominal voltage: 12.8V (3.2V per cell)

Nominal capacity: 460Ah (0.5C, 25°C)

Energy stored: 5,888Wh / 5.89kWh

Operating voltage range: 10.0V – 14.6V

Maximum charge voltage: 14.6V (3.65V per cell)

Minimum voltage: 10.0V (2.5V per cell)

Self-discharge: ≤3% per month (100% SOC, 25°C)

State of charge at shipment: 30% ± 3%; charge fully before first use

Max continuous discharge: 230A (0.5C, also the recommended continuous discharge)

Max continuous charge current: 230A (0.5C, also the recommended continuous charge)

Max charge current: 400A for 5 seconds

Max discharge current: 500A for 30 seconds

Peak discharge output: 1,300A for 1 second

Continuous power at 12.8V: 2,944W DC (before inverter losses)

Series connections: Maximum 4 batteries in series (51.2V nominal)

Parallel connections: Maximum 16 batteries in parallel (7,360Ah); set the DIP switches for the bank

Victron daisy-chain support: Up to 16 batteries in parallel on one compatible system

Series-parallel: Not covered by the published DIP switch settings; contact Epoch before designing one

Charge temperature range: -30°C to 55°C / -22°F to 131°F ambient, with self-heating

Cell charge temperature range: 0°C to 55°C / 32°F to 131°F

Discharge temperature range: -20°C to 55°C / -4°F to 131°F

Short-term storage temperature: -20°C to 45°C / -4°F to 113°F, up to 1 month

Recommended long-term storage temperature: 0°C to 35°C / 32°F to 95°F, up to 1 year

Best performance: 15°C to 25°C / 59°F to 77°F

Low-temperature charge protection: Yes: charging stops at 0°C and resumes at 5°C (cell temperature)

High and low temperature disconnects: Yes

Length: 20.86 in / 529.8 mm

Width: 8.65 in / 219.8 mm

Height: 12.06 in / 306.3 mm (including terminal posts)

Case height (body): 11.54 in / 293.0 mm

Terminal spacing: 17.99 in / 457.0 mm, center to center

Rounded dimensions: Approx. 20.9 in L × 8.7 in W × 12.1 in H

Weight: 97 lbs / approx. 44 kg

Case material: ABS and PC blend

Case flame rating: UL94 V-0

Enclosure protection: IP67: dust-tight; temporary immersion to 1 m for 30 minutes. Not rated for water jets, pressure washing or continuous submersion

Terminal size: M8 threaded

Terminal torque: 8–12 N·m (71–106 lbf·in)

Cooling method: Natural / passive convection

Mounting: Upright; six M8 nuts for the optional Epoch V2 & V2-T Mounting Hardware (8D battery bracket), 125 mm (4.92 in) spacing

Charger type: Lithium (LiFePO4) compatible, CC/CV; program every charge source, including Victron equipment, to these settings

Recommended charge current: 230A (0.5C) per battery

Absorption voltage: 14.2V

Absorption time: 15 minutes per battery in the bank

Float voltage: 13.5V

Re-bulk voltage: 13.3V

Equalization: Off / disabled

Temperature compensation: Disabled / 0mV per °C

BMS high-voltage cutoff: 14.6V

SoC recalibration voltage: 14.6V manual / custom algorithm when operating under Victron communications

Victron setup: Turn DVCC on and set the controlling BMS and the battery monitor to Epoch on a compatible Victron GX device

Overcharge protection: 3.65 ± 0.01V per cell (14.6V); release 3.45 ± 0.01V per cell (13.8V)

Over-discharge protection: 2.70 ± 0.05V per cell (10.8V); release 3.00 ± 0.05V per cell (12.0V)

Over-current protection: Yes

Short-circuit protection: Yes

High and low temperature protection: Charge: low 0°C (release 5°C), high 55°C (release 50°C). Discharge: low -20°C (release -17°C), high 55°C (release 50°C)

Charging overcurrent protection: 400A protection current, 5,000ms delay, 350A release current

Discharging overcurrent protection: 550A protection current, 5,000ms delay

Short-circuit protection current: 1,200A

Internal fuse: 400A rated internal fuse; 1,200A transient overload for 3 seconds

Self-consumption: 20mA powered on; 200µA powered off

Internal fuse certification: UL 60691 certified internal fuse (TEX150-R1N-XBZ)

Cell certifications: UL1642 cells, UL9540A cells, IEC 62619:2022

Additional compliance: CE, RoHS

Shipping classification: UN 3480, Class 9

Warranty: 11-year limited manufacturer warranty; register within 90 days of purchase

In the Box

• 1 x Epoch 12V 460Ah V2 Elite Series LiFePO4 battery (C12460A)

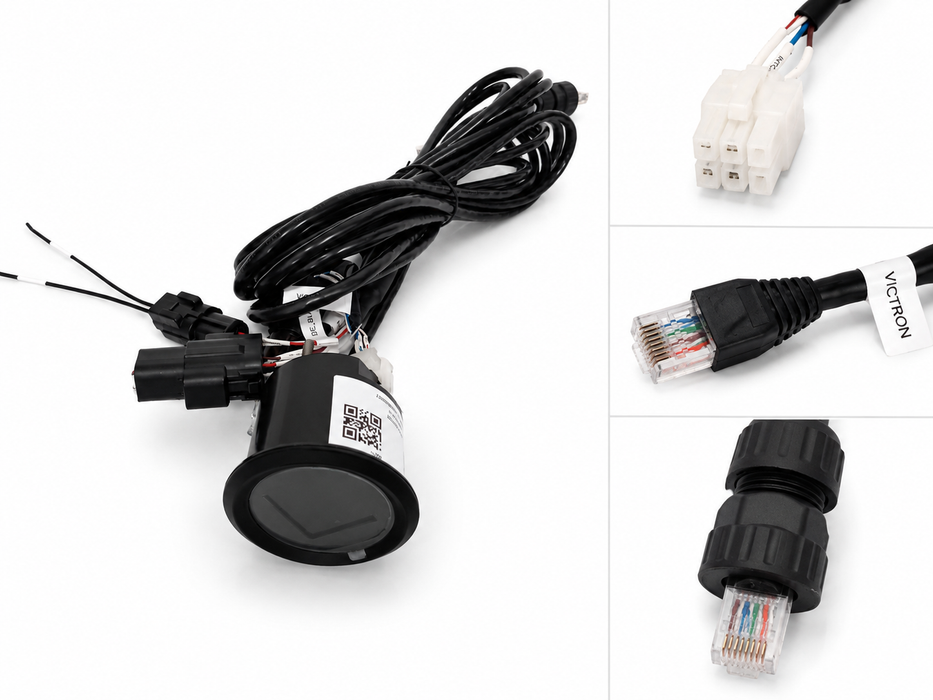

• 1 x Communication harness
• 1 x External power button

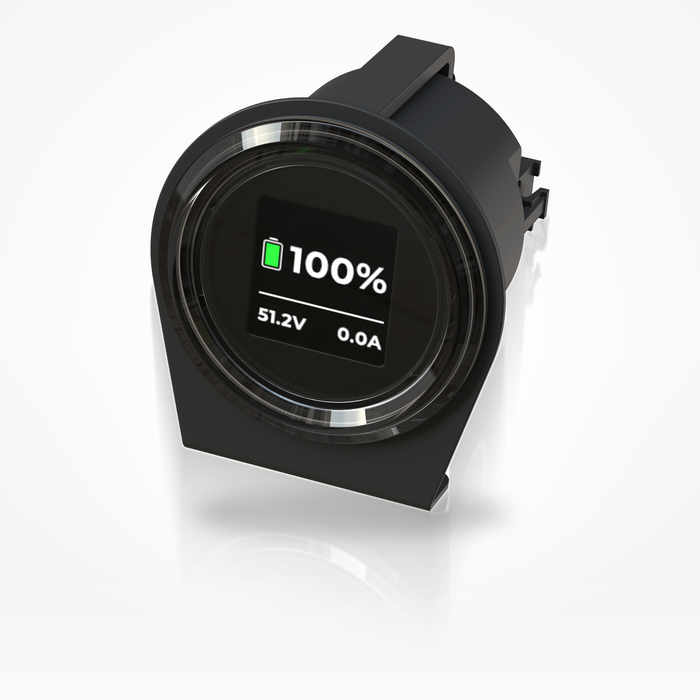

• 1 x Bluetooth battery gauge (state-of-charge meter)

C12460A Spec Sheet
C12460A User Manual
C12460A Technical Data Sheet
Internal Fuse - UL Listing
Epoch LiFePO4 Safety Data Sheet

Epoch Batteries Limited Warranty

Warranty Period
11-year limited manufacturer warranty; register within 90 days of purchase

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
