Epoch Batteries 12V 460Ah V2-T Elite Series C12460A-A | LiFePO4 Battery (5.89kWh) | 400A Class T Fuse, Heated, Bluetooth, IP67, Victron Can

Specifications

Model / SKU: C12460A-A

Series: V2-T Elite Series

Battery type: 12V heated Bluetooth LiFePO4 deep-cycle battery

Application focus: Marine, RV, solar, off-grid, backup, and stationary 12V deep-cycle power systems

Chemistry: LiFePO4 / lithium iron phosphate

Cell configuration: 4S2P

Bluetooth: Bluetooth 4.0 in the included State of Charge meter; Epoch Cloud app (iOS and Android)

CAN communication: CANbus 500kbit/s with Victron communication support

Victron integration: DVCC / distributed charge control through compatible GX devices

External controls: External power switch and State of Charge meter (with Bluetooth) included

Cycle life: >3,500 cycles to 70% capacity (25°C, 0.5C charge, 1C discharge, 70% DoD)

Nominal voltage: 12.8V

Nominal capacity: 460Ah

Energy capacity: 5.888kWh / 5.89kWh nominal

Maximum voltage: 14.52V

Minimum voltage: 10.4V

Shipped state of charge: 30% ± 3%

Internal resistance: ≤8mΩ

Self-discharge rate: ≤3% per month

Published continuous discharge: 230A @ 25°C

Published continuous charge: 210A @ 25°C

Peak discharge output: 500A for 30 seconds; 1,300A for 1 second

Integrated fuse: User-serviceable 400A Eaton Class T fuse

Internal fuse certification: UL60691 certified internal fuse

Parallel connections: Up to 16 batteries in parallel

Series connections: Up to 4 batteries in series (48V class)

Series-parallel configuration: Not supported

GX communication: Compatible GX devices via the BMS-CAN port (Cerbo GX, Ekrano GX) or VE.CAN 1/2 at 500 kbit/s (Cerbo GX MK2), with DVCC enabled

Recommended bank practice: Use only matched C12460A-A batteries of similar age, condition and firmware, all at the same state of charge

Charge temperature range: 0°C to 50°C / 32°F to 122°F, with internal heating support

Discharge temperature range: -20°C to 50°C / -4°F to 122°F

Storage temperature range, ≤1 month: -20°C to 45°C / -4°F to 113°F

Storage temperature range, ≤1 year: 0°C to 35°C / 32°F to 95°F

Charge low-temperature protection: 0°C (32°F); released at 5°C (41°F), with internal heating

Heater activation: Below 5°C (41°F), while charging (powered by the connected charger)

Heater deactivation: 10°C (50°F), while charging

Length: 20.86 in / 529.8 mm

Width: 8.65 in / 219.8 mm

Height: 12.06 in / 306.3 mm

Overall dimensions: 20.86 in L × 8.65 in W × 12.06 in H

Weight: 97.55 lb / 44.25 kg

Case material: PC + ABS, UL94 V-0

Terminals: M8 bolts

Terminal torque: 12 N·m / 8.85 lb-ft

Ingress protection: IP67 per IEC 60529: dust-tight and immersion-rated to ≤1m for ≤30 minutes, only with all seals, glands and port plugs installed

Absorption voltage: 14.2V

Absorption time: 15 minutes per battery

Float voltage: 13.5V

Equalization: Off / disabled

Temperature compensation: Disabled

Charge profile: CC/CV, no equalization

Victron systems: Use the communication harness, confirm battery visibility on the GX device, enable DVCC, and set the controlling BMS and battery monitor to Epoch

Cell certifications: UL1642 and IEC 62619:2022 certified cells

Other compliance: CE and RoHS

Warranty: 11-year limited manufacturer warranty

In the Box

• 1 x Epoch 12V 460Ah V2-T Elite Series LiFePO4 battery (C12460A-A)

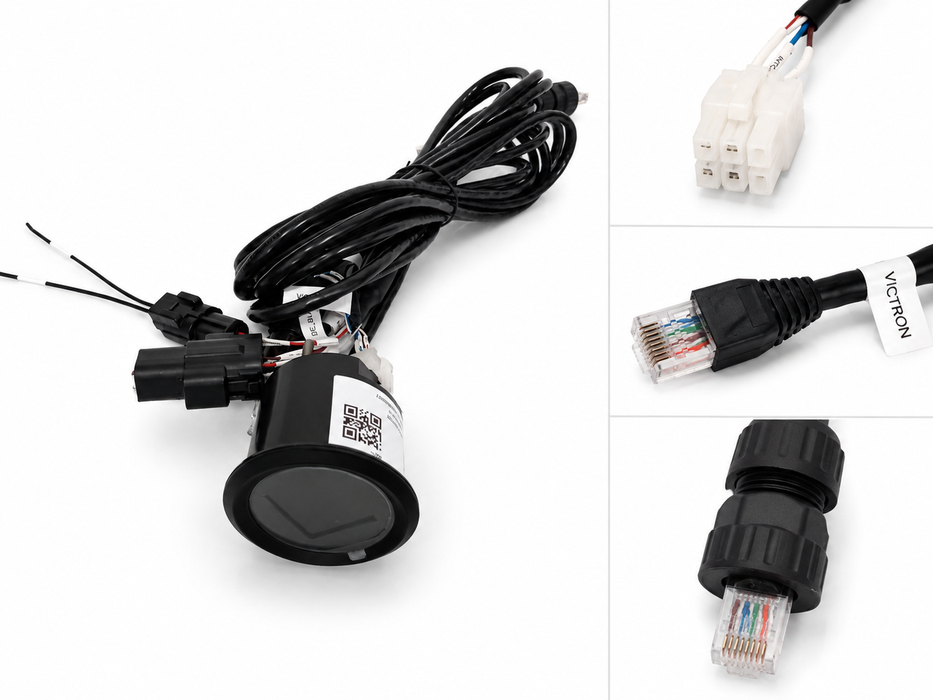

• 1 x Communication harness

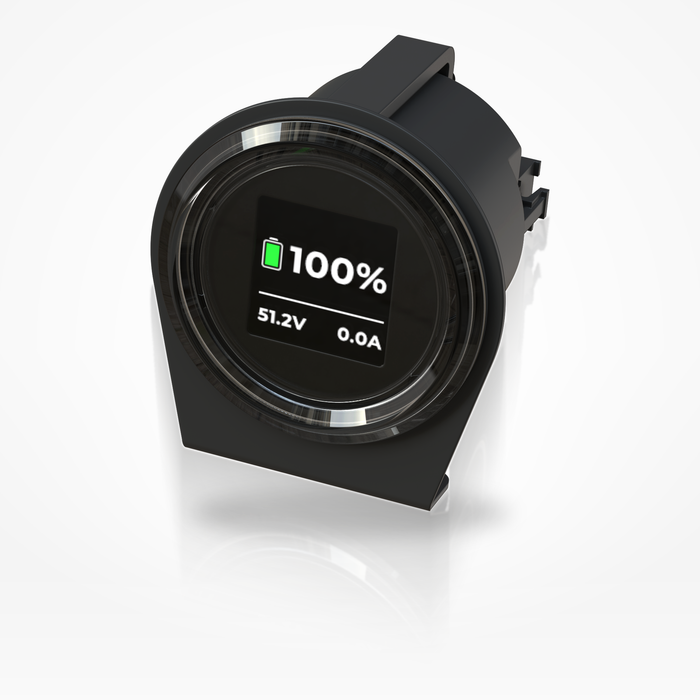

• 1 x State of Charge meter (with Bluetooth module)
• 1 x External power switch

C12460A-A Spec Sheet
C12460A-A User Manual
C12460A-A Technical Data Sheet
V2-T DIP Switch Guide
C12460A-A FCC Part 15B Report
Eaton Bussmann JJN-400 Fuse Declaration of Conformity
Internal Fuse - UL Listing
Epoch LiFePO4 Safety Data Sheet

Epoch Batteries Limited Warranty

Warranty Period
11-year limited manufacturer warranty

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.

Shipping is typically through freight carriers and the actual shipping time is contingent on your location and the specific warehouse dispatching your order. Please allow for a 1-3 business day processing period before shipment, and an estimated delivery time of up to 7 business days. Your confirmation email will include delivery details and we will send you a tracking number as soon as one is available. If you ordered several separate items, you may receive multiple tracking numbers. Once the item has been shipped, the freight service will contact you to coordinate the date and time of delivery. If you require any special accommodations during delivery please let us know as soon as possible and let the delivery company know when arranging the appointment.

Typically, orders will be dropped off either curbside or outside your front door or garage. It is your responsibility to bring the order inside or to its final destination and to remove any existing items.

Depending on the item, parts may be shipped in multiple boxes, and assembly may be required. When your order is delivered, please check that you have all pieces of the item and that nothing is damaged. If your order is damaged during transit and external damage is visible, note the damage immediately, write it on the delivery documents, take photos and/or videos, and refuse shipment. If there is no visible external damage, accept the package but note “subject to concealed damage” on the delivery documents. Any damage upon delivery needs to be reported within 24 hours of delivery or you may not be eligible for a refund. For additional information on submitting claims, as well as incorrect item exchanges, and replacements, please see our Refund Policy.

For more information about shipping, please visit our complete Shipping Policy.
