Epoch Batteries 48V 100Ah V2 Elite Series C48100A | LiFePO4 Battery (5.12kWh) | Heated, Bluetooth, Victron

Specifications

Dimensions (L x W x H): 20.86 x 8.65 x 12.06 in

Weight: 97 lb

Cell Configuration: 16S1P

Chemistry: LiFePO4

Voltage: 51.2V

Max Charge Voltage: 58.4V

Operating Voltage Range: 40.0V - 58.4V

Ah Capacity: 100Ah

Max Continuous Discharge Amps: 150A (up to 20 min at 150A; not for cycling)

Max Charge Current Amps: 100A (300A for up to 5 Seconds)

Max Discharge Peak Current Amps: 300A (up to 30 Seconds)

Series | Parallel: Max (16) in Parallel - 1S16P; series connection not supported

Charge Temp Range: -30°C (-22°F) / 55°C (131°F) ambient, with self-heating

Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) for up to 1 year; -20°C (-4°F) / 45°C (113°F) for up to 1 month

BMS Protection: Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

Model / SKU: C48100A

Energy Capacity: 5.12kWh / 5,120Wh

Minimum Voltage: 40.0V (2.5V per cell)

Self-Discharge: ≤3% per month (100% SOC, 25°C)

State of Charge at Shipment: 30% ± 3%; charge fully before first use

Theoretical Continuous DC Output: 51.2V × 150A = 7,680W DC, before inverter losses (up to 20 minutes)

Cell Charge Temperature Range: 0°C to 55°C / 32°F to 131°F

Case Height (body): 11.54 in / 293.0 mm

Terminal Spacing: 17.99 in / 457.0 mm, center to center

Case Material: ABS and PC blend (UL94 V-0)

Enclosure Protection: IP67: dust-tight; temporary immersion to 1 m for 30 minutes. Not rated for water jets, pressure washing or continuous submersion

Terminals: M8 threaded; 8–12 N·m (71–106 lbf·in)

Over-Current Protection: Charge 110A (release 90A) and discharge 350A, each after 5 seconds; short circuit 1,200A

Self-Consumption: 20mA powered on; 200µA powered off

Internal Fuse: 270A rated (UL 60691, TEX150-R1N-XBZ); 1,200A transient overload for 3 seconds

Bluetooth: Yes — Bluetooth 4.0 through the included battery gauge; Epoch Li-Ion app (iOS and Android)

Victron Communication: CAN bus at 500 kbit/s to compatible Victron GX devices (BMS-CAN or VE.Can port)

Cycle Life: 3,500+ cycles to 70% remaining capacity (25°C, 0.5C charge, 1C discharge)

Certifications: UL 1642, UL 9540A, IEC 62619:2022 (cells); CE, RoHS; UN 3480, Class 9

In the Box

• 48V 100Ah V2 Elite Series battery (C48100A)

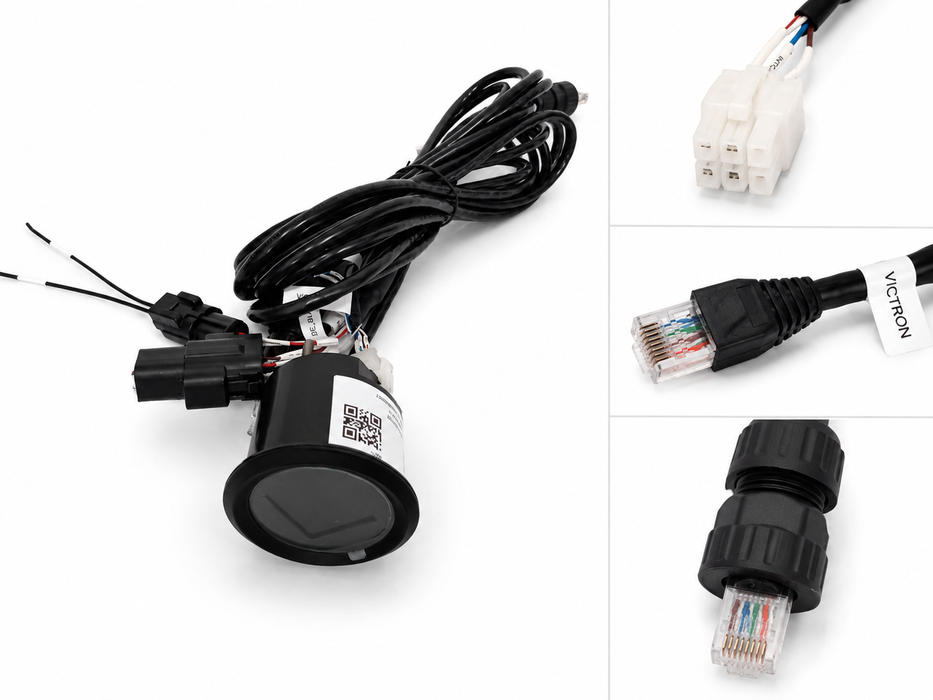

• Communication harness

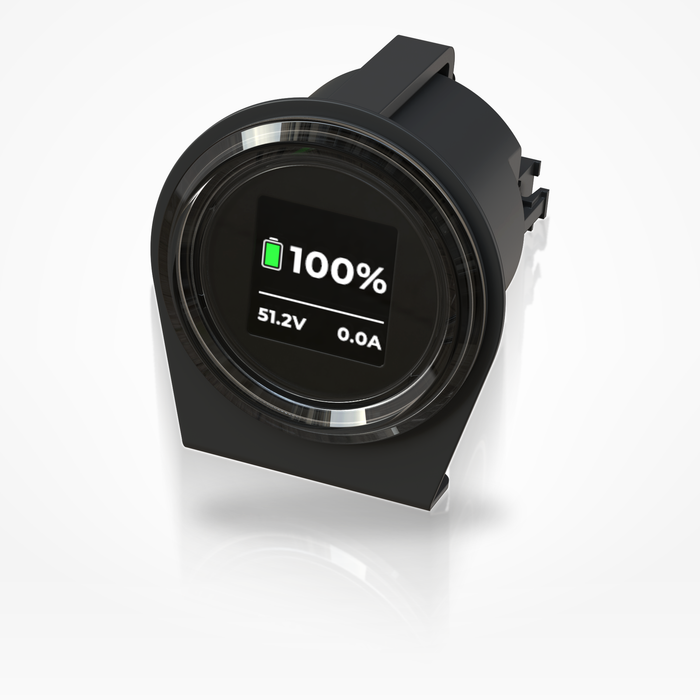

• Mountable battery gauge (Bluetooth)
• Mountable ON/OFF switch

C48100A Spec Sheet
C48100A User Manual
C48100A Technical Data Sheet
Internal Fuse UL Listing (TEX150-R1N-XBZ)

Epoch Batteries Limited Warranty

Warranty Period
11-year limited manufacturer warranty; register within 90 days of purchase

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
