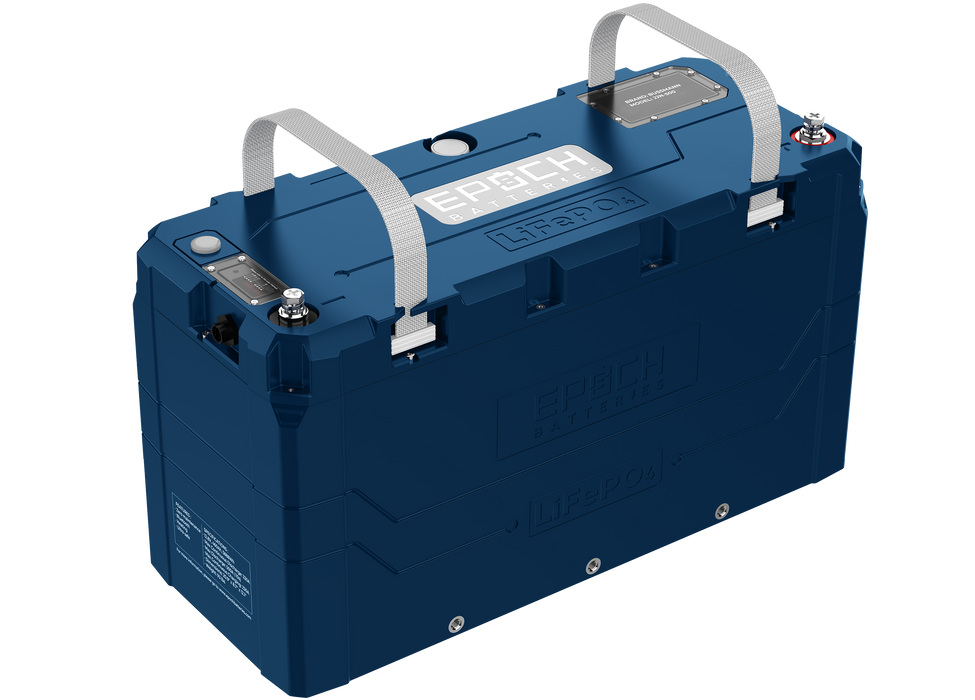

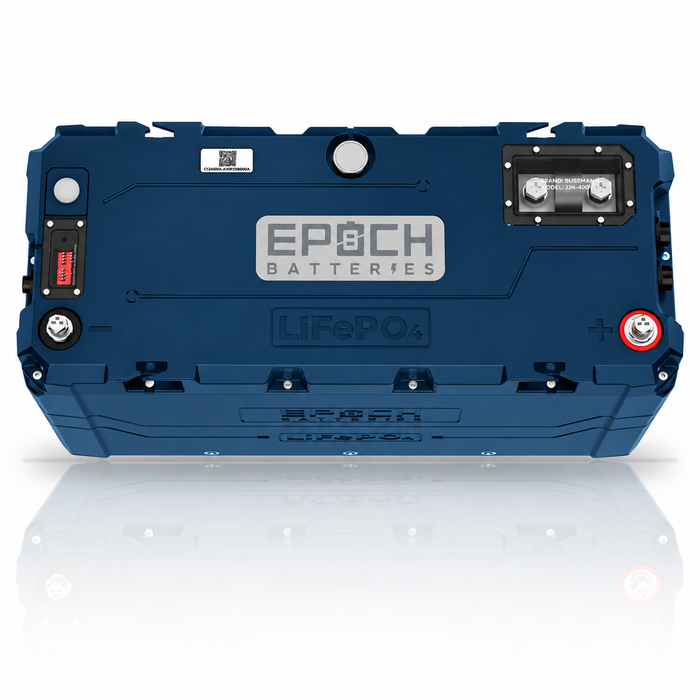

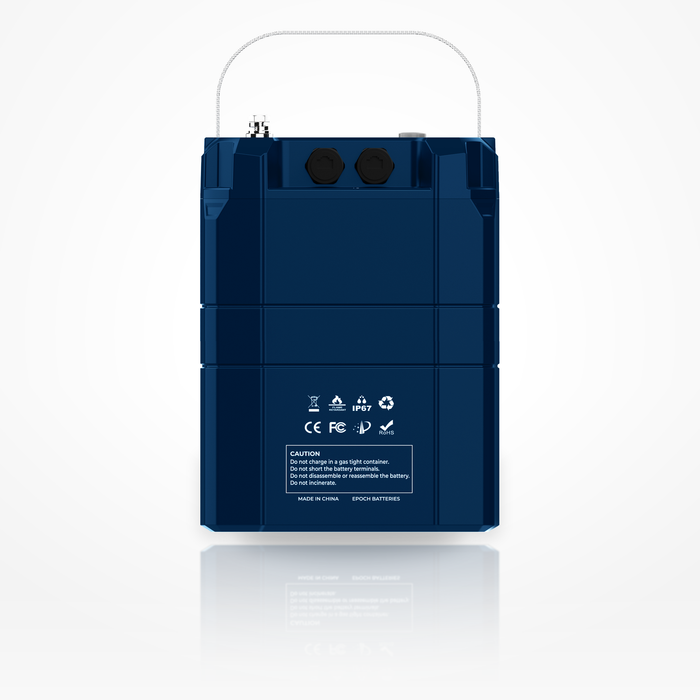

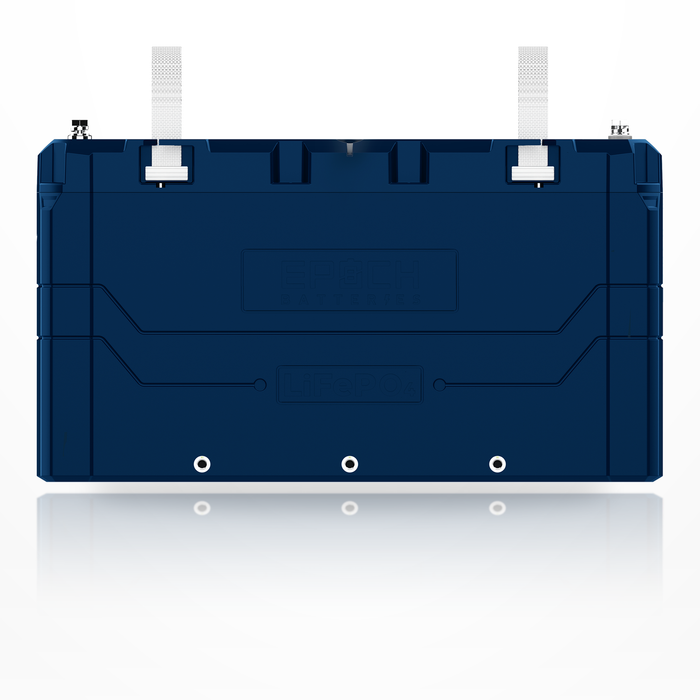

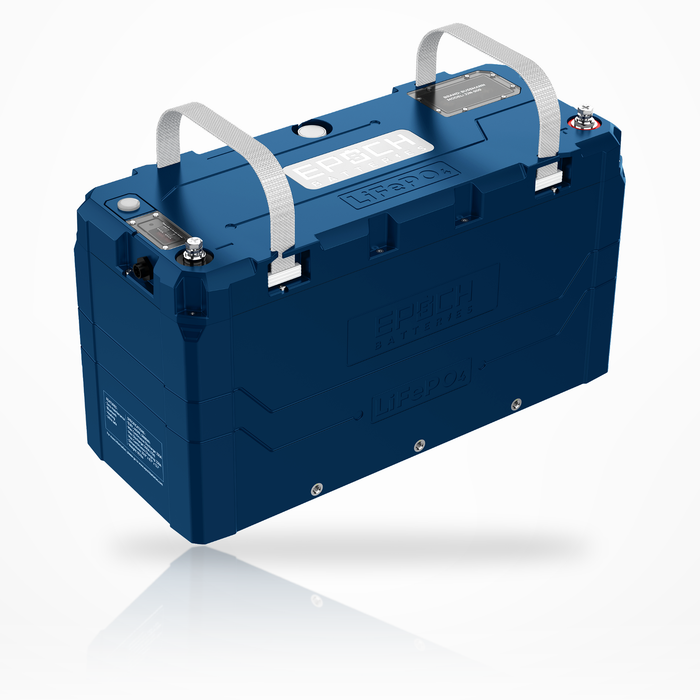

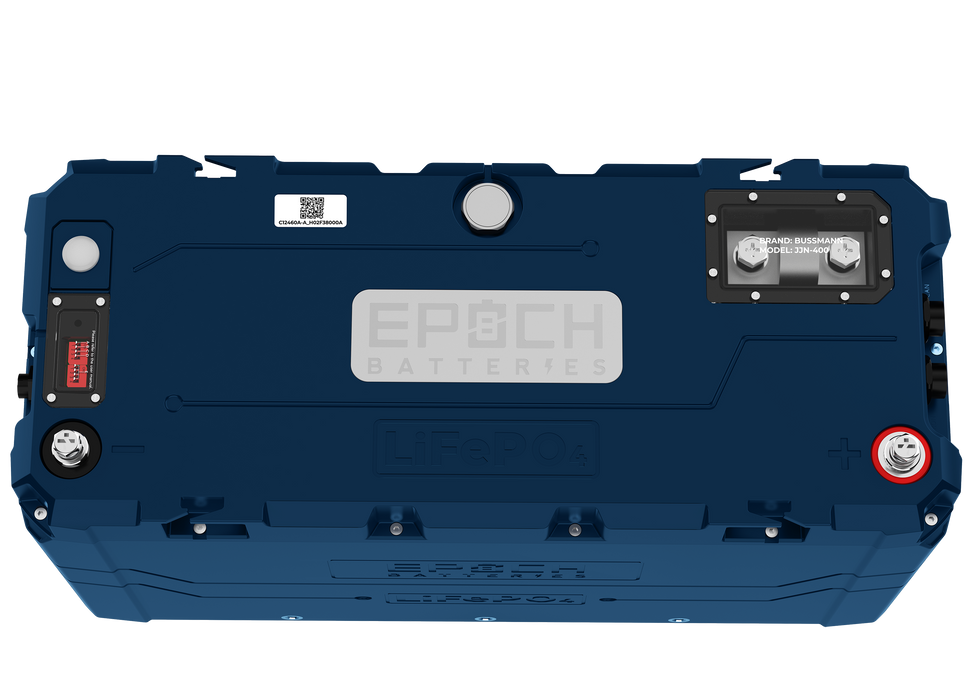

Epoch Batteries 48V 100Ah V2-T Elite Series C48100A-A | LiFePO4 Battery (5.12kWh) | Class T Fuse, Heated, Bluetooth, Victron

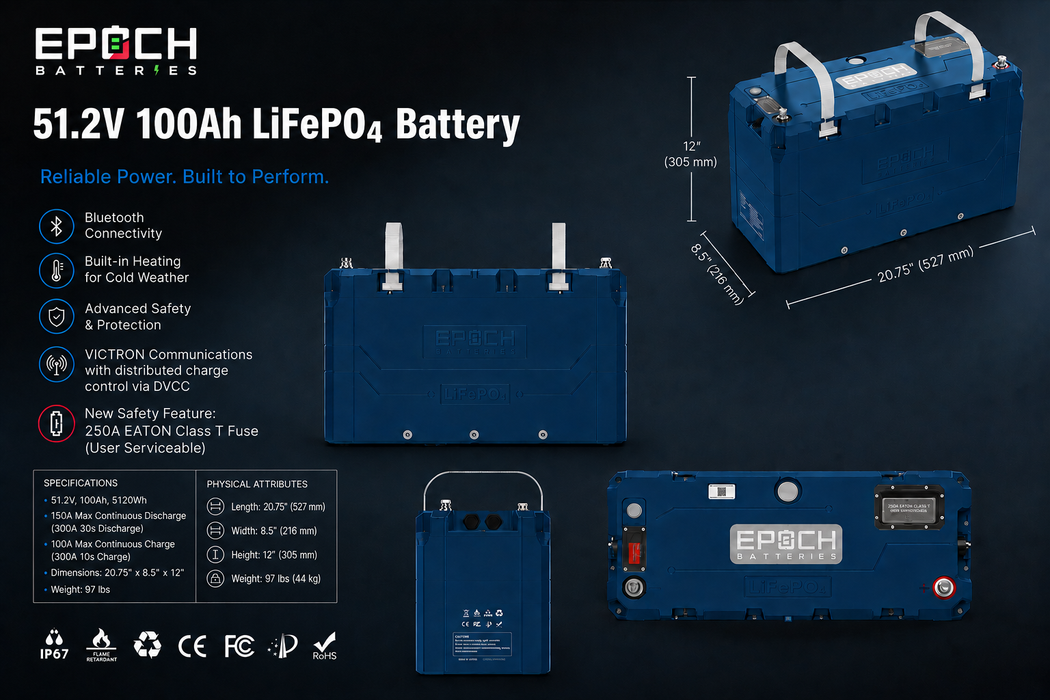

Specifications

Dimensions (L x W x H): 20.86 x 8.65 x 12.06 in

Weight: 97 lb

Cell Configuration: 16S1P

Chemistry: LiFePO4

Voltage: 51.2V

Max Charge Voltage: 58.0V

Operating Voltage Range: 41.6V - 58.0V

Ah Capacity: 100Ah

Max Continuous Discharge Amps: 150A

Max Charge Current Amps: 100A (300A for up to 10 Seconds)

Max Discharge Peak Current Amps: 300A (up to 30 Seconds)

Series | Parallel: Max (16) in Parallel - 1S16P; series and series-parallel not supported

Charge Temp Range: -30°C (-22°F) / 55°C (131°F) (ambient, with self-heating when charge current is available)

Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (up to 1 year); -20°C (-4°F) / 45°C (113°F) (up to 1 month)

BMS Protection: 250A Class T Fuse, Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

Model / SKU: C48100A-A

Stored Energy: 5.12kWh / 5,120Wh

Planning Energy: About 4,096Wh

Minimum Voltage: 41.6V

Approx. Continuous DC Output: Up to 7,680W nominal before inverter losses

Integrated Fuse: 250A Eaton Class-T fuse, user-serviceable

Standard Charge Temperature Range: 32°F to 131°F / 0°C to 55°C

Series-Parallel Configuration: Not supported

Case Material: PC + ABS, UL94 V-0

Terminal Type: M8 bolts

Terminal Torque: 12 N·m / 8.85 lb-ft; follow the product label and manual

Ingress Protection: IP67: dust-tight, temporary immersion to 1 m for 30 min with all seals and glands installed; not rated for water jets, pressure washing or continuous submersion

Bluetooth: Through the included battery gauge; Epoch Cloud app (iOS and Android)

Victron Communication: CANBus at 500 kbit/s with DVCC support

Cycle Life: 3,500+ cycles (to 70% capacity)

Certifications: UL 1642, UL 9540A, IEC 62619:2022 (cells); UL 60691 (internal fuse); UN 38.3

In the Box

• 48V 100Ah V2-T Elite Series battery (C48100A-A)

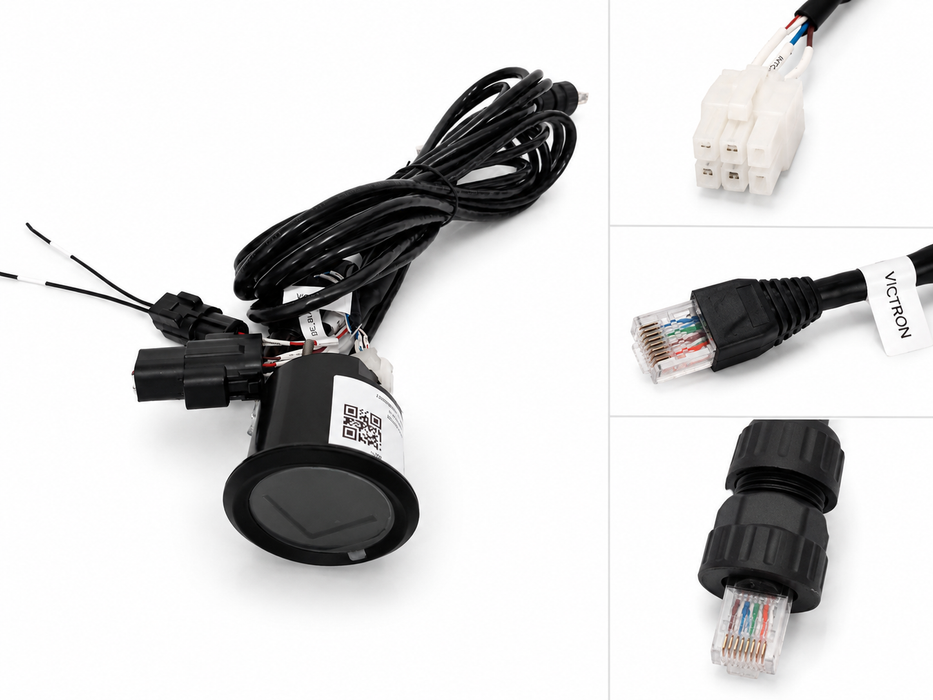

• Communication harness

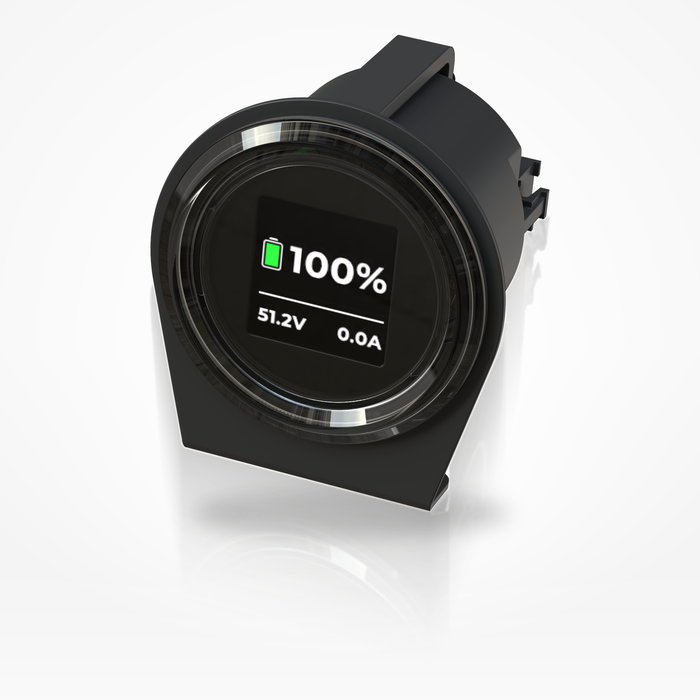

• Battery gauge (Bluetooth)
• Mountable external power button

C48100A-A Spec Sheet
C48100A-A User Manual
C48100A-A Technical Data Sheet
V2-T DIP Switch Guide

Epoch Batteries Limited Warranty

Warranty Period
11-year limited manufacturer warranty; register within 90 days of purchase

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
