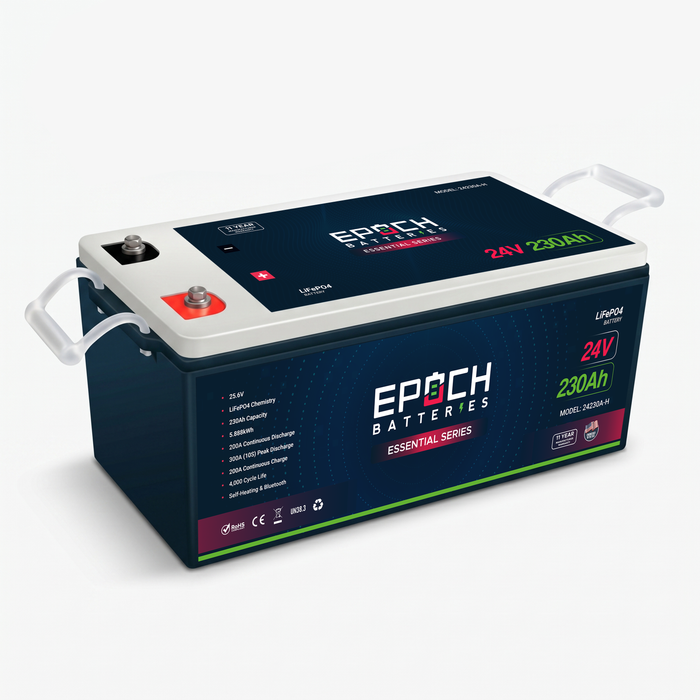

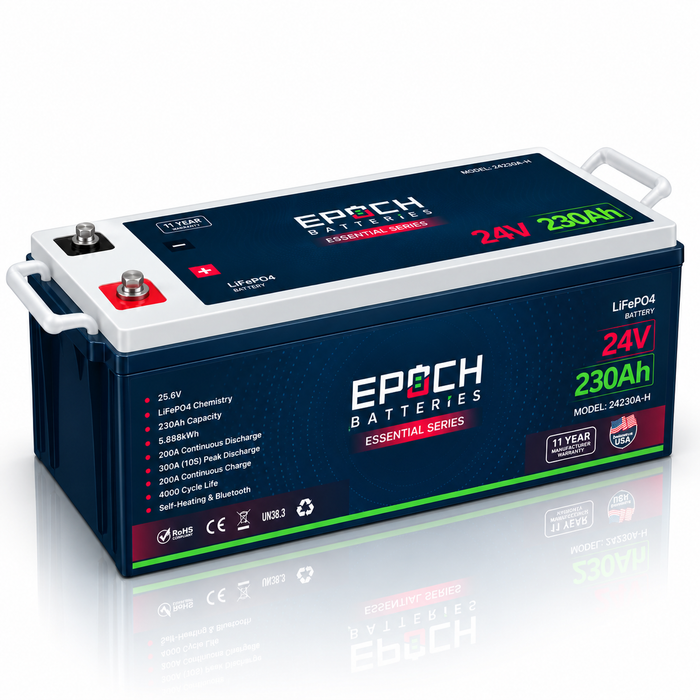

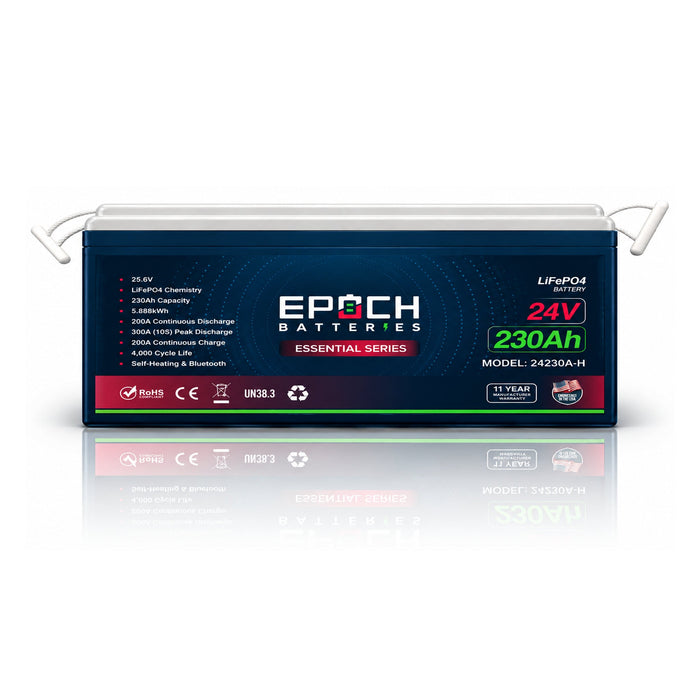

Epoch Batteries 24V 230Ah Essential Series 24230A-H | LiFePO4 Battery (5.89kWh) | Heated, Bluetooth

Specifications

Dimensions (L x W x H): 20.55 x 9.45 x 8.60 in

Weight: 84 lb

Cell Configuration: 8S1P

Chemistry: LiFePO4

Voltage: 25.6V

Max Charge Voltage: 29.2V

Operating Voltage Range: 20.0 - 29.2V

Ah Capacity: 230Ah

Max Continuous Discharge Amps: 200A

Max Charge Current Amps: 200A

Max Discharge Peak Current Amps: 300A (up to 10 Seconds)

Series | Parallel: Series: not approved; Parallel: up to (4) in planning examples, confirm the maximum with Epoch

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with self-heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F)

BMS Protection: Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

Model / SKU: 24230A-H

Group Size: BCI Group 8D

Stored Energy: 5.89kWh / 5,888Wh

Recommended Charge / Discharge Current: 115A (0.5C)

Current Sensing: BMS-integrated shunt; 0.2A accuracy on discharge

Heating System: Tested to -20°C / -4°F; rated for external ambient down to -40°C / -40°F

Terminal Type: M8 female

Terminal Torque: 8–12 N·m (71–106 in-lb)

Case Material: Battery-grade ABS/PC housing

Enclosure Rating: IP54 per IEC 60529 — dust-protected and splash-resistant; not submersible

Label Markings: CE; RoHS; UN 38.3

Cycle Life: 4,000+ cycles

24230A-H Technical Data Sheet

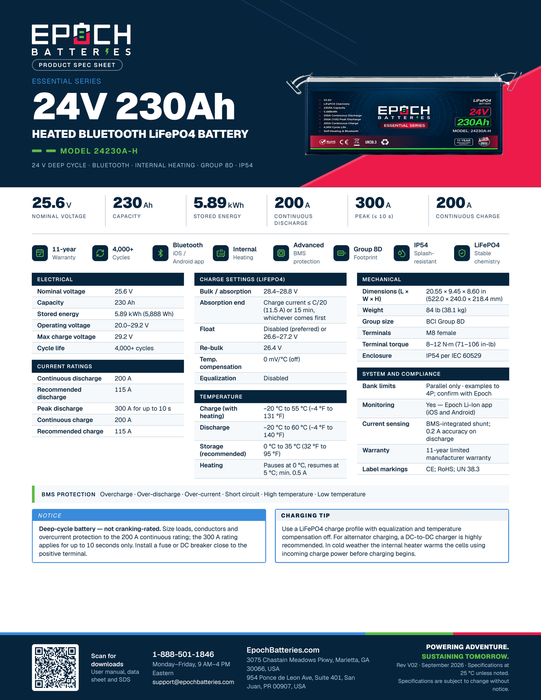

24230A-H Quick Spec Sheet
24230A-H User Manual

Epoch Batteries Limited Warranty

Warranty Period
11-year limited manufacturer warranty

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
