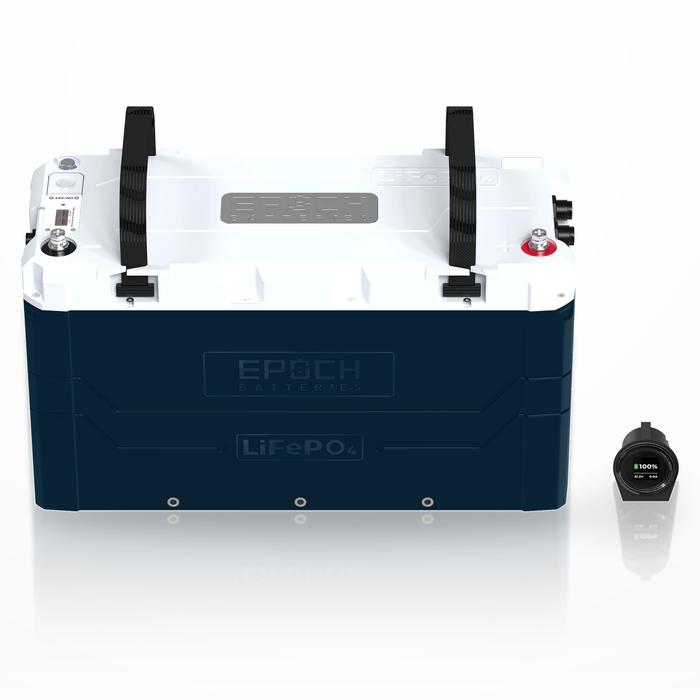

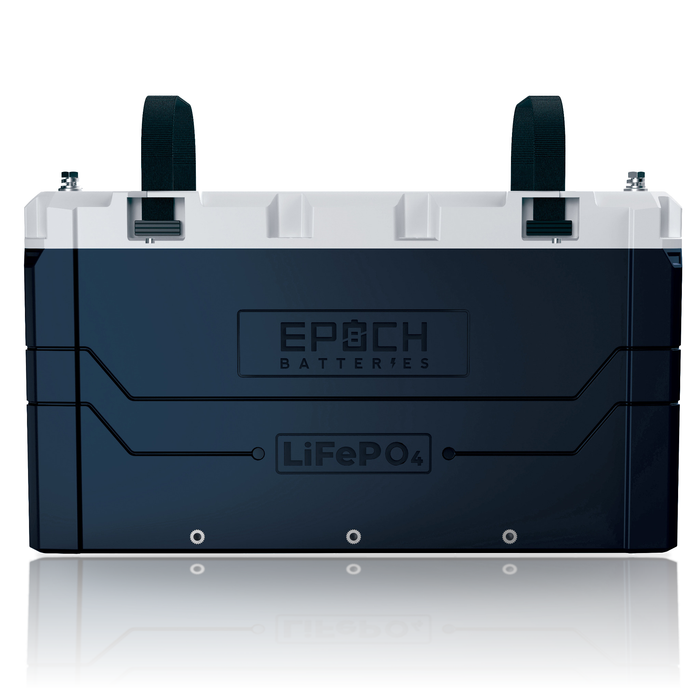

Epoch Batteries 24V 230Ah V2 Elite Series C24230A | LiFePO4 Battery (5.89kWh) | Heated, Bluetooth, Victron

Specifications

Dimensions (L x W x H): 20.86 x 8.65 x 12.06 in

Weight: 97 lb

Cell Configuration: 8S1P

Chemistry: LiFePO4

Voltage: 25.6V

Max Charge Voltage: 29.2V

Operating Voltage Range: 20.0 - 29.2V

Ah Capacity: 230Ah

Max Continuous Discharge Amps: 110A

Max Charge Current Amps: 110A (200A for short durations)

Max Discharge Peak Current Amps: 300A (short duration)

Series | Parallel: Max (2) in Series OR Max (16) in Parallel - 2S1P or 1S16P

Charge Temp Range: -30°C (-22°F) / 55°C (131°F) ambient, with self-heating

Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) for up to 1 year; -20°C (-4°F) / 45°C (113°F) for up to 1 month

BMS Protection: Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

Model / SKU: C24230A

Stored Energy: 5,888Wh / 5.89kWh

Cell Type: Prismatic LiFePO4

Minimum Voltage: 20.0V (2.5V per cell)

Self-Discharge: ≤3% per month

Nominal Continuous Output Power: Approx. 2,816W DC at 25.6V nominal voltage, before inverter losses

Cell Charge Temperature Range: 0°C to 55°C / 32°F to 131°F

Case Material: ABS and PC blend

Case Flame Rating: UL94 V-0

Enclosure Protection: IP67: dust-tight; temporary immersion to 1 m for 30 minutes. Not rated for water jets, pressure washing or continuous submersion

Terminal Size: M8 threaded

Terminal Torque: 8–12 N·m (71–106 lbf·in)

Internal Fuse: 270A rated (UL 60691); 1,200A transient overload for 3 seconds

Self-Consumption: 20mA powered on; 200µA powered off

Bluetooth: Yes — through the included battery gauge; Epoch Li-Ion app (iOS and Android)

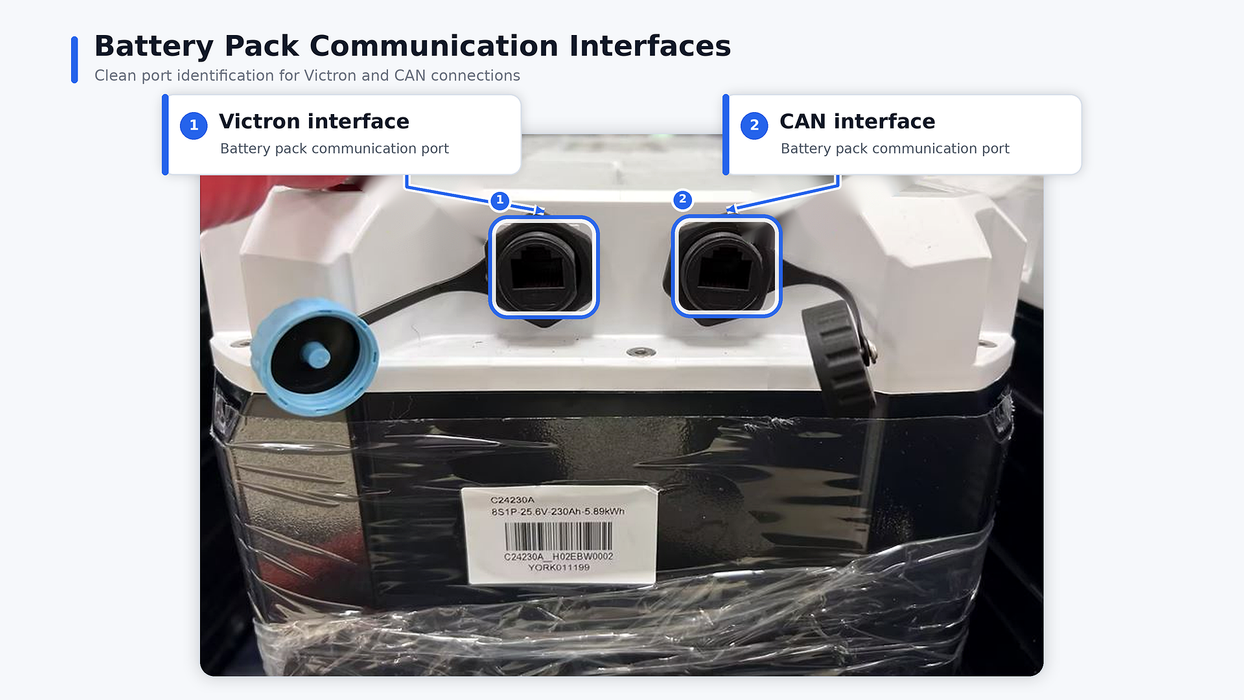

Victron Communications: CAN bus at 500 kbit/s to compatible Victron GX devices (BMS-CAN or VE.Can port)

Cycle Life: 3,500+ cycles to 70% remaining capacity

Certifications: UL 1642, UL 9540A and IEC 62619:2022 cells; UL 60691 internal fuse (TEX150-R1N-XBZ); CE, RoHS

Shipping Classification: UN 3480, Class 9

In the Box

• 24V 230Ah V2 Elite Series battery (C24230A)

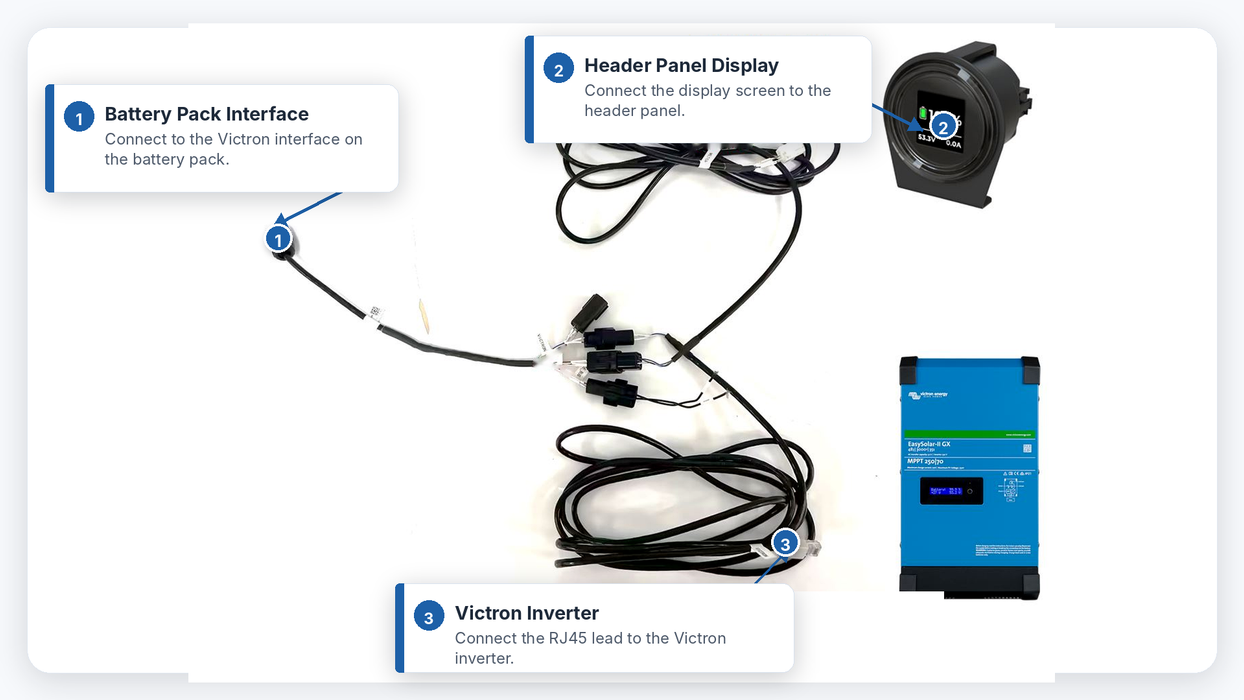

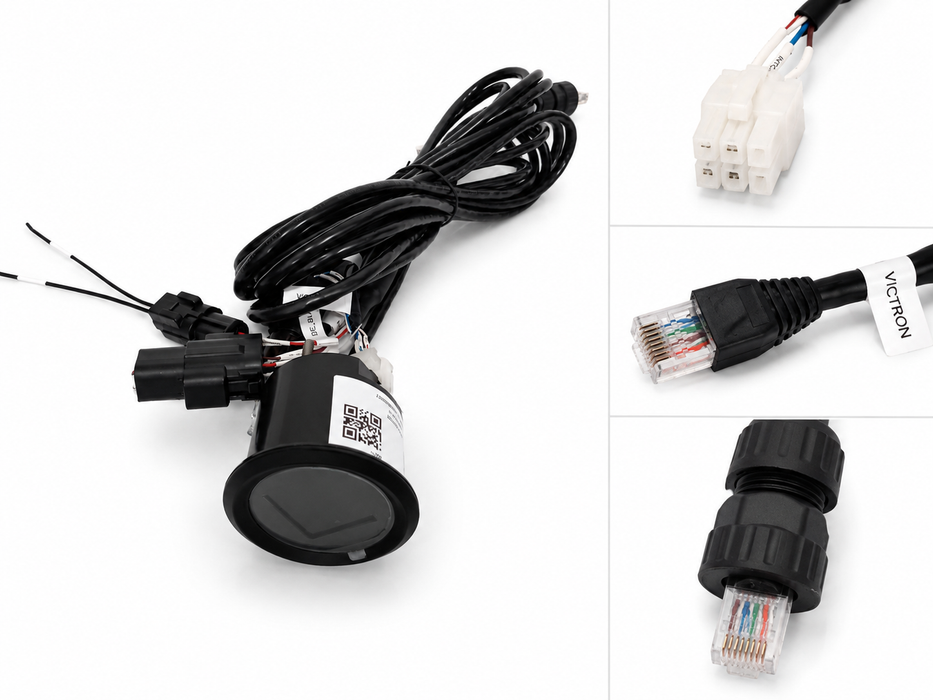

• Communication harness

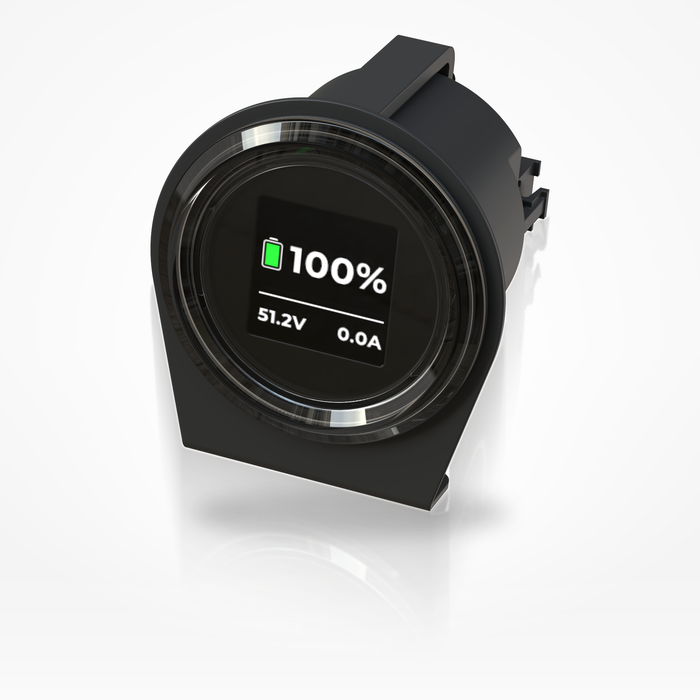

• Mountable battery gauge (Bluetooth)
• Mountable ON/OFF switch

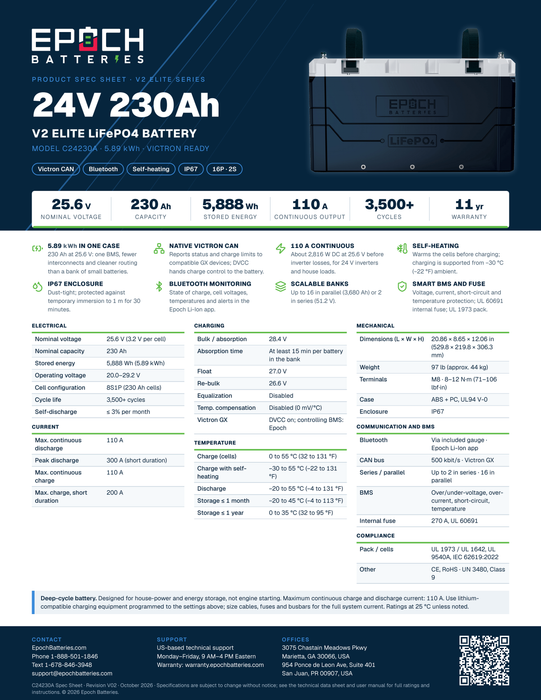

C24230A Spec Sheet
