Epoch Batteries 24V 230Ah V2-T Elite Series C24230A-A | LiFePO4 Battery (5.89kWh) | Class T Fuse, Heated, Bluetooth, Victron

Specifications

Dimensions (L x W x H): 20.86 x 8.65 x 12.06 in

Weight: 98.9 lb

Cell Configuration: 8S1P

Chemistry: LiFePO4

Voltage: 25.6V

Max Charge Voltage: 29.0V

Operating Voltage Range: 20.8 - 29.0V

Ah Capacity: 230Ah

Max Continuous Discharge Amps: 115A @ 25°C

Max Charge Current Amps: 115A @ 25°C (180A for 5 Seconds)

Max Discharge Peak Current Amps: 250A (5 Seconds)

Series | Parallel: Max (2) in Series OR Max (16) in Parallel

Charge Temp Range: 0°C (32°F) / 50°C (122°F) (with heating support)

Discharge Temp Range: -20°C (-4°F) / 50°C (122°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (up to 1 year); -20°C (-4°F) / 45°C (113°F) (up to 1 month)

BMS Protection: 300A Class T Fuse, Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

Model / SKU: C24230A-A

Stored Energy: 5.888kWh / approximately 5.89kWh

Planning Energy: About 4,710Wh

Internal Resistance: ≤16mΩ

Self-Discharge Rate: ≤3% per month

Nominal Continuous DC Output: Approximately 2,944W at 25.6V before inverter losses

Fuse Model: Eaton JJN-300 Class T, user-serviceable

Fuse Rating: 300A; 20kAIC at 160VDC; 300VAC / 160VDC

Mixed Series-Parallel: Not supported

Battery Communication: Bluetooth 4.0 and CAN-bus 500kbit/s

Network Layout: Daisy-chain; no branches or tee connections

Heater Power: 153.6W

Heater Activation / Deactivation (charging): 5°C / 10°C

Charge Overcurrent Protection: 180A ±2A with 5-second delay

Discharge Overcurrent Protection: 250A ±2A with 5-second delay

Case Material: PC + ABS, UL94 V-0

Terminals: M8 bolts

Terminal Torque: 12N·m / 8.85lb-ft

Cooling: Passive convection

Ingress Protection: IP67; dust-tight and temporary immersion ≤1m for ≤30 minutes with all seals/glands installed

Cycle Life: 3,500+ cycles to 70% end-of-life capacity (25°C)

Certifications: UL1642, UL9540A, IEC 62619:2022 (cells); UL 60691 (fuse component); CE, RoHS

Shipping Classification: UN 3480, Class 9

In the Box

• 24V 230Ah V2-T Elite Series battery (C24230A-A)

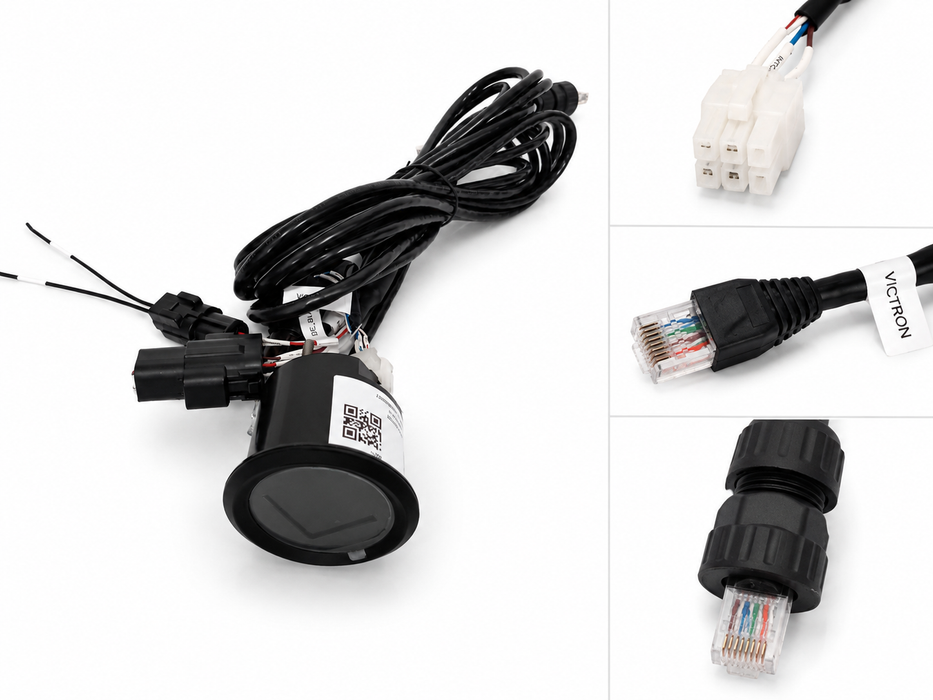

• Epoch/Victron communication harness

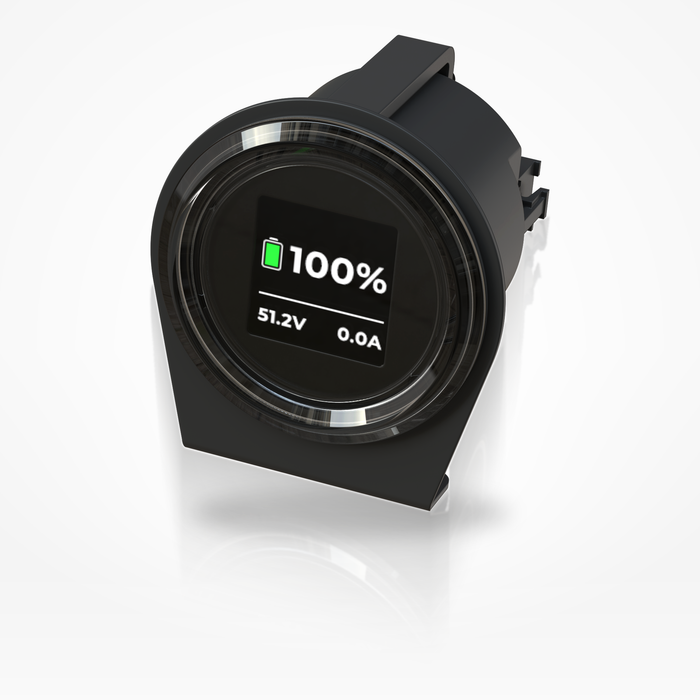

• Remote digital battery gauge
• External mountable power button

C24230A-A Spec Sheet
C24230A-A User Manual
C24230A-A Technical Data Sheet
V2-T DIP Switch Guide

Epoch Batteries Limited Warranty

Warranty Period
11-year limited manufacturer warranty; register within 90 days of purchase

Epoch Batteries-branded products are covered against qualifying defects in materials and workmanship for the applicable warranty period, subject to Epoch's model-specific remedy schedule and the terms of its warranty policy. Epoch-branded chargers carry a 2-year limited warranty and accessories (such as fuel gauges and voltage reducers) a 1-year limited warranty, from the original purchase date.

Registration
Register your battery with Epoch within 90 days of purchase for full warranty coverage. If it is not registered within that time, the warranty period begins from the battery's original manufacturing date. Proof of ownership is required for any claim, and coverage is non-transferable and applies only to the original purchaser.

Remedy
After inspection and testing, Epoch will provide the applicable remedy for a qualifying manufacturing defect: an approved repair, a replacement, or a comparable-product offer according to the model's schedule. Typical repair turnaround is 3–10 business days once the product is received.

Exclusions
Coverage may be denied when a failure is caused by misuse, improper handling, installation or storage, or use outside the product's specifications. Examples include an unsecured battery; loose, corroded or improperly connected terminals; series or parallel connections beyond the manufacturer's recommendations; reverse polarity or short circuits; impact, fire or water submersion; storage above 140°F or below -40°F; prolonged storage fully discharged or batteries left uncharged for more than three months; poor crimps, undersized cables or damaged wiring; opened, modified or tampered products; and use in applications the battery was not designed for, including repeated engine starting on non-cranking models.

Obtaining Warranty Service
Start a claim through the Epoch Batteries Warranty Portal with your model and serial number, proof of purchase, a description of the issue and supporting photos or videos. If approved, Epoch provides an RMA number and packing instructions. Do not ship a product without a valid RMA. The customer arranges and pays for shipment to Epoch, packaged in compliance with lithium battery shipping rules. Epoch Batteries can be reached at 1-888-501-1846 or support@epochbatteries.com.

Visit Epoch's Warranty Page to review the full warranty terms.
